LTE Cat-1 Remote Engine Off Wired mini Motorcycle GPS Tracker 4G FCC
Price:
Negotiable
MOQ:
2pieces
Delivery Time:
10-20days
Brand:
Kingwo
Product Description
4G LTE Cat -1 remote engine off wired gps tracker geo - fence for motorcycle

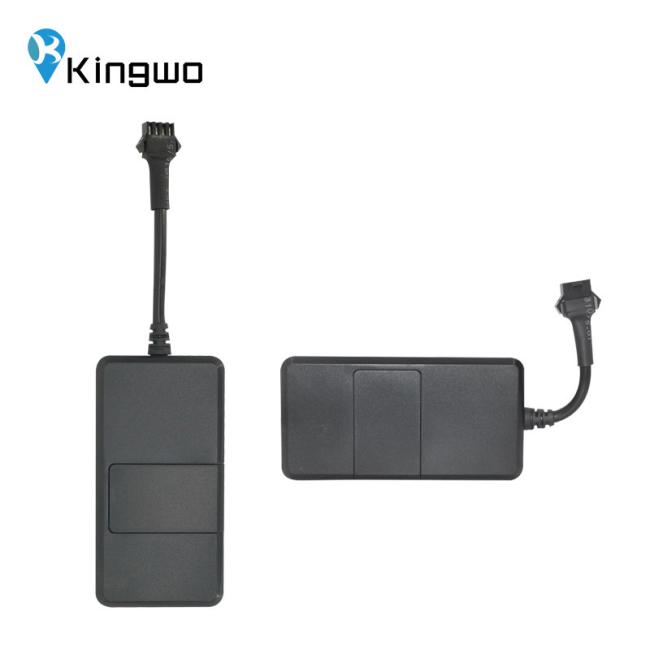

LT01 is a 4G GPS Tracker working based on GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets with built-in antennas by SMS or GPRS.With its compact design, the device can easily connect with car battery to acquire real time data, such as car position, ignition status, speed data, also can remotely disable the engine to stop car. And all these information will be upload via GPRS to server for further analysis, statistics, storage and more extensive application.
Highlights
|
Wide range voltage input range: DC 9-100V |
Supports GPS/LBS /AGPS positioning |
| Ignition detecting | Built in G-sensor |
| OTA updating | Built in 60mAH battery |
|
Dual IP supported |
Remote Control |
Function
- Real-time tracking monitoring, Real-time GPS tracking, History playback, Blind data storage, Cornering compensation
- Track according to time, distance and speed
- Accuracy positioning method
- Multiple alarm like overspeed,towing,tamper,power off
- Towing alarm
- Cut off engine
- Mileage calculation
Specification
| Physical | Dimension | 88mm*45mm*14mm(L*W*H) |
| Weight | 47±5g | |
| Cellular | Lte module | Fibcom L610 |
| Frequency |
Working frequency: 4G networks:TDD LTE/FDD LTE 3G networks:WCDMA 2G networks:GSM/GPRS Network |
|
| GPS |
Position accuracy:5-10m Accuracy: 5m CEP |
|
| Power | Input voltage | 9-100V |
| Battery | NI-MH AAA 3.6V/60mA, 2 hours working time based on 2-3 minutes upload | |
| Power consumption |
Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
|
| Interface | Digital input(1) | Ignition detect |
| Digital output(1) | Relay | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | Green: GPS, Red: GSM | |
| Protocol type | UDP/TCP | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65 | |
4G version for different countries:
| Regions | Frequencies |
| China/India |
TDD LTE:B38/B39/B40/B41 FDD LTE:B1/B3/B5/B8 WCDMA:B1/B8 GSM:900/1800MHz |
| Europe/Middle East/Africa |
TDD LTE:B38/B40/B41 FDD LTE:B1/B3/B5/B7/B8/B20 WCDMA:B1/B5/B8 GSM:B3/B8 |
| North America |
FDD LTE:B2/B4/B5/B12/B13/B14 WCDMA:B2/B4/B5 |
| Australia/Taiwan/Brazil |
FDD LTE:B1/B3/B4/B5/B7/B8/B28 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 |
