Battery Powered 4G Two Wheeler Gps Tracker SOS Alarm Wired Gps Car Tracker
4G Wired Built In Battery support Tamper SOS Alarm Vehicle Motorcycle GPS Tracker

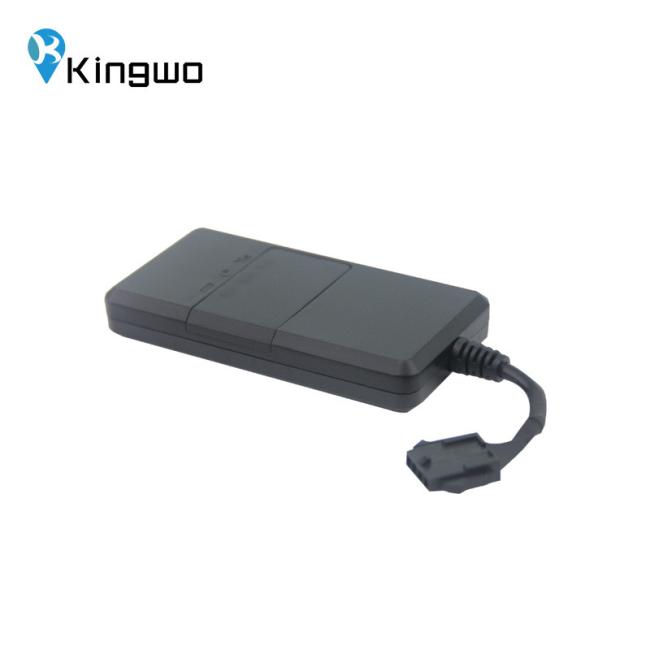

LT01A is focus on Asia bands,which support lower cost and prefect preformance.It is designed for motorcycles, cars, vehicles and scooters, the device itself supports 9-100 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect.
Specification
| Physical | Dimension | 88mm*45mm*14mm(L*W*H) |
| Weight | 47±5g | |
| Cellular | Lte module | Fibcom L610 |
| Frequency |
Working frequency: •LTE FDD: Band 1/3/5/8 • LTE TDD: Band 34/38/39/40/41 • GSM: 900/1800MHz • LCC 31x28x2.4mm • Operating Temperature: -40℃~+85℃ • Operating Voltage: 3.3V~4.3V typical 3.8V |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Power | Input voltage | 9-100V |
| Battery | NI-MH AAA 3.6V/110mA, 2 hours working time based on 2-3 minutes upload | |
| Power consumption |
Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
|
| Interface | Digital input(1) | Ignition detect |
| Digital output(1) | Relay | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: 4G | |
| Memory | 1300 pcs | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65 | |
Product Functions:
1. Real-time Tracking
update position every 10 seconds with continuous tracking.
2. Fast Positioning
provide a timely positioning service after installing it.
3. Trace Playback
check the history trace of your vehicle to help you find useful information.
4. Mileage Report
it can help you to know how far you drive.
5. Over-speed Alarm
when your speed is over what you set, it will send alarm to remind you keep safe.
6. Geo-fence Alarm
users can set a range of geo-fence on map with circle, polygon or customize shape, and it will alarm when the device gets in or
out of presetting range via APP or SMS.
7. Remotely Cut-off Petrol/Electricity
remotely control vehicle engine via platform, app or sms to avoid someone driving the vehicle illegally.
8. Platform/APP/SMS Checking
various methods like platform, app, sms to check asset status.
