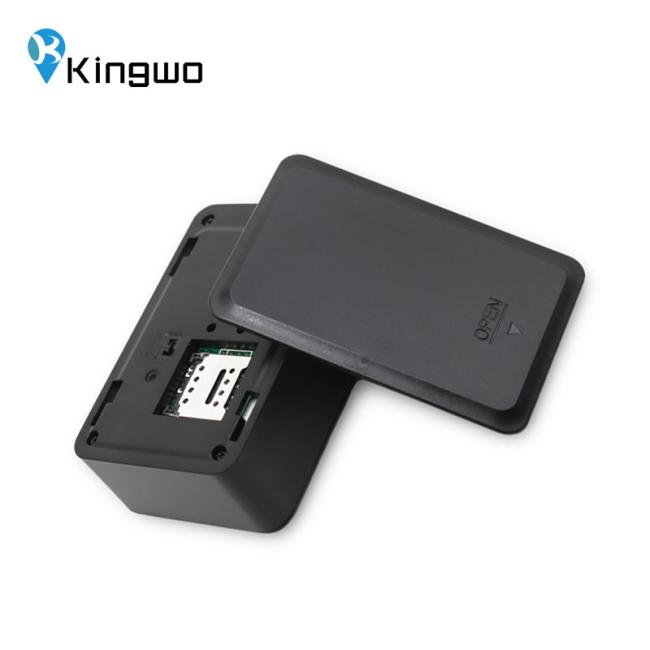

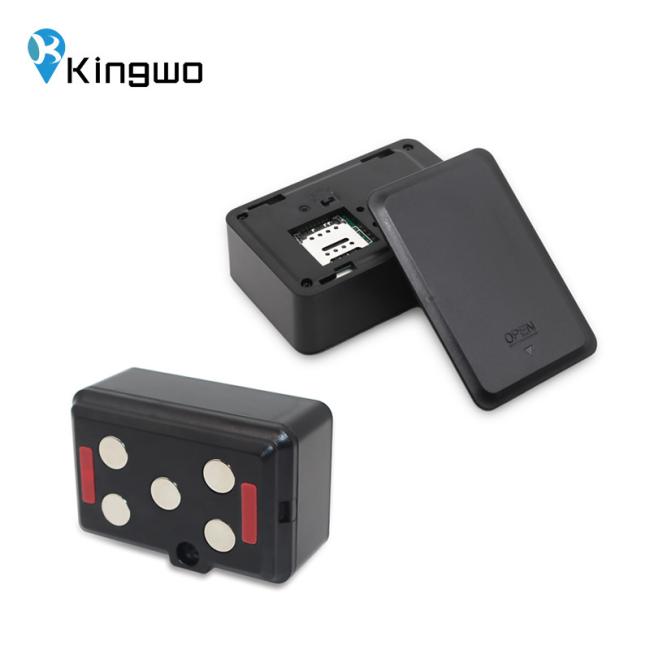

Blind Compensation Wheelie Bin GPS Tracker High Sensitivity Long Lasting 8100mAh
wheelie bin GPS tracker asset tracker blind compensation high sensitivity GPS hot sales GPS tracker
Kingwo has very experienced R&D software and hardware team with a number of R&D design patents, the Beidou/GPS products that are provided by our company has been widely used in logistics, taxi, public transportation, banking, postal service, military police.
1. High sensitivity GPS
2. Asset position and monitor
3. Blind compensation
4. GPS ,AGPS, LBS
5. 2G/3G/4G
| Physical | Dimension | 81mm*51mm*31mm(L*W*H) |
| Weight | 161±5g | |
| Cellular | Module | Quectel EC25 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85E protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | MicroSIM | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65(optional IP67) | |
