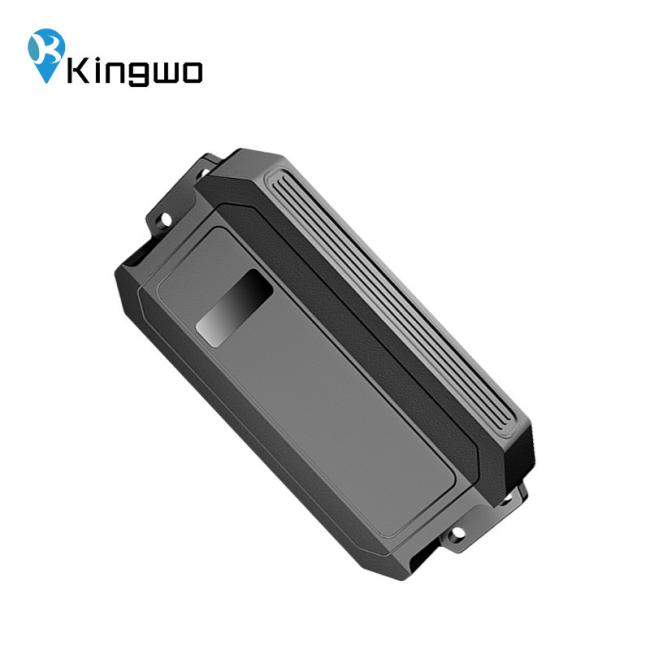

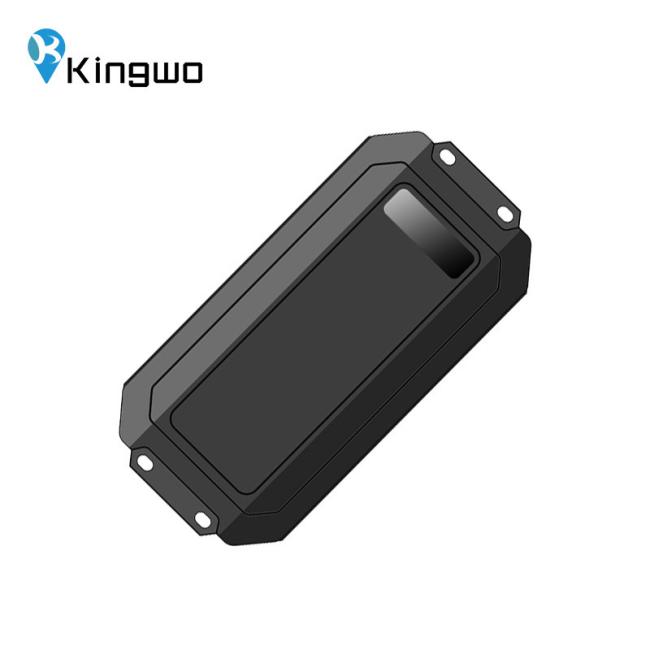

Global Bluetooth 4g Vehicle Excavator GPS Tracker Trail Tracking Remote Setting
NT08G AGPS global GPS hot sales GPS position device trail tracking remote setting ultra battery
In recent years, with the rapid development of the auto finance in domestic market, Kingwo has become a mainstream supplier of automotive financial risky control which based on Bediou/GPS technology, as “internet +expert of auto financial risky control products”, Kingwo has won good reputation and the market share has increased by 100% every year for three consecutive years
1. Temperature monitor
2. GPS AGPS LBS
3. Trail tracking
4. Remote setting
5. Removal alarm
| Physical | Dimension | 154X82X30mm(L*W*H) |
| Weight | 350±5g | |
| Cellular | Communication module | Quectel BG95 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85 • EGPRS: 850/900/1800/1900MHz protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | STM32G070CB | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Bluetooth | Bluetooth 5.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,20000mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <15uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure) | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
