B Mode Medical Ultrasound Machine Ecografo MSU3 Veterinary Ultrasound

Price Negotiable

Price: 1

MOQ: 2

Delivery Time: 7

Brand: GH

Product Description

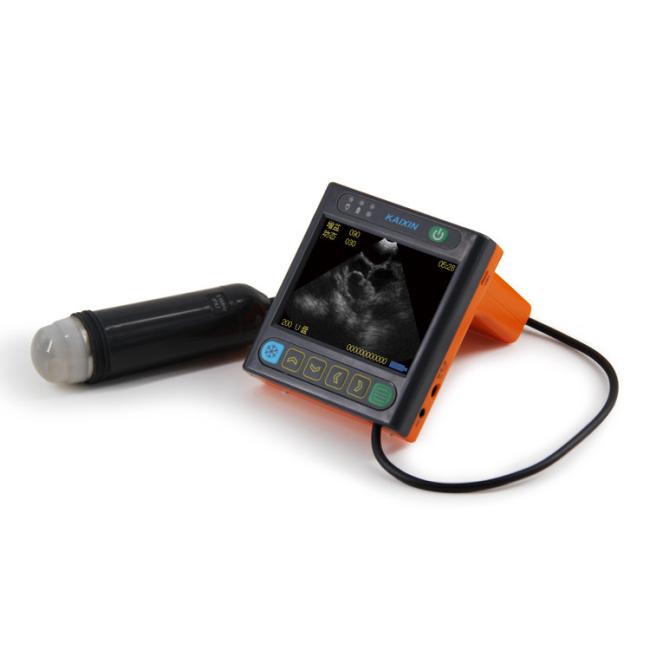

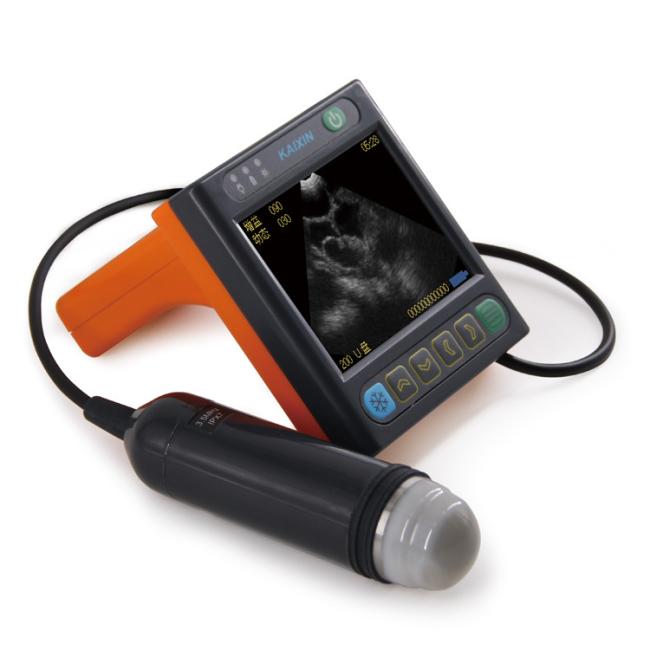

Full digital B mode ultrasonic diagnostic instruments MSU3 veterinary ultrasound

Overview

Quick Details

Place of Origin:: China

Brand Name:: GH

Model Number:: GHMSU3

Power Source:: Electric

Warranty:: 1 Year

After-sale Service:: Online technical support

Material:: Metal, Plastic

Shelf Life:: 1years

Quality Certification:: ce

Instrument classification:: Class I

Safety standard:: None

Product name:: Veterinary Ultrasound Machine

Type:: Doppler Ultrasound Equipment

Application:: Vet

Keyword:: veterinary ultrasound

Function:: Animals diagnostic

Feature:: portable

Display:: 3.5" color LCD screen

Dimension:: 90*98*25mm

Item:: Vet Ultrasound

Weight:: 0.62kg

Supply Ability

Supply Ability: 500 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: In general we use the Standard Export Cartons.
Also we can packing the products based on customers' demand.

Full digital B mode ultrasonic diagnostic instruments MSU3 veterinary ultrasound

Features:

• Latest cortex-m4 embedded control system + mini-ultrasound technology hardware system; A scan and B scan.

• 3.5" high resolution color LCD, smart, light and portable, suitable for outdoor use.

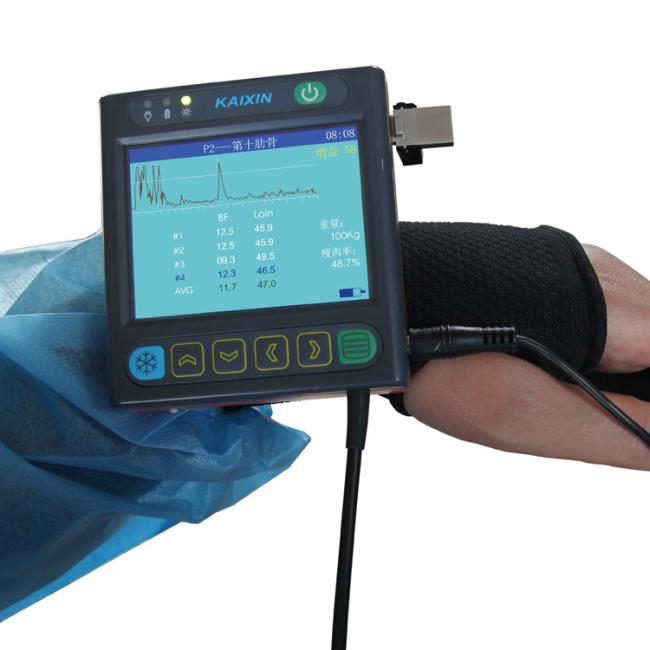

• Measure back fat thickness, loin muscle thickness and lean percentage.

• 3 kinds scale of image display.

• With U disk, image and measured data can be stored in Excel table, easy for data management processing.

• Unique character hidden function,automatically hidden in the setting time.

• System automatically freeze and protect probe with time setting.

• Customized languages: English, French, German, Spanish, Portuguese, Russian and etc.

• Lithium battery: Large capacity (2600mAh), working time≧ 300 minutes.

• Net weight: 620g.
Standard configuration

* Main unit: 1 pc

* 3.5MHz mechanical sector probe : 1 pc.

* Power adapter: 1 pc

* Internal battery : 1pc

* Power line : 1 pc

* Shutter release line : 1 pc

* Straps : 1 pc

* Instrument backpack : 1 pc

* OTG U disk : 1 pc

Specifications:
Monitor:	3.5" high resolution color LCD, smart, light and portable,suitable for outdoor use
Language:	Chinese/English switchable
Customized multiple languages:	Chinese, English, French, German, Spanish, Portuguese
Gray:	256
Display mode:	B, 2B, A, total 3 kinds
B mode and A mode gain range:	27 ~ 90dB
Near field Gain:	-31 ~ 0dB
Frequency:	2.5M, 3.5M
Power:	100-240V ~ ± 10% 1.2-0.6A
Frequency:	50-60Hz ± 1Hz
Net Weight:	620g
Main unit size:	90×98×25mm(length x width x height)
