G10UR G10UL Medical Hospital Equipments Ultrasound USB Probe Wireless Transducer
Ultrasound USB Probe Wireless Transducer For Ultrasound GH G10UR G10UL

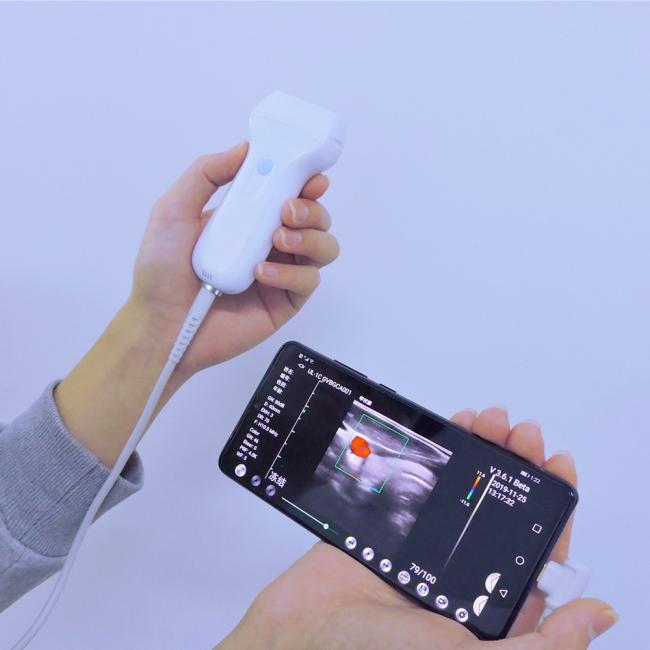

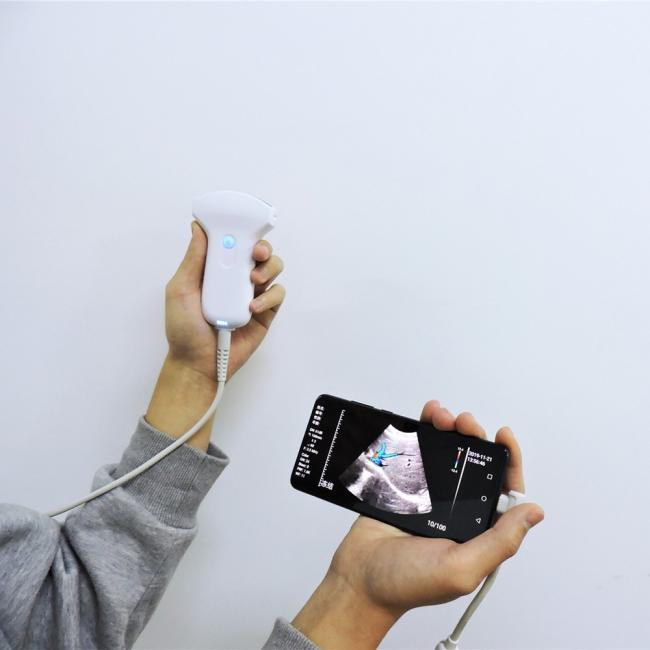

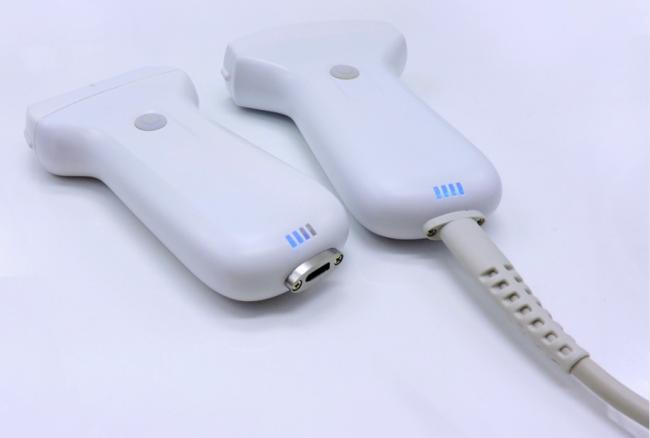

G10UR G10UL is a wireless & USB ultrasound probe scanner.This USB/wireless probe scanner with integrated ultrasound circuit boards inside, can wireless connect to the IOS/Android/Windows device that after installed ultrasound software, then realize the functions of a ultrasound scanner.It is small and smart, convenient for carry and operation.
In emergency clinical,hospital ward inspection,community clinical and outdoor inspect,Clinical training,Nursing Training, an easy carried & operated compact ultrasound such as wireless probe is desired.
USB/Wireless Color doppler Ultrasound Technical Specifications
| Scanning system | Electronic array sweep |
| Frequency | Convex:3.5/5mhz,Linear:7.5/10mhz |
| Scan Depth | Convex:90-305mm,Linear:20-100mm |
| Host | iPhone iPad,Android cellphone/tablet,Windows Computer |
| Wifi Type | 802.11n/20MHz/5G |
| Field of view | 80 degree |

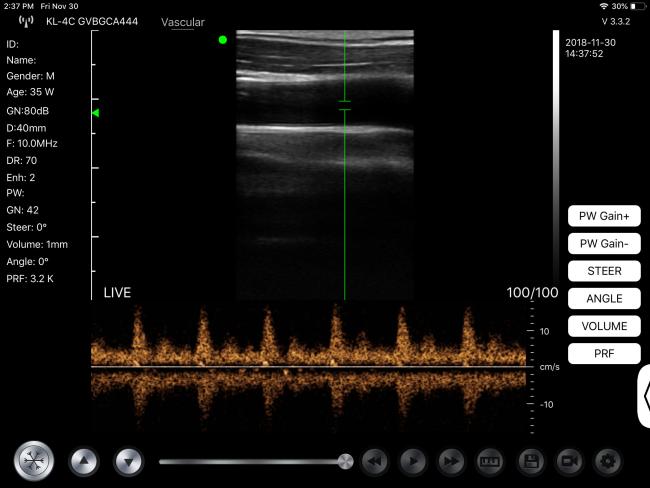

| Display mode | B, B/M, color, PW, PDI |
| Image gray scale | 256 level |
| channel | 64 |
| Frame | 24s/f |
| Gain | 30-105Db |
|
Measure
|
distance, area, obstetrics and other |
|
Length,Area/Circumference,GA(CRL),GA(BPD),GA(GS), GA(FL),GA(HC),GA(AC) |
|
| Language | English,Chinese |
| Power | by built-in battery |
| Power consumption | 4W (probe run) /1.5W (probe stop) |
| Battery Replaceable | Yes |
| Battery last | 2 hours(continus working time) |
| Size | 115(h)x70(w)x20(d) mm |
| Weight | 125 gram |
