TB Type Rubber Oil Seals 50mm Rubber Lip Seals Automotive
High Performance Automotive TB Seal TB Type Rubber Seals
Introduction:
TB seal has same type with the TC type oil seals. The different of them is:
For TC oil seal, the rubber is completely coated in the Skeleton. But for TB type seals, the rubber is only partly coated in the seals. Both of the TC and TB seals has self lightening spring and double rubber lips. The function of them is same in the Transmission systems.
Features of Rubber:
| Material | Temperature( ℃ ) | Advantage |
| NBR | -40~+125 | Excellent abrasion resistance, Mineral oil resistant. |
| SIR | -60~+225 | Excellent heat resistance, cold resistance and weatherability. |
| FKM | -20~+250 | Have good heat resistance, oil resistant and chemicals resistance. |
| EPDM | -40~+125 | Water resistance, resistance to polarity, solvent resistance, inorganic drug resistance, and good weatherability. |
| SBR | -50~+100 | Resistance to polarity, solvent resistance, Excellent resistance to water |
| PTFE | -45~+100 |
Heat resistance, Excellent cold resistance, chemicals resistance, goodweatherability, Low friction coefficient of oil seal material |
Should oil seals be installed dry?
Proper seal set up is usually disregarded whilst deciding on an oil or grease seal for any given application. To start the seal set up, an crucial step is to pre-lubricate the seal with the oil or grease you will seal. This will lessen the “sliding“ friction pressure which could harm the seal whilst set up dry. It additionally prevents a dry beginning circumstance which could tear the seal cloth for the duration of preliminary run-in periods.
Product Details:
Materials: Nitrile Rubber(NBR), Viton rubber(FKM), ACM, HNBR and etc.
Other Names: TC rubber seal, Oil sealing, Rubber seal, FB oil seal, Hub oil seals, Wheel end seals, Auto Engine seals, rubber seals, Rubber sealing.
Operating temperature: NBR -40 – 120 °C ; FKM -20 – 250 °C
Color: Black, Brown, Red, Blue
Hardness: Shore A 40 -80
Pressure: up to 0.03 MPa
Application: Low and high temperature resistant Wheel end hub seals are used for Man trucks, Sino trucks, Donfeng Trucks and other heavy trucks.
Product Features:
- Performs excellent under gas and water.
- Good sealing effect in Dynamic and static sealing.
- Excellent chemical corrosion
- Excellent ozone resistance
- Anti-aging, wear resistant
FAQ:
1. How much FKM rubber oil seals do you have?
We have various kinds of FKM rubber oil seals. The inner diameter is from 10 mm to 600 mm.
2. What types of FKM rubber oil seals do you have?
BRT has various types of FKM rubber oil seals. There are FKM rubber oil seals used in Auto Engines, Bearing seals, Body seals, Steering seals, Wheel and end seals, Hub seals, Hydraulic seals, Mechanical seals, Axle oil seals, Gear box oil seals, Trailer oil seals, Rotary shaft oil seals and etc.
3. Could you supply free samples to us?
Yes, we can supply free samples to all our clients. For new customers, the samples of camshaft oil seals are free but the freight cost is not free. But we can return this charge to you in our formal orders. For our old customers, both the samples and freight are free.

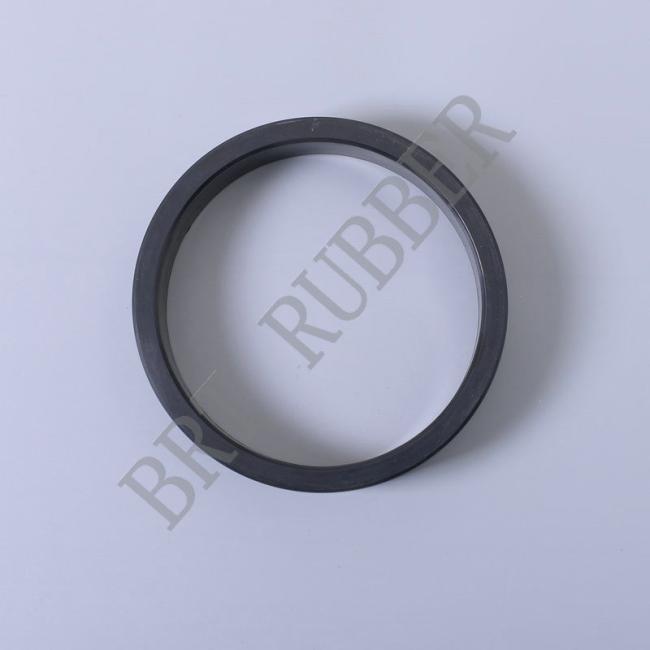

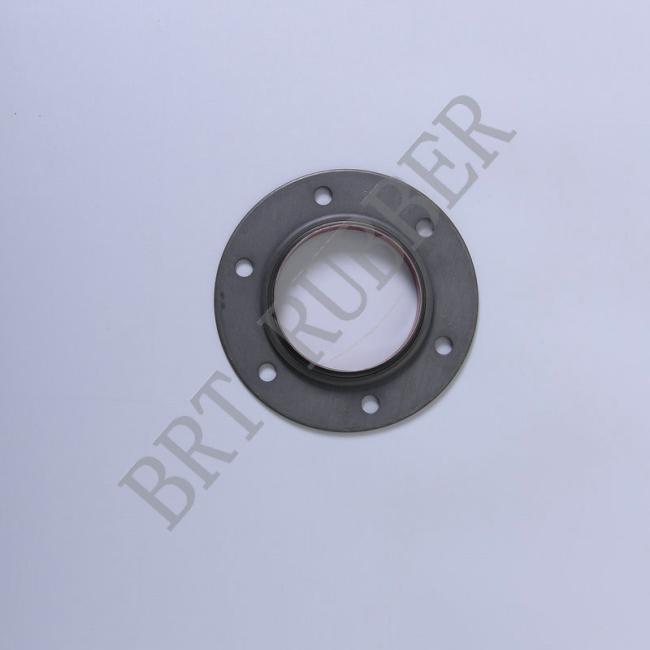

Some Pictures of the Rubber Oil Seals:
