Blue Color ID48mm High Temperature Rubber Tubing 100mm 200mm Length
Blue Color High Performance ID48mm Straight Silicone Hose long 100mm 200mm
Specifications:
| Material | 100% high quality silicone |
| Reinforced layers | 3 Ply |
| Wall Thickness | 4.5mm+-0.2 |
| Pressure range | 0.3 - 0.9MPa |
| Resistance temperature | -40°C to 260°C |
| Length | 100mm, 200mm and etc. |
Some Sizes of the Silicone Straight Hose:
| CODE | ID | WALL | LAYER | L | ||
| mm | inch | mm | mm | ft | ||
| M1 | 6.5 | 1/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M2 | 8 | 5/16 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M3 | 9.5 | 3/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M4 | 12 | 1/2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M5 | 13 | 4.5±0.5 | 3 | 1000 | 3.3 | |
| M6 | 16 | 5/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M7 | 19 | 3/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M8 | 22 | 7/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M9 | 25 | 1 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M10 | 28 | 1 1/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M11 | 30 | 1 3/16 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M12 | 32 | 1 1/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M13 | 38 | 1 1/2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M14 | 41 | 1 5/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M15 | 45 | 1 3/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M16 | 51 | 2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M17 | 54 | 2 1/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M18 | 57 | 2 1/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M19 | 60 | 2 3/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M20 | 63 | 2 1/2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M21 | 65 | 2 6/19 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M22 | 68 | 2 11/16 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M23 | 70 | 2 3/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M24 | 76 | 3 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M25 | 80 | 3 1/8 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M26 | 83 | 3 1/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M27 | 89 | 3 1/2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M28 | 95 | 3 3/4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M29 | 102 | 4 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M30 | 114 | 4 1/2 | 4.5±0.5 | 3 | 1000 | 3.3 |
| M31 | 127 | 5 | 4.5±0.5 | 3 | 1000 | 3.3 |
FAQ:
1. Do silicone radiator hoses collapse?
Radiator hoses are constituted of silicone rubber, neoprene and different artificial materials, and are designed for lengthy carrier life
Is silicone hose heat resistant?
Silicone hoses have excellent temperature resistance, flexibility and sturdiness and feature first rate thermal and electric insulating properties, making them extraordinarily well-desirable for compressors and heating, cooling, air flow and faster systems.
2. What colors can you do for the High performance automotive Radiator silicone rubber hose for heavy trucks.
Usually the color of the silicone tubes is black. We can also produce blue, red color silicone hoses.
3. Can we get samples before the orders?
Yes, we supply FREE samples to our clients.
4. How long will it take to get the new mold sample?
Usually we need one week to finish the molds. And we need 3 or 4 days to finish the samples.

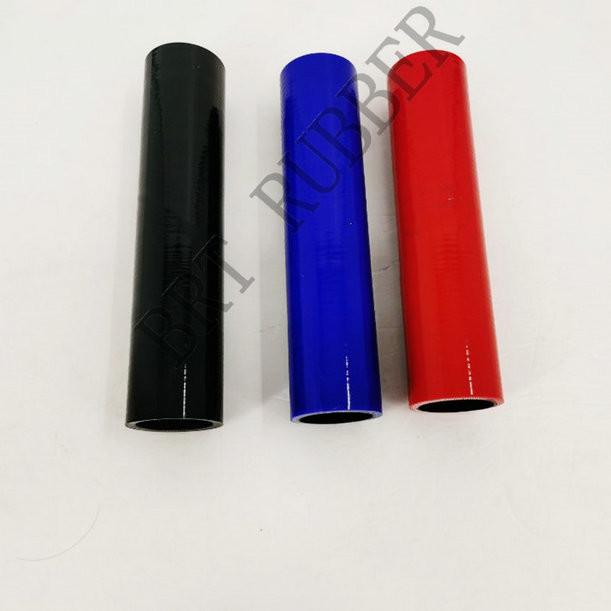

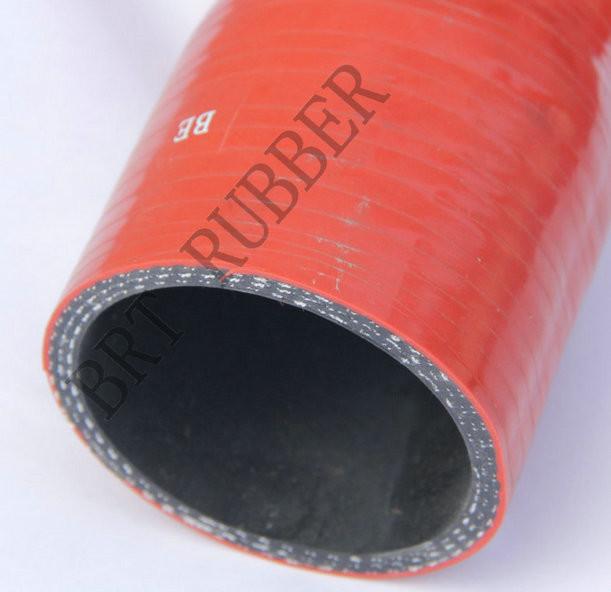

Detailed Pictures:
