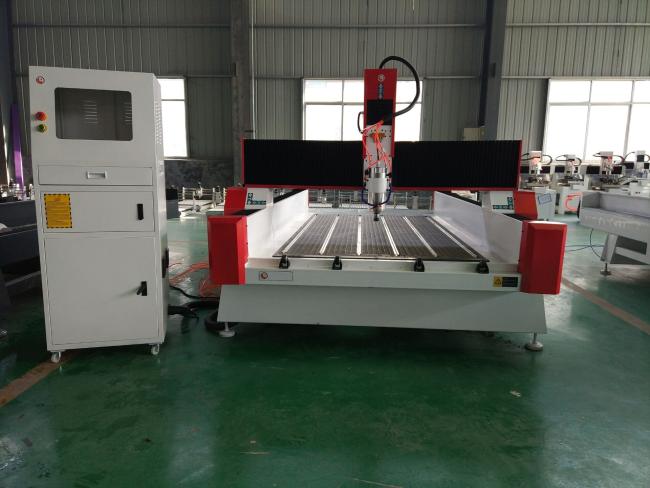

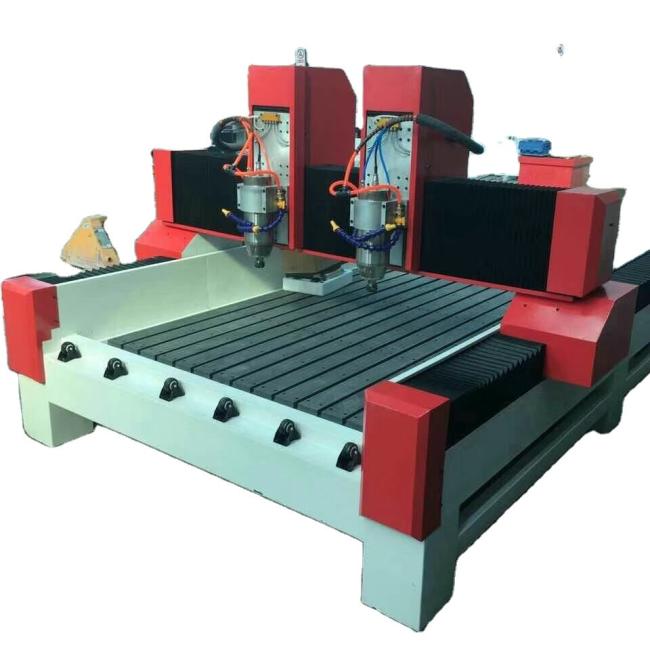

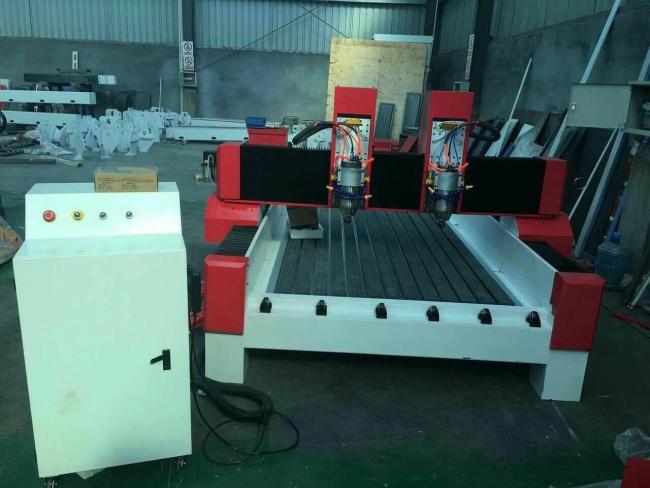

3d Stone cnc router machine for carving and cutting for marble tombstone

Name: 3d Stone cnc router machine for carving and cutting for marble tombstone
Brand: Xiamen Sino Universal Machinery

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 30 days after deposit

Brand: StoneSawMachine.com

Product Description

Machine Features

1. Adopt Taiwan Hiwin square rails, double-row four colums slide block, high precision, huge bearing capacity, good moving

stability and tools falling accuracy.

2. Whole machine welded with thickess steel tubes, not easy to be deformed. Working table backed with steel plate, bearing

capacity more than1ton

3. Constant power spindle motor, big cutting intensity and high efficiency.

4. Dust proof and water proof design protects the transmission components.

5. Equipped with water tank and automatic water cooling system.

Specification

Effective working area	(X=1300mm)*(Y=2500mm)
Max Feeding Height	400mm
Machine Body	8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
Working table	Aluminum T-slot table with PVC
Guide rail	Hiwin linear square guide rail
Driving method	Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis
Motor and driver	Stepper motor(450B) and Leadshine driver(MA860H)
Spindle Motor	5.5KW water cooling spindle
Invert	Fuling invert
Spindle collect type	ER25
Voltage	AC220V, 1 phase/3phase, 50-60Hz
Control system	Mach 3 USB control system
Control Cabinet	Independent
Other	Water tank(Bidirectional cooling system)
