Bridge Stone Saw Machine
Bridge Stone Saw Machine

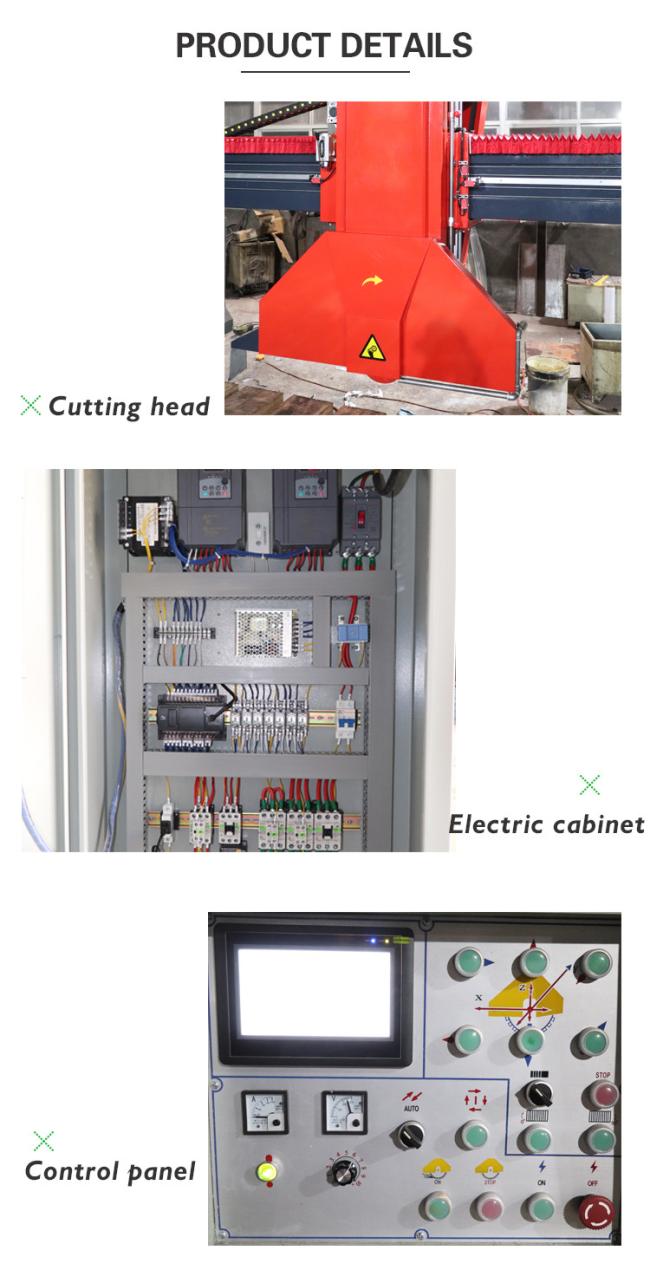

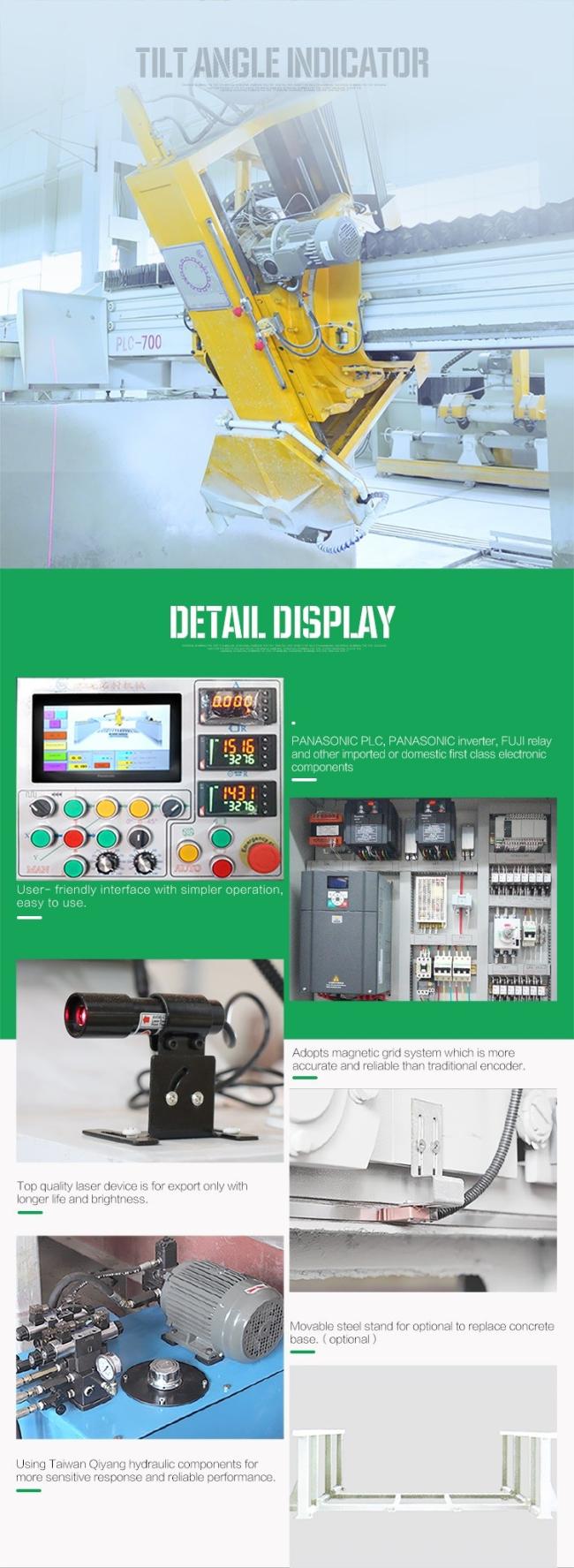

Usage: The machine uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit granite and marble with high value and big size.
PLC-400 Stone Cutting Machine
1)Bridge Edge Cutting Machine
2)Automatic Cutting Machine

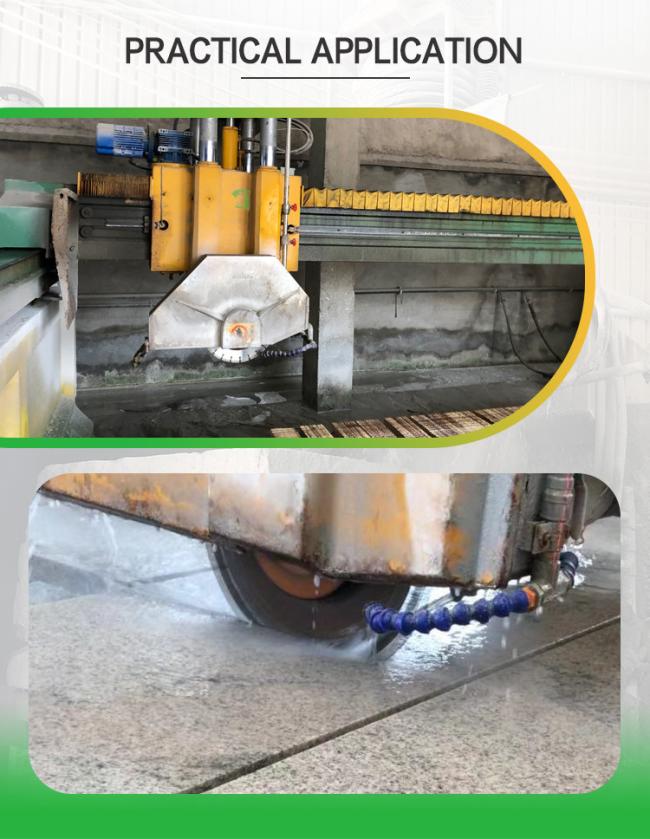

3)Granite/Marble/Sandstone slab edge cutting
Machine Models

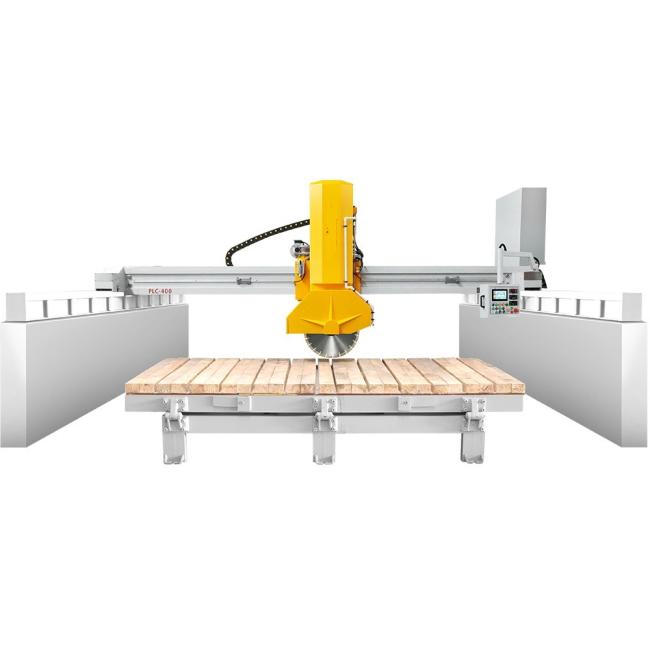

1. PLC-400 Bridge Saw
Blade Diameter: 350/400mm or 14" /16" Blade
Cutting Slab Size: Max. 3200x2000x80mm
Precision: +/-0.2mm
15Kw main Motor
Machine Certificates
CE Certificate
Exporting to Europe, USA and Australia, Mid-East
Technicial Parameter
| Model | PLC-400/600 | |
| Max. diameter of blade | mm | D350-400/D600 |
| Main motor power | KW | 15 |
| Blade rotation degree | N° | 0-45° |
| Table dimension(LxW) | mm | 3200x2000 |
| Table tilting degree | N° | 0-85° |
| Table rotating degree | N° | 90°/360° |
| Max.cutting size(LxWxH) | mm | 3200x2000x80/3200x2000x180 |
| Overall dimension(LxWxH) | mm | 6000x4800x3000 |
| Water consumption | m3/h | 4 |
| Approximate weight | kg | 4800 |
