Miter Stone Cutting Machine
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days after deposit
Brand:
StoneSawMachine.com
Product Description

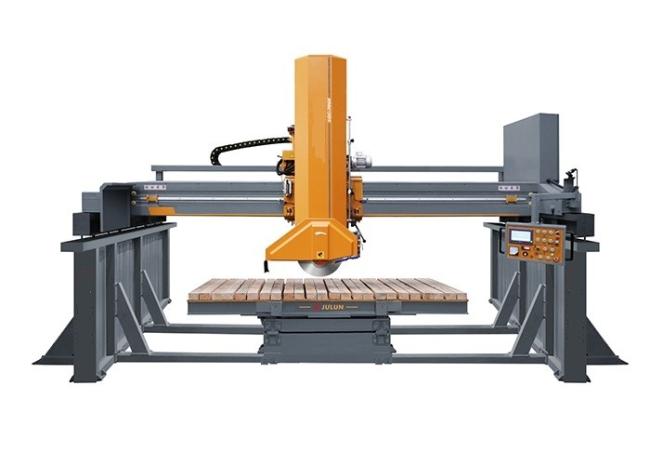

Miter Stone Cutting Machine
1) Monoblock structure for easy transport, installations and no foundation needed.

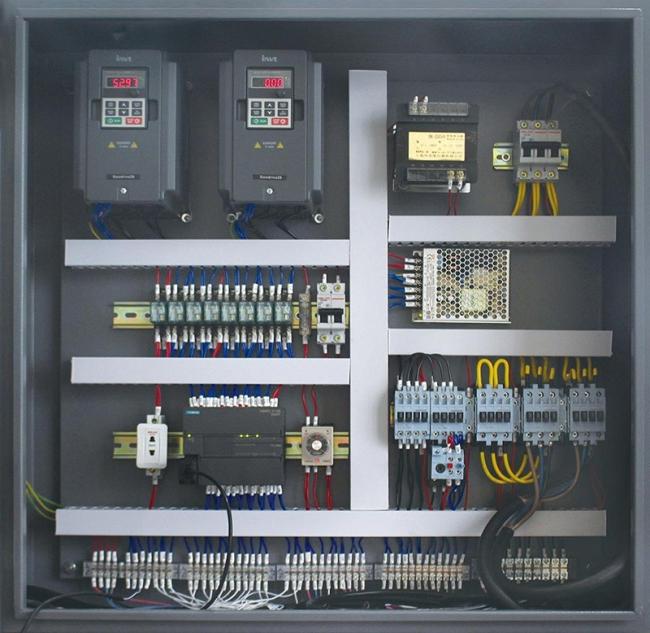

2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
| Appellation | MCJL-625 |
| Max.blade diameter (mm) | Φ700 |
| Max.liftingl sroke (mm) | 470 |
| Worktable size (mm) | 3200×2000 |
| Blade tilt range (°) | 0- 50 |
| Worktable rotation range(optional) (°) | 0°- 90°/0°- 360° (Set up by each 45° degree) |
| Worktable turn-over degree (°) | 85 |
| Water consumption (m³/h) | 3 |
| Power of main motor (kw) | 18.5 |
| Total power (kw) | 25 |
| Dimension (mm) | 6000×5700×3600 |
| Weight (kg) | 6400(With stand 7500kg) |
