Table Stone Cutting Machine
Table Stone Cutting Machine

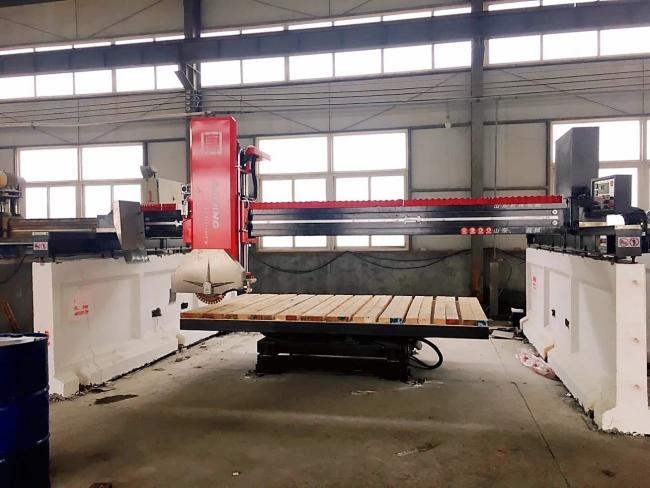

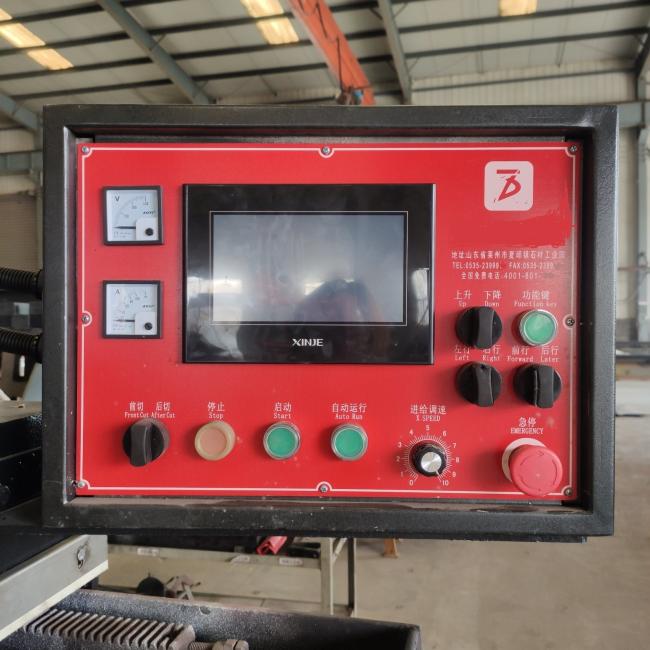

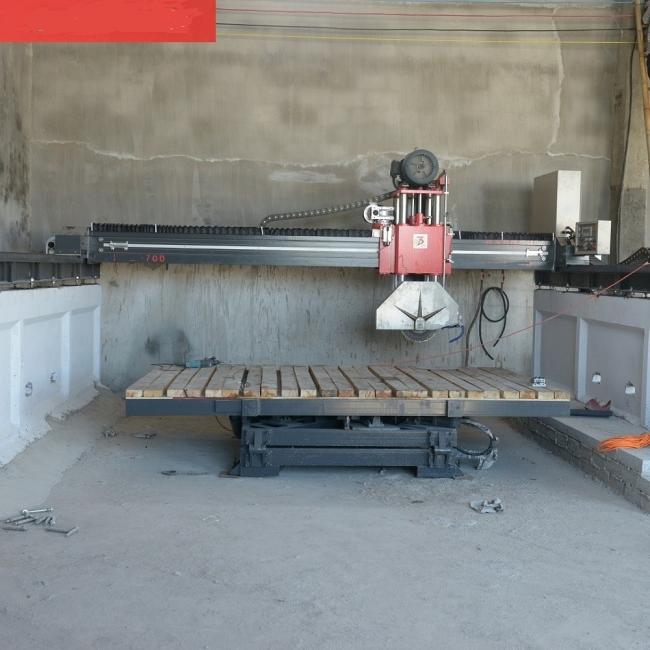

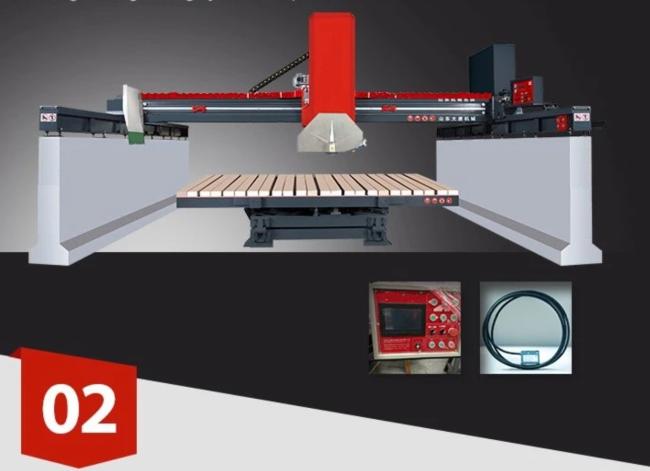

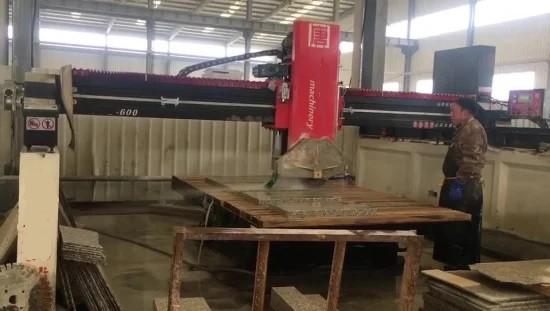

Table Stone Cutting 450/600/700/800 bridge type infrared stone cutter is controlled by computer and can work automatically. Machine parts are made of high quality steel. Four guide pillars are used for lifting, The electronic parts are assembled with advanced imported components. The machine adopt PLC system, VFD for speed regulation, infrared calibration instrument, touch operating system. Computer automatic control ensures cutting accuracy. The machine is with high intelligence, high stability, high efficiency, and easy operation. It is suitable for cutting high value, large size granite and marble slabs.
Specifications:
| Model | MCQ-450 | MCQ-600 | MCQ-700 | MCQ-800 |
| Max. Cutting Size | 3200*2000*100mm | 3200*2000*175mm | 3200*2000*225mm | 3200*2000*275mm |
| Blade Size | 400-450mm | 400-600mm | 400-700mm | 400-800mm |
| Work Table Size | 3200*2000mm | 3200*2000mm | 3200*2000mm | 3200*2000mm |

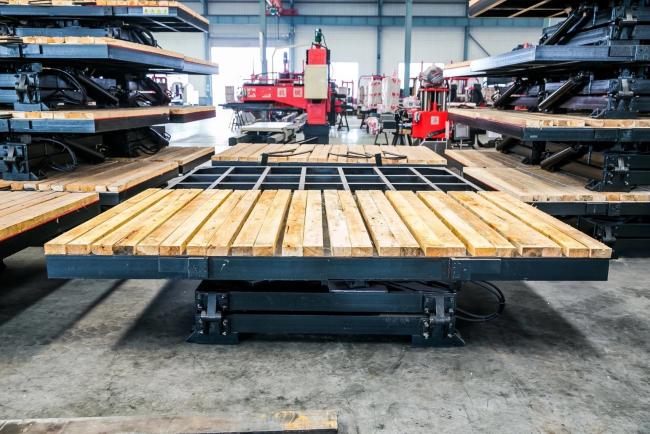

| Work Table Tilting | 0-85 degrees | 0-85 degrees | 0-85 degrees | 0-85 degrees |
| Work Table Rotating | 0-90/0-360 degrees | 0-90/0-360 degrees | 0-90/0-360 degrees | 0-90/0-360 degrees |
| Main Motor Power | 15kW | 18.5kW | 18.5kW | 18.5kW |
| Water Consumption | 3.5m3/h | 3.5m3/h | 3.5m3/h | 3.5m3/h |
| Dimension | 6000*4800*2600mm | 6000*4800*2800mm | 6000*4800*3150mm | 6000*4800*3300mm |
| Weight | 8700kg | 9200kg | 10500kg | 11000kg |
