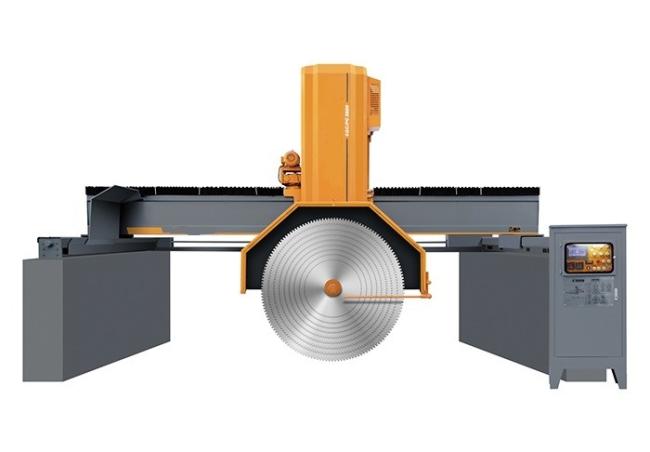

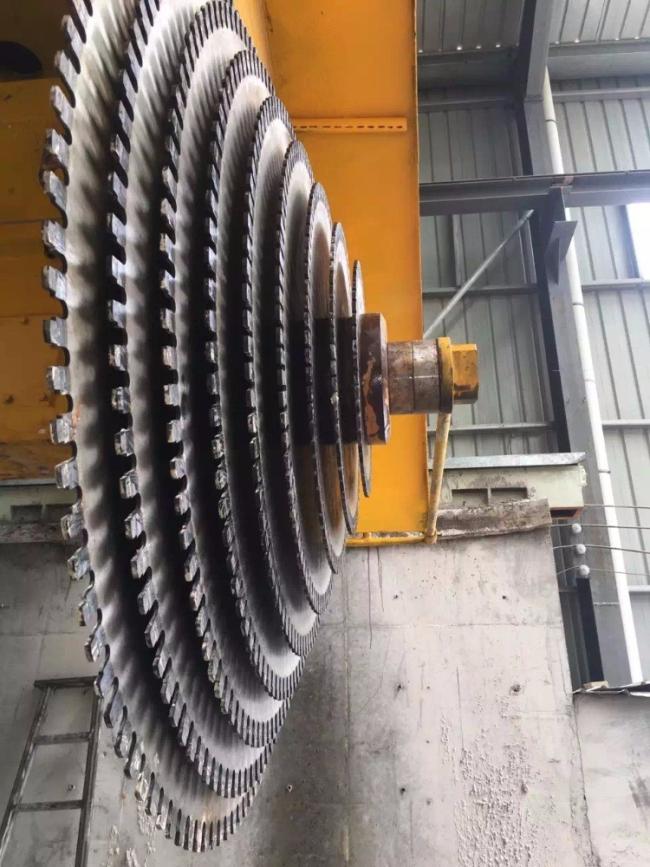

Multi Blades Block Cutting Machine

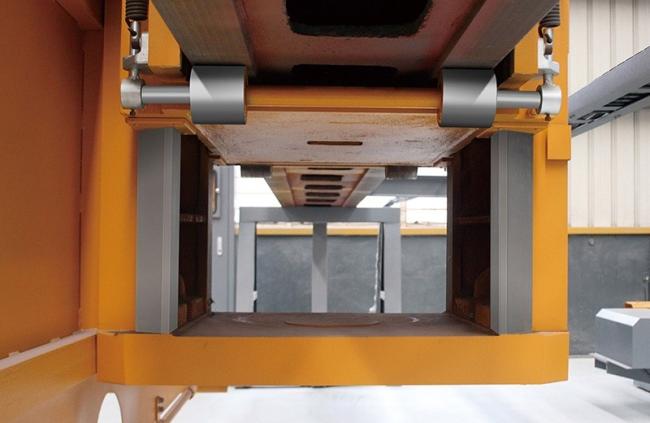

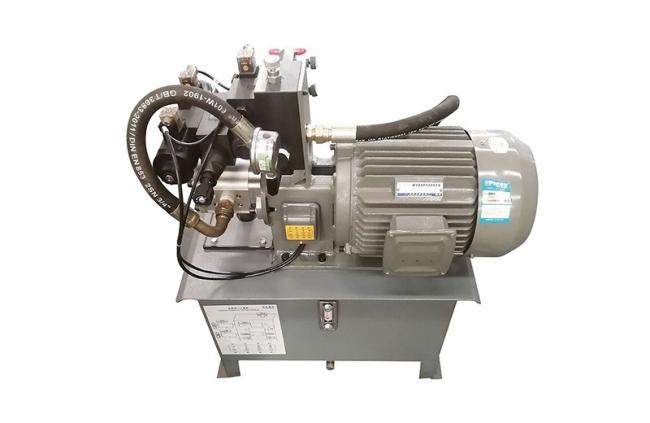

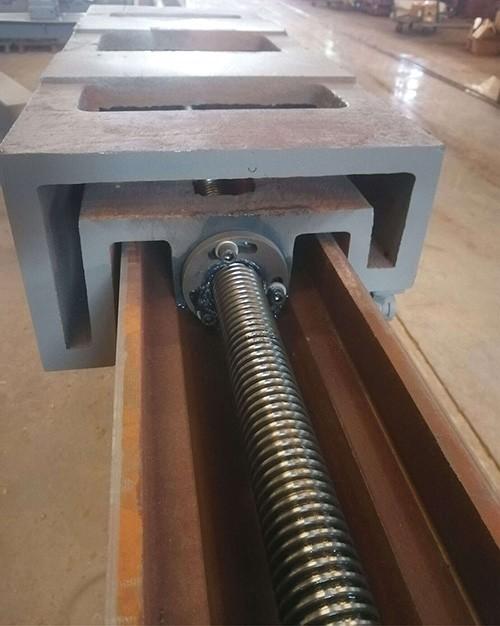

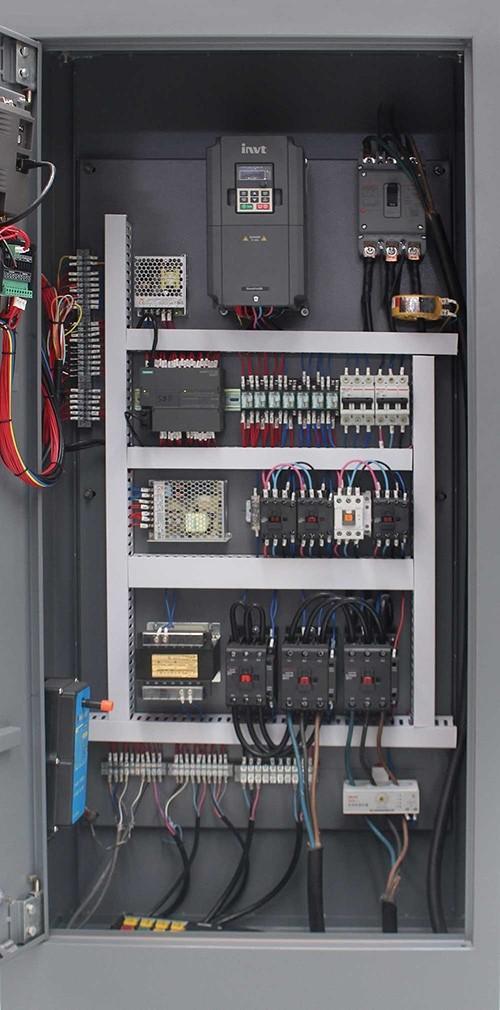

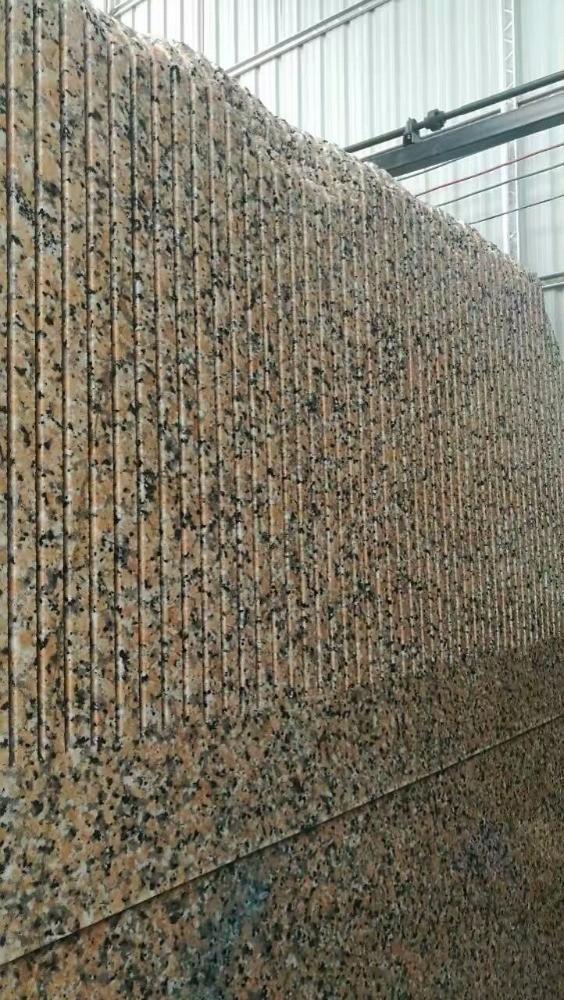

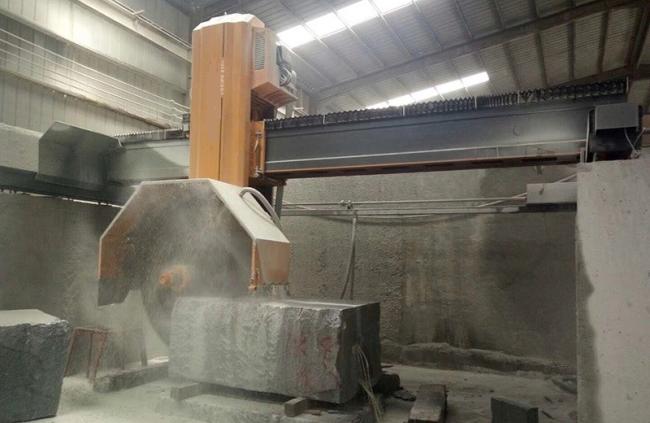

MULTI-BLADES DOUBLE HYDRAULIC BLOCK CUTTER BTC-2200/2500/2800/3000 uses inverter to control left-right feeding adjusts the speed according to the stone material. It uses hydraulic lifting system(screw lifting system*optioal), forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed in the ground directly to save worktable and its maintenance costs. Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value.
Specifications:
| Model | DTQZ-2200-4D | DTQZ-2600-4D | DTQZ-2800-4D |
| Max. Blade Diameter | 2200mm | 2600mm | 2800mm |
| Max. Cutting Length | 3200mm | 3200mm | 3200mm |
| Max. Cutting Height | 2200mm | 2200mm | 2200mm |
| Max. Cutting Depth | 950mm | 1150mm | 1250mm |
| Max. Lifting Distance | 1220mm | 1320mm | 1400mm |
| Water Consumption | 15m3/h | 15m3/h | 15m3/h |
| Main Motor Power | 37kW | 45kW | 55kW |
| Total Power | 50kW | 58kW | 68kW |
| Dimension | 7500*4500*6800mm | 7500*4500*6800mm | 7500*4500*7000mm |
| Weight | 16000kg | 16500kg | 17000kg |
