Automatic Stone Trimming Machine
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days after deposit
Brand:
StoneSawMachine.com
Product Description

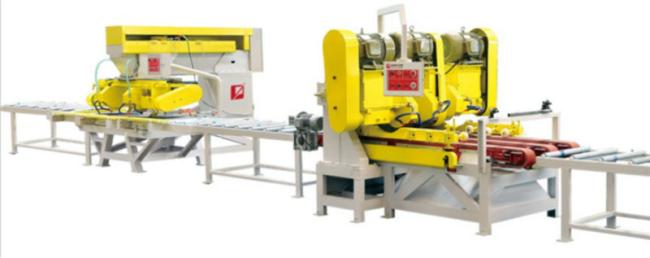

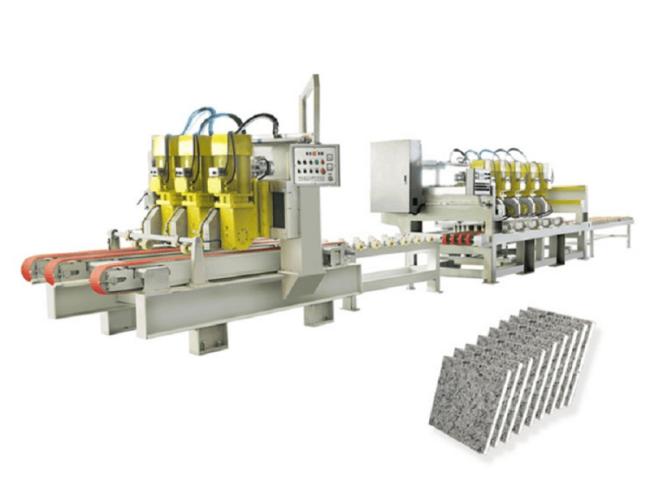

Automatic Multi-blade Granite / Marblde Edge Trimming Machine
Structure Charateristics:
A. It is an effcient stone cutting enquipment and has the advantages of reasonable structure.Reliable running.high processing precision.high degree of automatation,etc.
B.Independent beams and variable frequency speed control of the main transmission can meet a variety of cutting requirements,
C.The advanced PLC intelligent control system is adopted to achieve full automatic control.
Technical Data:
| Name | Unit | DZQ-400 |
| Diameter of blade | mm | 400 |
| Cuting head number | n. | 8-10 |
| Max. cutting depth | mm | 80 |
| Max. cutting width | mm | 800 |
| Power of main drive | kw | 80-110 |
| The transportation speed | mm/min | 0-4000 |
| Approximate weight | kg | 7500-10000 |
| Overall dimension (L*W*H) | mm | 15000*2280*2300 |
