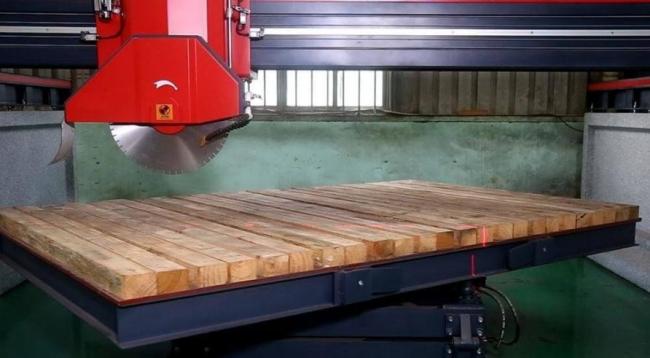

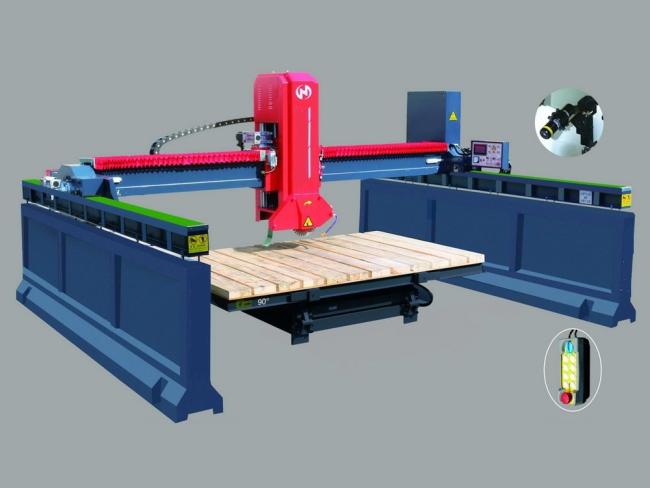

Granite Bridge Saw Machine
Granite Bridge Saw Machine
Features:
Durable: Good quality steel is used as the mechanical parts and reliable imported electric,Parts are used to guarantee high reliable & durable.
Precise: a. Crossbeam movement(Y-axis)along linear guide way with high precision.

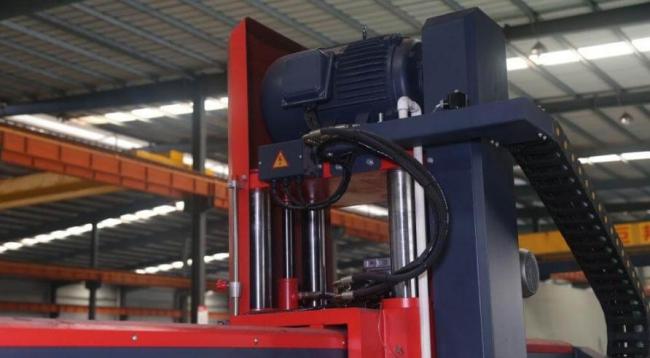

b. Z-axis movement by lead screw.
c. Magnetic ruler is adopted for slicing measure.

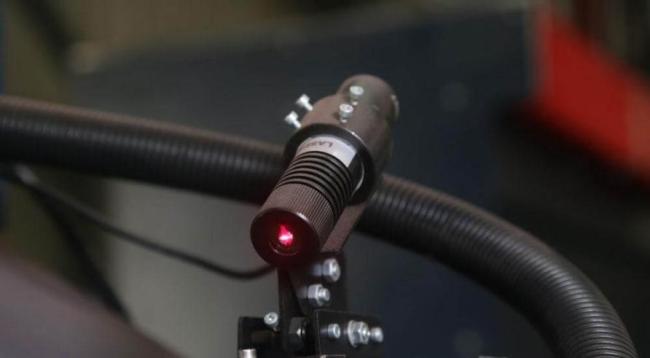

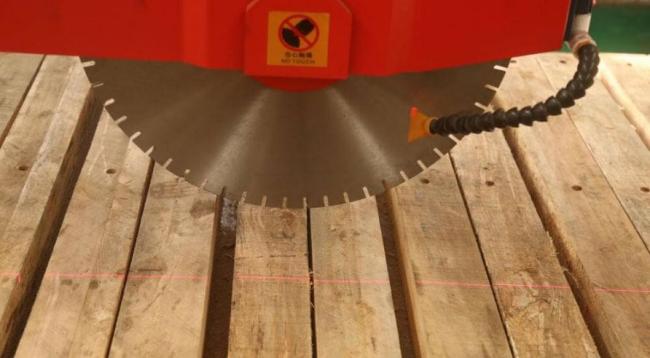

d. Laser device for accurate alignment.
Userfriendly:

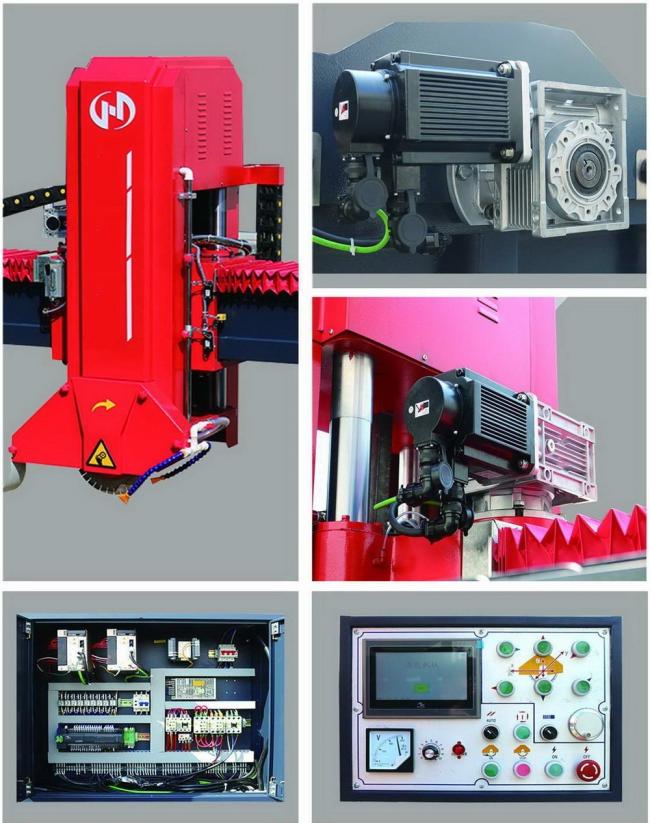

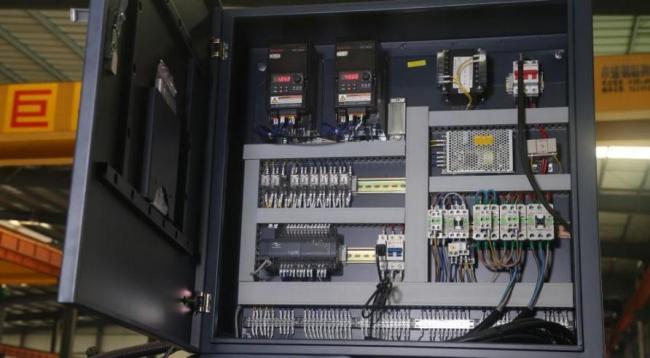

a. Touch screen control panel and 3D movement is controlled by microcomputer to realize automatic operation.
b. Both manual and automatic operation available .
c. Workable can rotate 90o or 360O( optional).
d: Multi-functional: With optional sensor ,profiling function can be added.
| Technical Parameter | MCQJ-400/600/800 |
| Blade diameter | Φ600-800mm(400-800mm add a VFD) |
| Blade up/down stroke | 600mm |

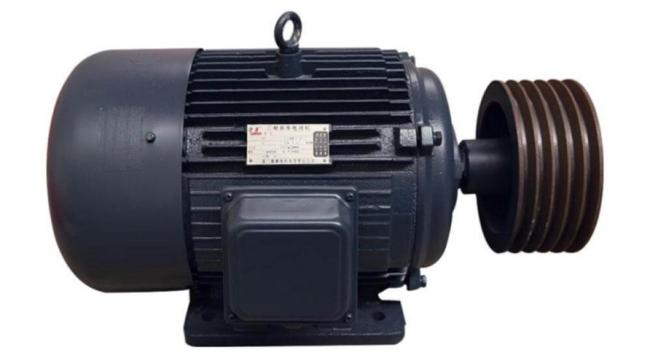

| Main motor | 18.5kw |
| Feeding motor | 3kw |
| Slicing motor | 1.1kw |
| Rotation angle of blade axis | 0-5 |
| Max.cutting size | 3200*2000*200mm |

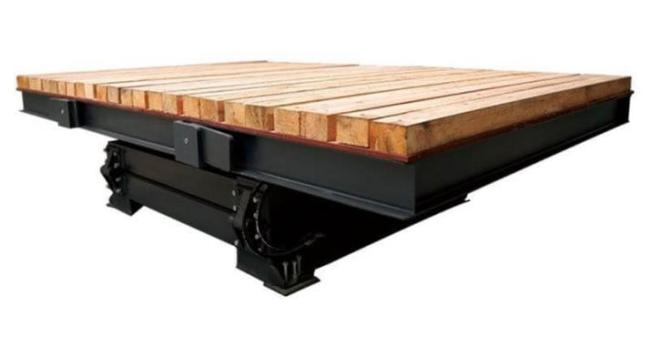

| Workbench rotating degree | 0-90:45-90-135-360;1-360 |
| Workbench tilting degree | 0-85 |
| Dimension (L*W*H) | 5800*4800*3200mm |
| Weight | 6800kg |
