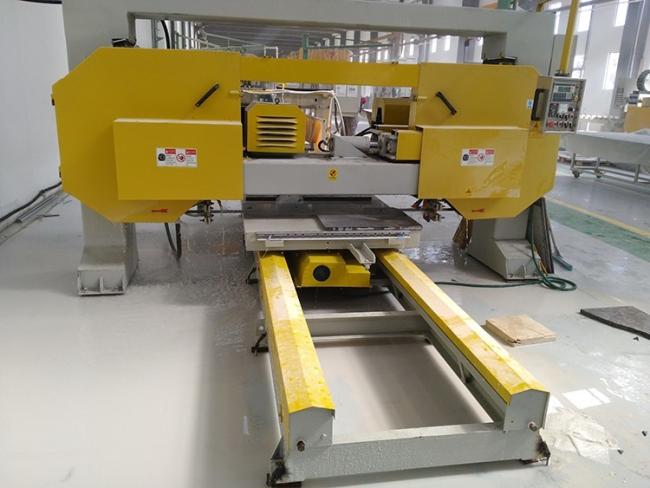

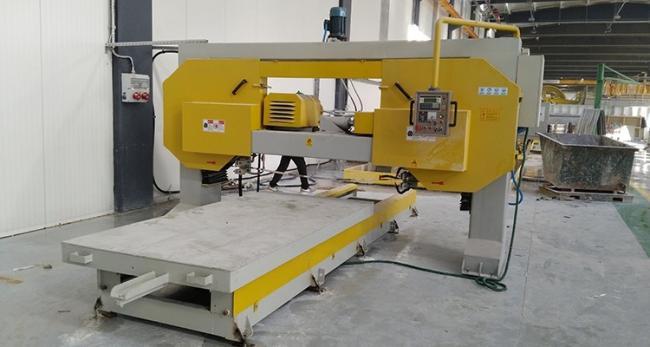

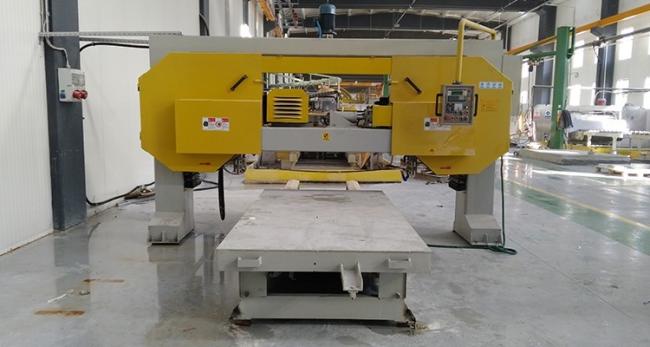

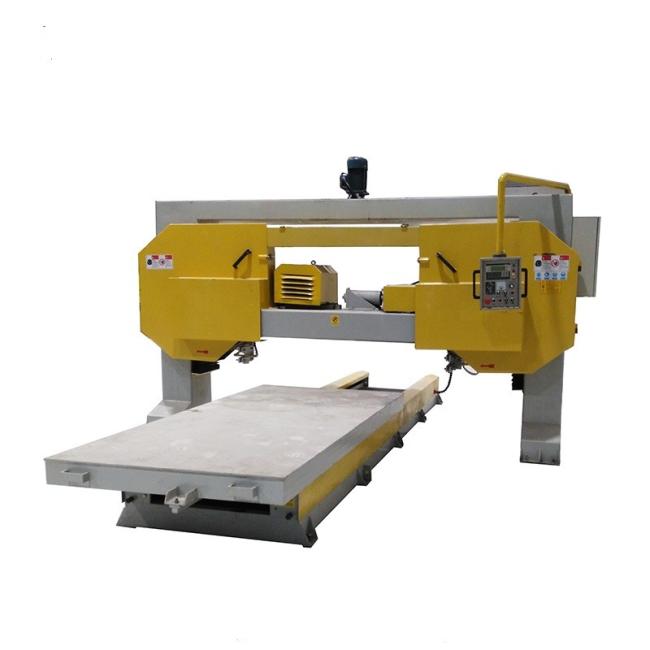

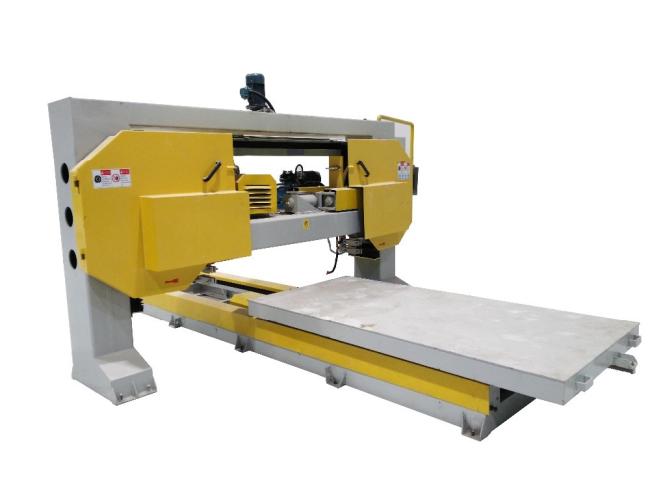

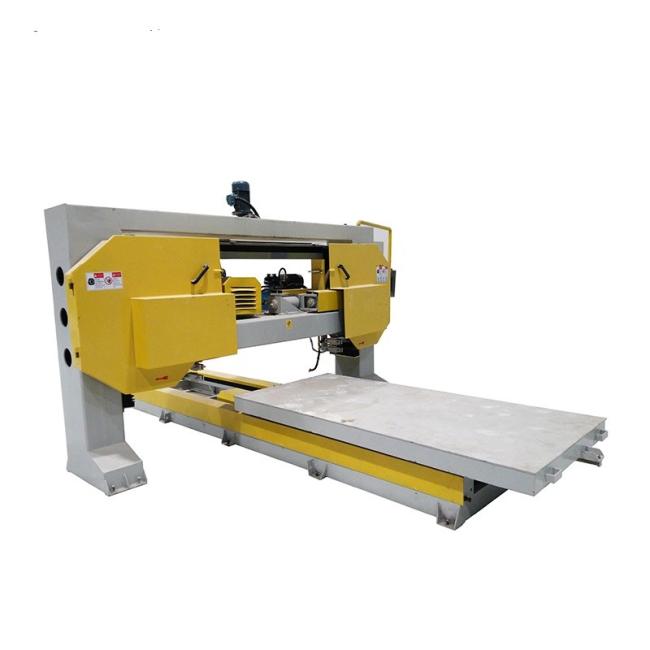

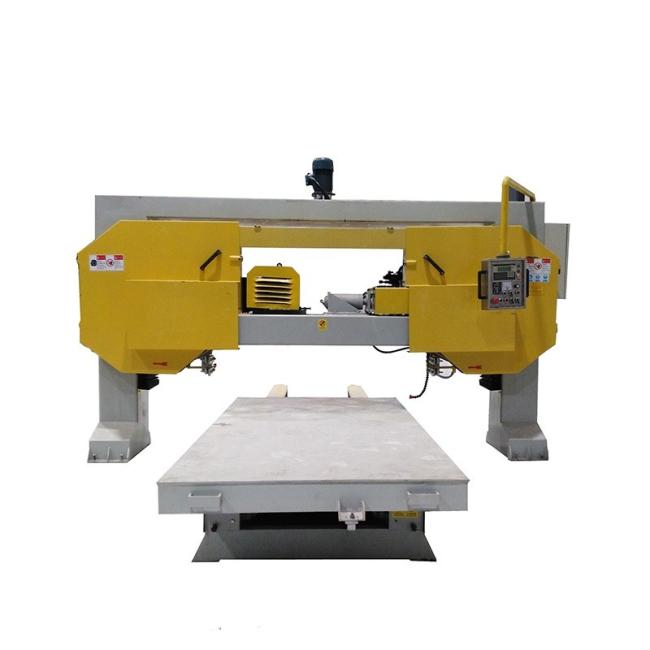

Stone BandSaw Slicing Machine
Stone BandSaw Slicing Machine
(1). It is equipped with medium framework and catch slab framework, which can control the diagonals and size error in the regular limit effectively.

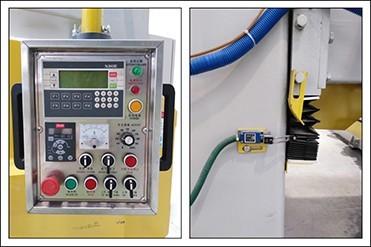

(2). The electric appliance is controlled by PLC with high stability.
(3). It is adopted the latest water-proof cover with effective anti-fog and anti-water functions. It is also convenient for field management.
(4). In belt driving way, it is adopted frequency conversion motor. The speed can be adjusted and the length is unlimited.

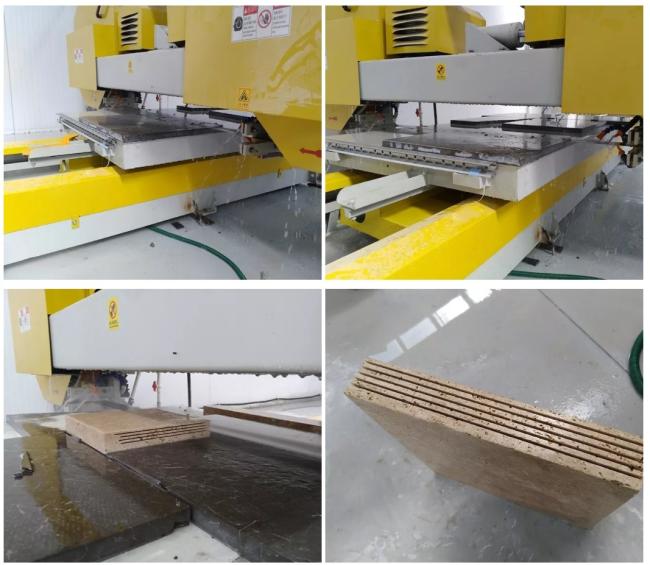

(5). The slab thickness between 80mm to 2mm can be cut.
(6). 3.2m2 to 5 m2 stones with 600mm width can be cut in an hour.

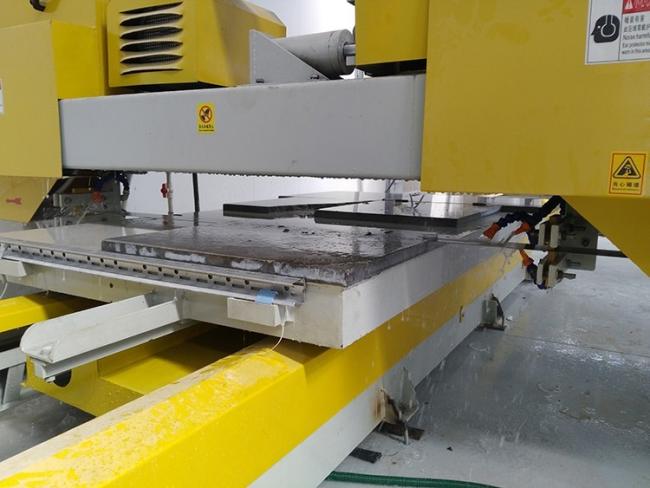

(7). The cutting edge is smooth and the precision is high, within the degree of ±0.02mm.

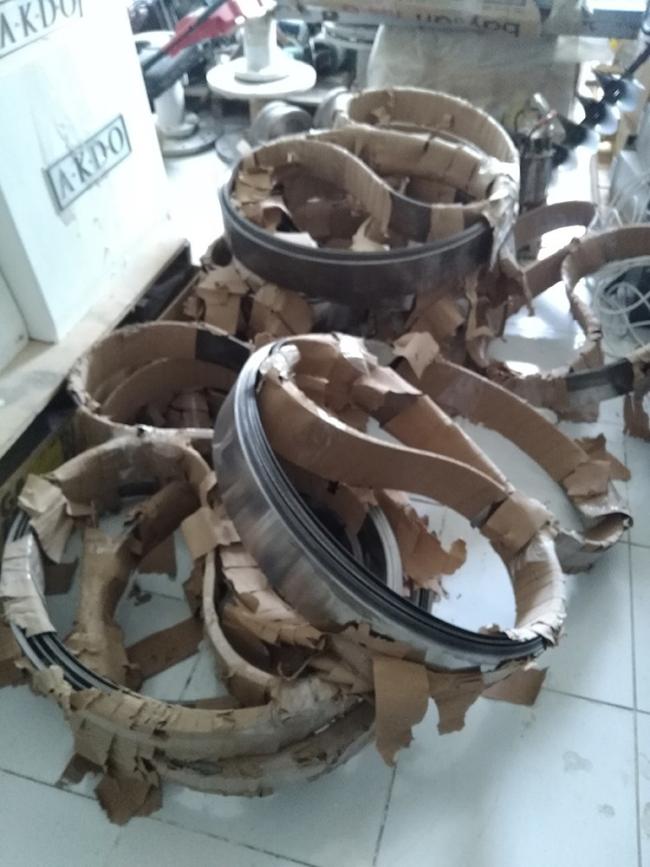

(8). The saw blade can cut 250 m2 stones.
Technical parameters
| Model | Unit | 1200 |
1500 | 1500 (two function) |
2000 |
| Max. cutting width(L*W*H) | mm | 1260 | 1560 | 1560 | 2060 |
| Travel height | mm | 80 | 80 | 80 | 80 |
| Main motor power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| Output | M2h | 2-3m2 | 3-5m2 | 2-3m2 | 2-3m2 |
| Total power | kw | 8.5 | 9 | 9 | 9.5 |
| Max.cutting thickness | mm | 160 | 160 | 160 | 160 |
| Thickness of saw | mm | 6-7mm | 2mm | 2mm(marble) 6-7mm(granite) |
6-7mm |
| Water consumption | M³h | 2.5 | 1.5 | 2 | 3 |
| Dimensions(L*W*H) | mm | 4500*3600*2200 | 4500*4100*2200 | 4500*4100*2200 | 5800*4400*2200 |
| Approximate weight | kg | 2500 | 2600 | 2800 | 3200 |
