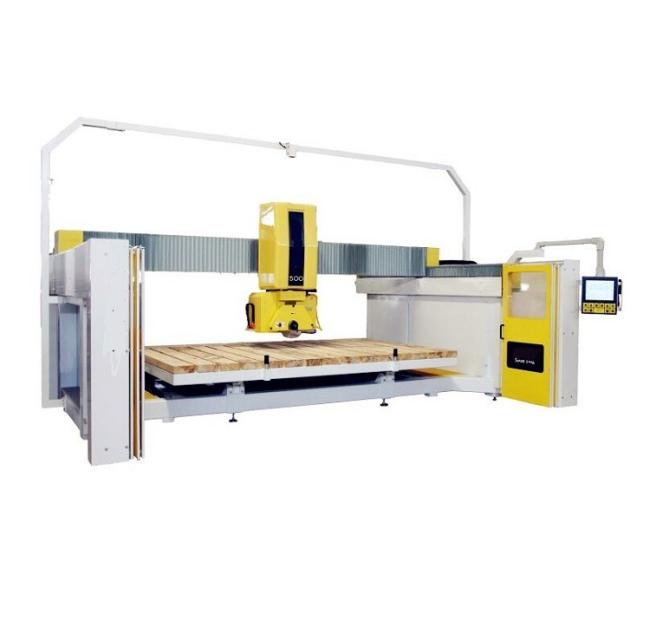

Granite CNC Stone Cutting 5 Axis Bridge Saw Machine

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 30 days after deposit
Brand: StoneSawMachine.com
Product Description

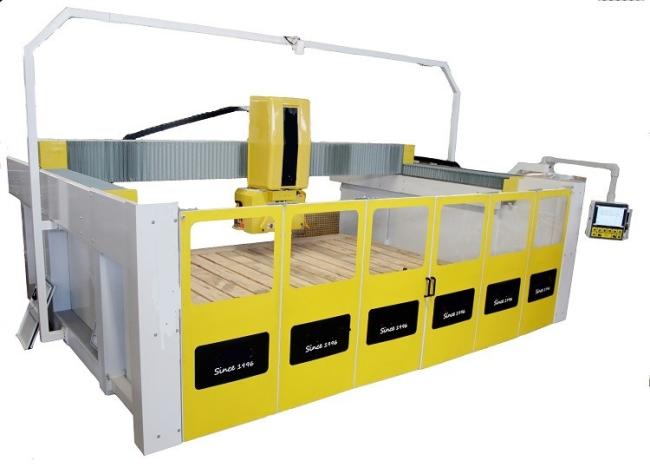

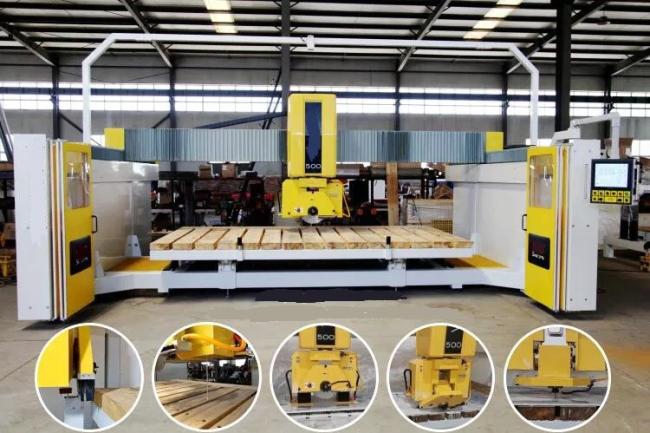

5 AXIS CNC NATURAL STONE CUTTING MACHINE

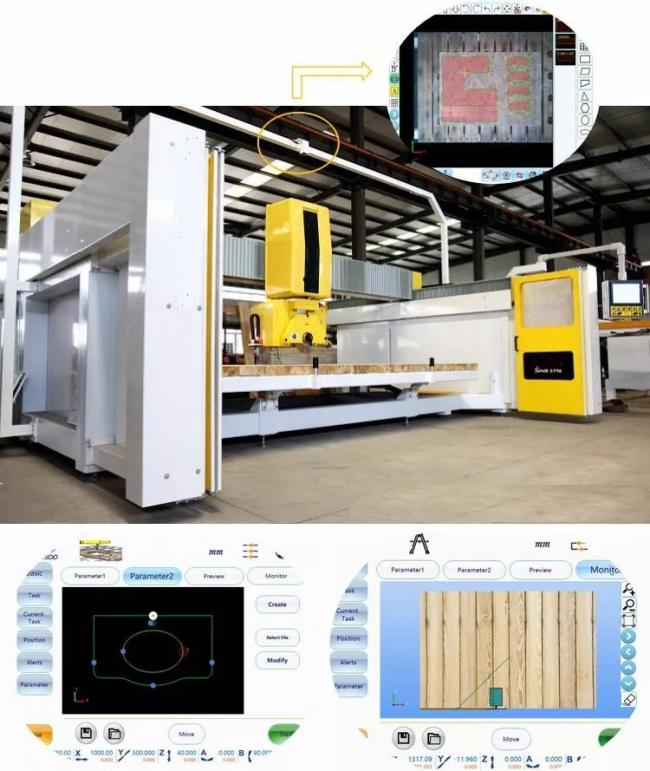

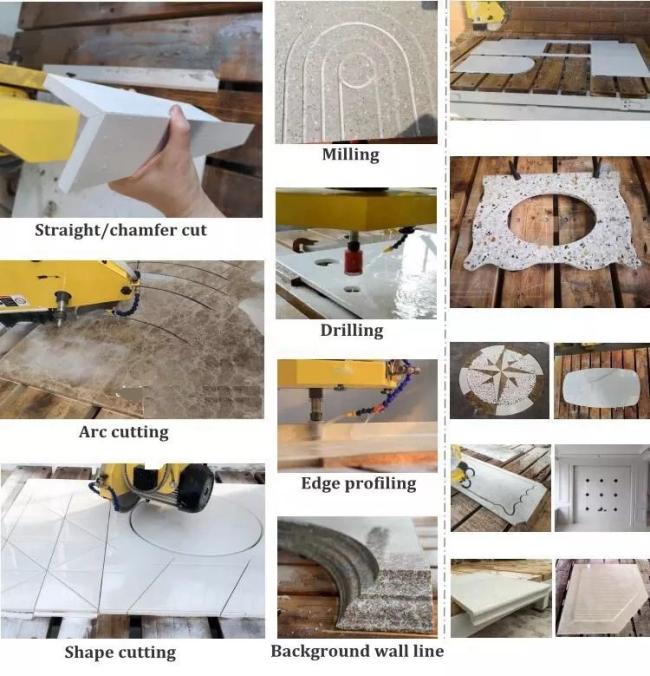

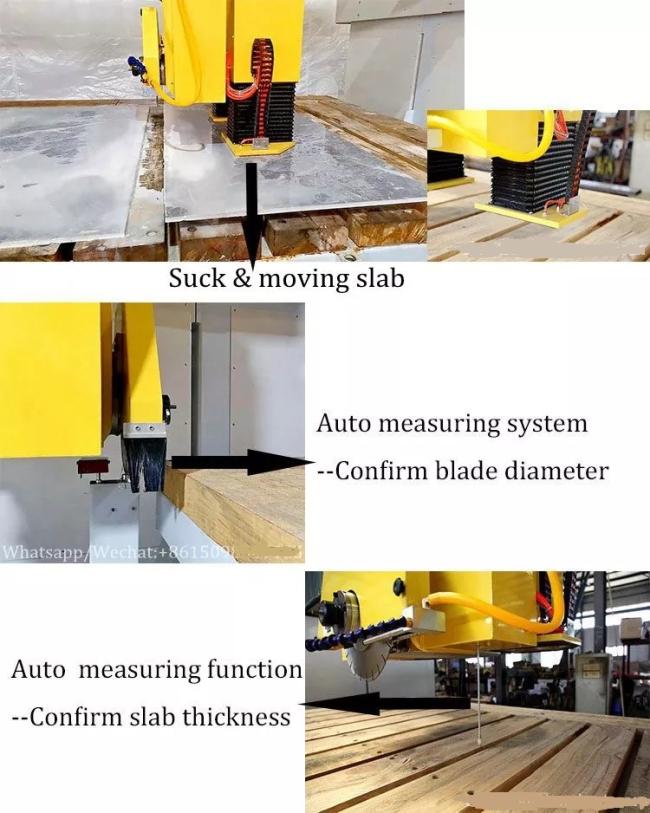

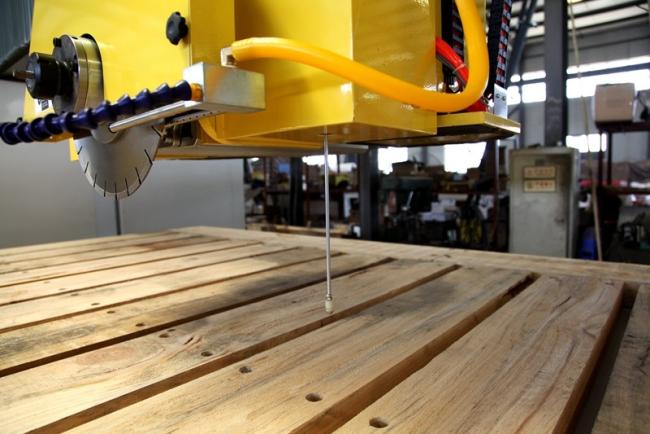

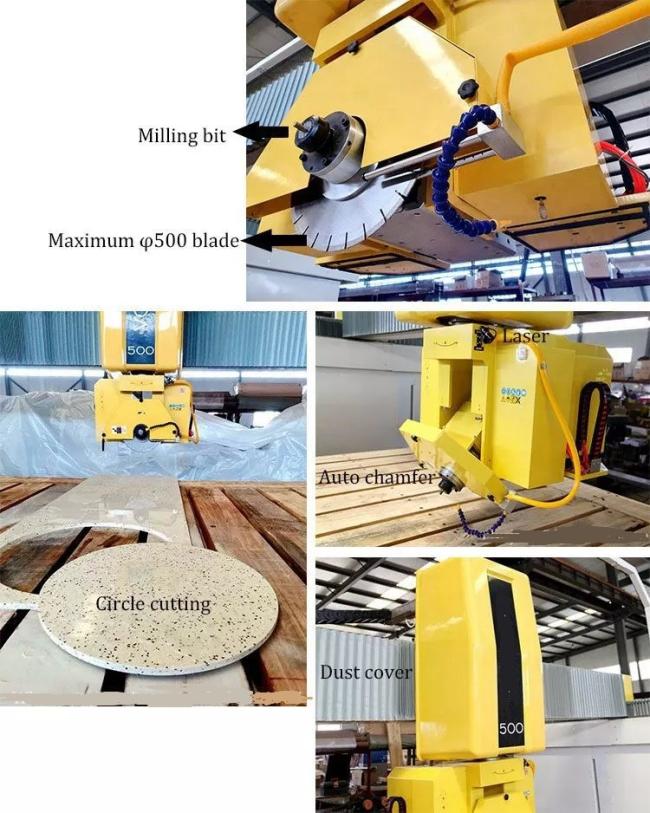

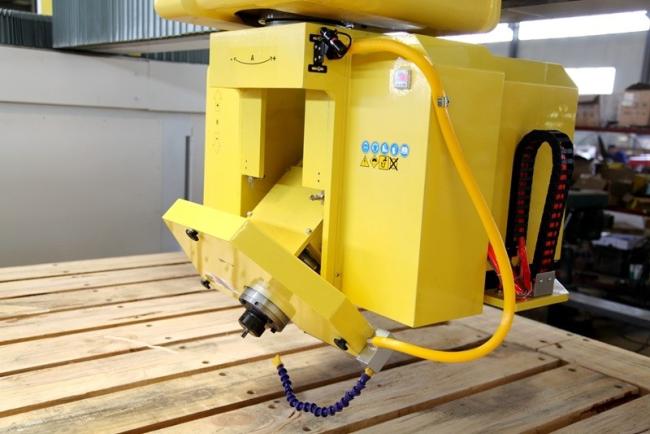

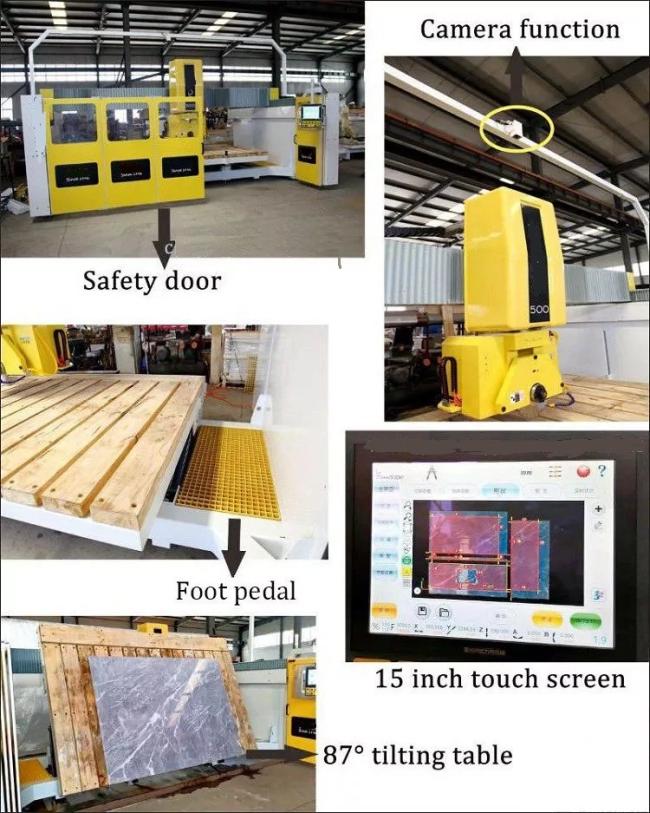

MCALT-500 is the new generation multi-function finalizing machine which is associated to be designed and constructed. With pattern functioning and advanced wise control system and synchronous CNC control system, the machine can be easily operated , and without knowing complicated CNC knowledge. This kind of machine can be used to realize some advanced functions like: Camera function---positioning typesetting, computerized way of measuring of plate size and tool size, the machine brain can rotate fish hunter 360 degrees and chamfer 90 degree. It could possibly cut, drill, position, dig round, generator, profile edge, start basin hole, oven hole, slash chopping and other multi use integration, with premium quality motor, high finely-detailed and fast swiftness. It can be well suited for quartz stone, rock piece, artificial stone, stone, marble and other large, medium and small stone beautification projects.
Characteristic:
you. Compact size without needing the land bottom.
2. With superior CNC control system and all routine operation, the machine can be managed without professional workers.
3. With powerful functions, the machine can work virtually all the jobs of a little factory.
4. With less electricity plus more efficiency, the cost is reduced much.
5. Large quality accessories and electric parts are employed to secure long lifespan and low cost.

Specification
Model
MCALT-E500
Programming method
CAD& Manual
Control method
CNC
Main motor power
11kw 380V(Customized)
R.P.M
1000-6000r/min
Blade size
350-500mm
Cutting thickness
140mm
Working table size
3800*2300mm
X axis working stroke
3800mm
Y axis working stroke
2300mm
Z axis working stroke
460mm
A axis working stroke
360 degree free rotation
B axis working stroke

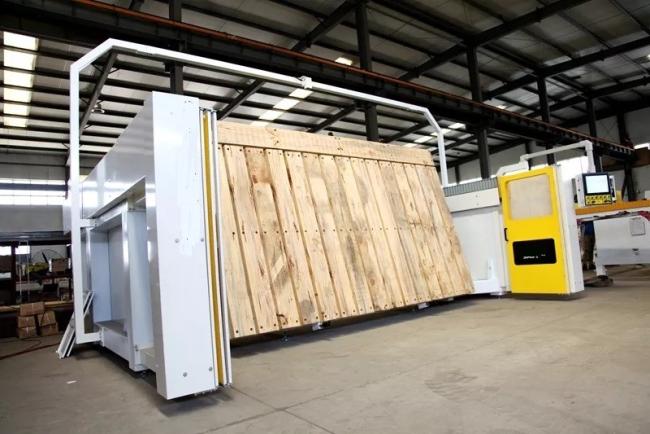

Auto 0-90 degree chamfer
Overall size
6307*4925*3414mm
Weight
6500KG

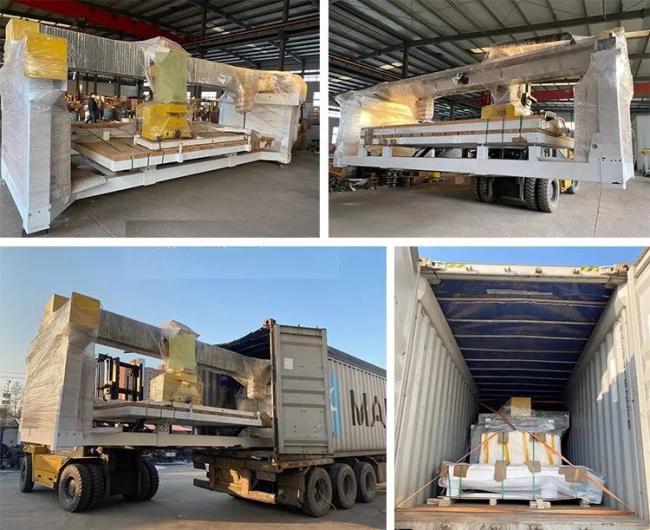

Package
1 x 40’HQ/OT container
