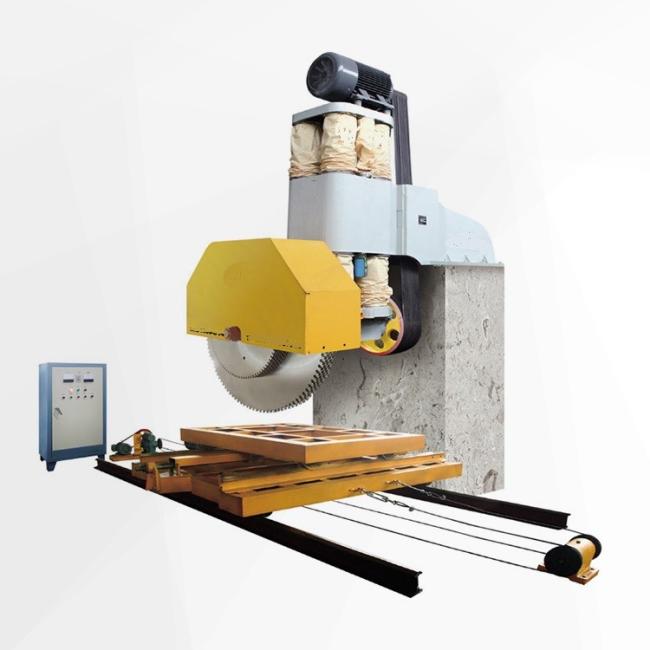

1600 Marble Stone Tile Sawing Machine

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 30 days after deposit
Brand: StoneSawMachine.com
Product Description

Organization Profile



Xiamen Sino Universal Machinery & Tools Co., Ltd ia a high-tech enterprise which is specialized in producing various types of stone digesting mechanical equipment. The particular main tools are double-blade stone cutter machine, single-blade stone cutter machine, hydraulic single-arm rock cutter, full-automatic constant grinding mill, multi-blade bridge-typed cutter, infrared edge trimmer, and so forth Sino Universal Stone Equipment Co., Ltd has thermostatic and filtered accurate spindle digesting and assmbling facilities and all key spare parts of products are brought in.



The products in our company have successsively passed the confirmation of national quality and environment management systems and rock machinery industry standard,

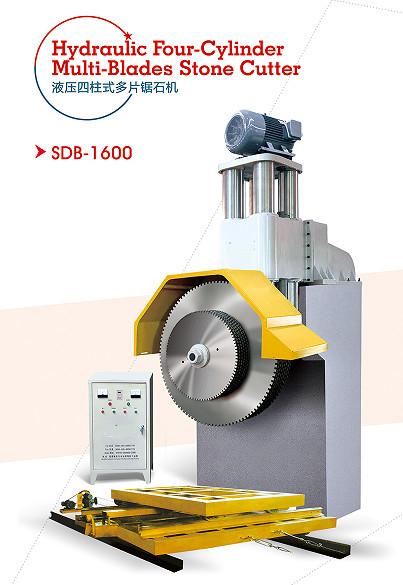

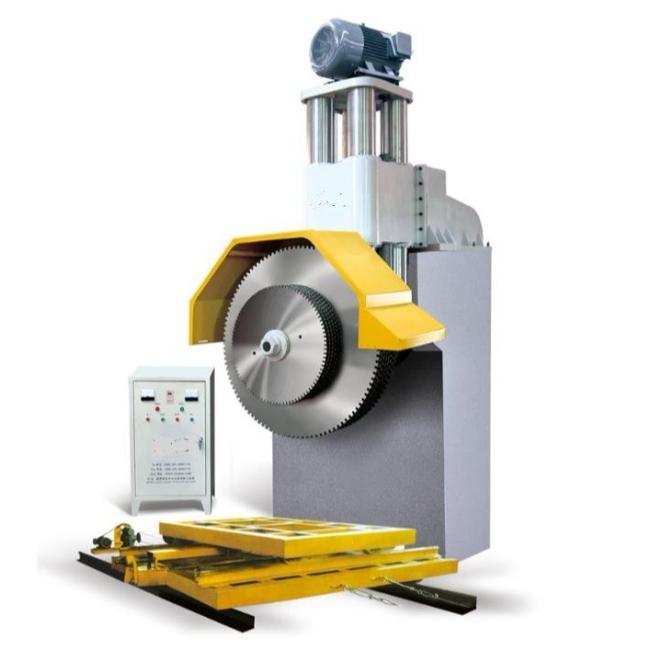

Hydraulic Stone Cutter--multi-blade stone cutting machine



DESCRIPTION

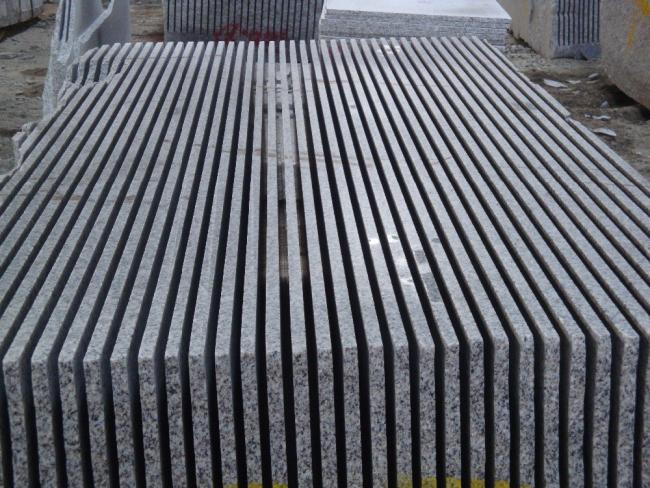

1. This particular multi-blade cutting machine cuts the prevents into slabs achieve to 20 PERSONAL COMPUTERS simultaneously

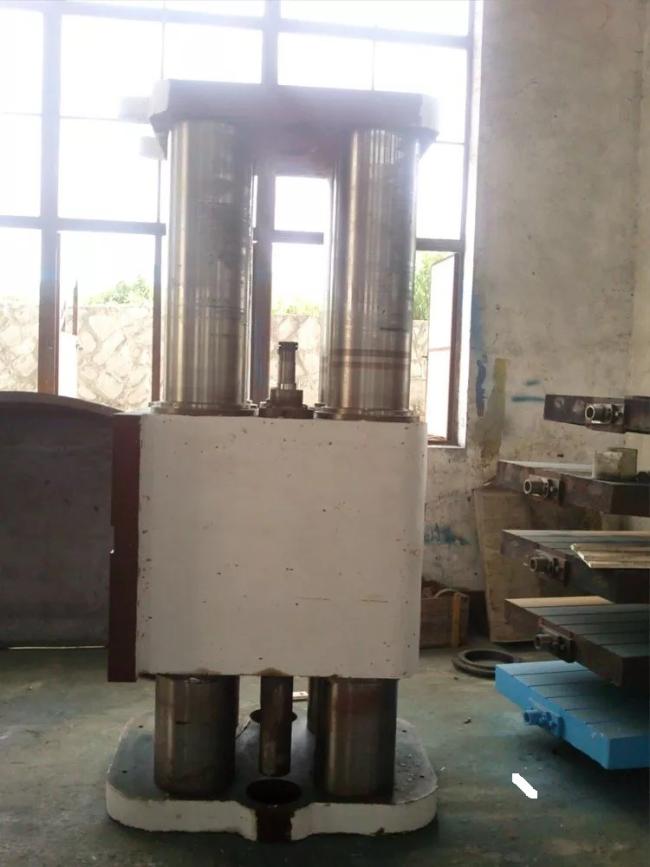

2. The particular machine adopts hydraulic system and suspension-typed structure.

3. Evaluating to the other multi-blade cutting machine without hydraulic system, They have many advantages: higher degree accuracy for cutting, higher speed of trimming, more difficult regret of inside framework, more steady and compact.



TECHNICAL DATA



Name Unit YDB1600D-12 YDB1600D-14 YDB1600D-16 SDB1600D-22
Diameter of blade mm 940-1600/2200 940-1600/2200 940-1600/2200 940-2200
Quantity of blade pc 12 14 16 22
Route of blade lift mm 930 930 930 990
Cutting dimension mm 3500×1300×950 3500×1400×950 3500×1500×950 3500*1600*950
Power of main-drive kw 55 65 75 110
Total power kw 59.4 69.4 79.4 114.4
Water consumption m3/h 20 24 27 33
Overall dimension mm 8600×5000×6000 8600×5000×6000 8600×5400×6000 8600*5400*6000
Approximate weigh kg ≈7800 ≈8200 ≈8600

9000
