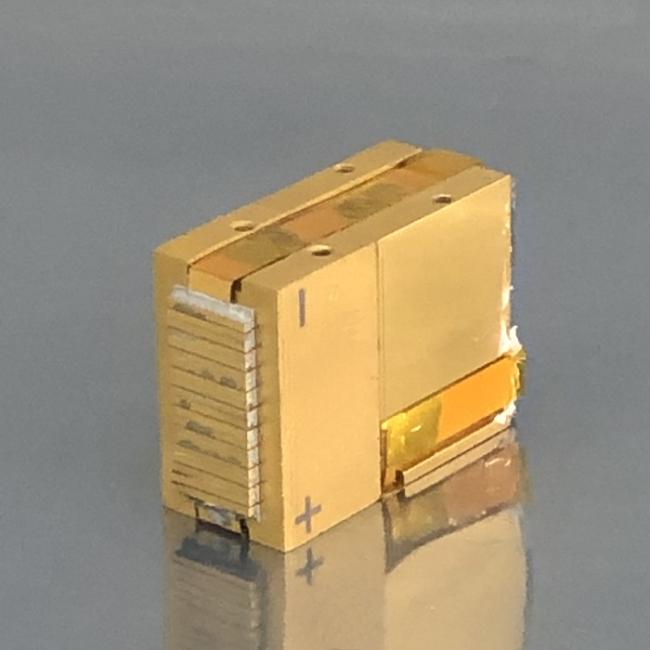

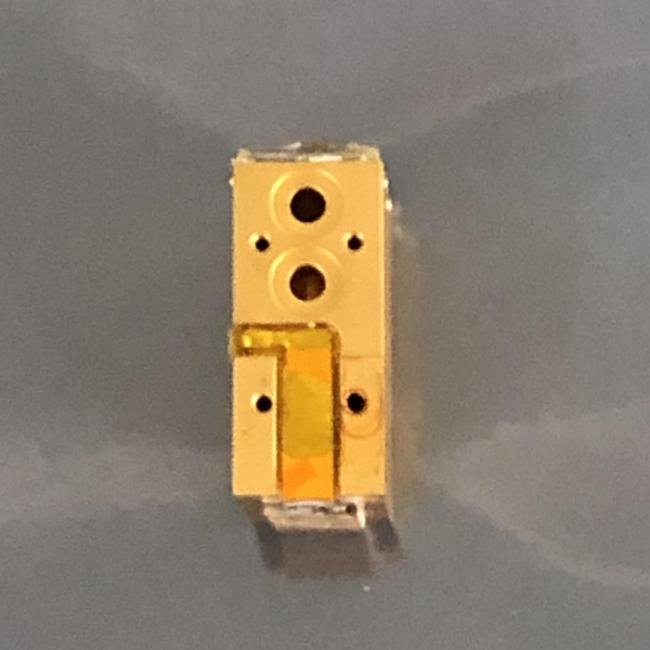

808nm Micro Diode Laser Bar Lightsheer Diode Laser Stack

Price Negotiable
Price: $1,000.00/pieces 1-2 pieces
MOQ: Negotiable
Delivery Time: Negotiable
Brand: Lasylaser
Product Description

germany laser bar for 808nm micro channel lightsheer diode laser stack /diode laser spare parts



Quick Details

>Diode laser bar from Germany

>lifetime: over 10000hours
>Typical wavelengths are 755nm, 808nm, 1060nm (others upon request)

>Special design for diode laser hair removal machine


Details
Details
Optical
Wavelength
755nm/808nm/1064nm
Working Mode
QCW
Output Power Per Bar
100W
Number of Bars
6
Bar to Bar Spacing
3.4mm
Fast Axis Divergence(FWHM)
~38Deg
Slow Axis Divergence (FWHM)
~12Deg
Pulse Width
10-400ms
Duty Cycle
1-40%
Electrical
Operating Current Iop
80-120A
Threshold Current Ith
15-20A
Operating Voltage Vop
10.5-10.8V
Power Conversion Efficiency
48%
Thermal
Operating Temperature
(No Condensation)
15~30℃
(No Condensation)
Storage Temperature
(No Condensation)
0-55℃
(No Condensation)


Others:

Power from 100W to 10000W is on your choice, pls contact us for more details.

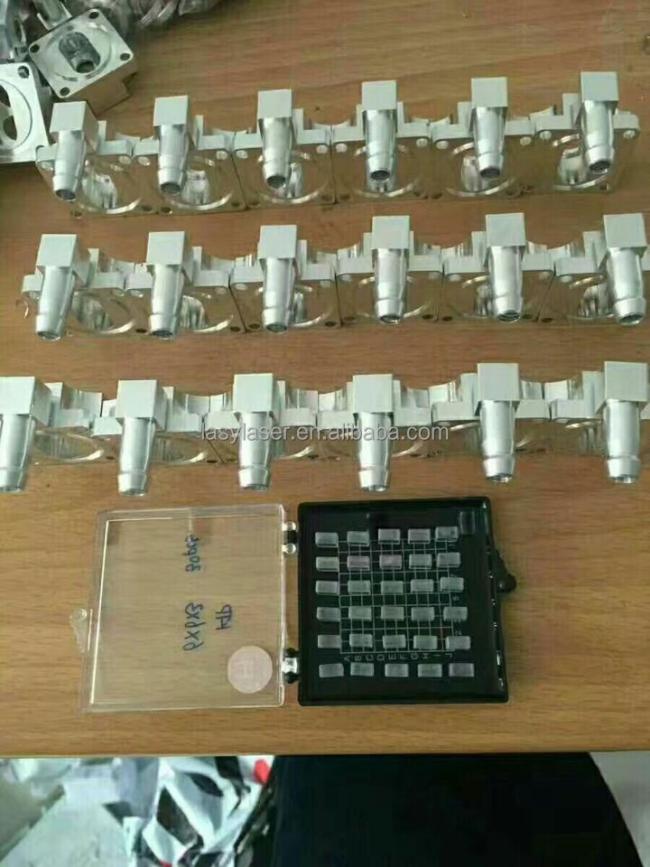

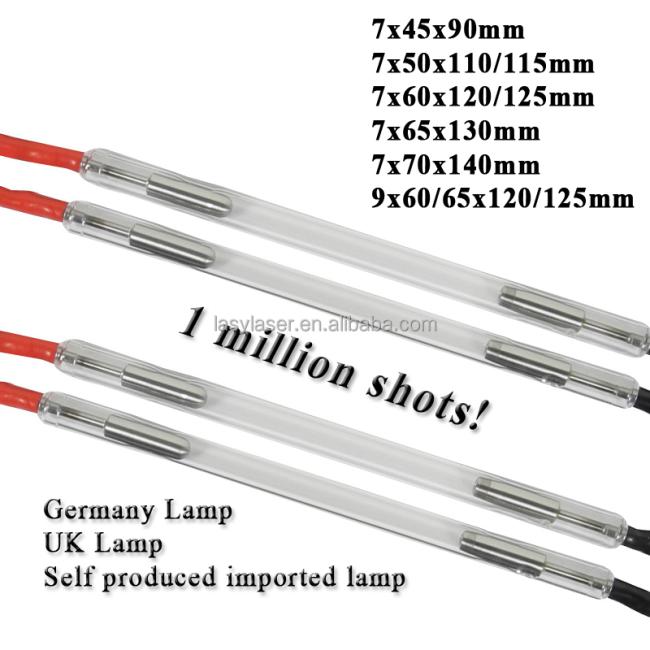

Other Laser parts we sell that:
