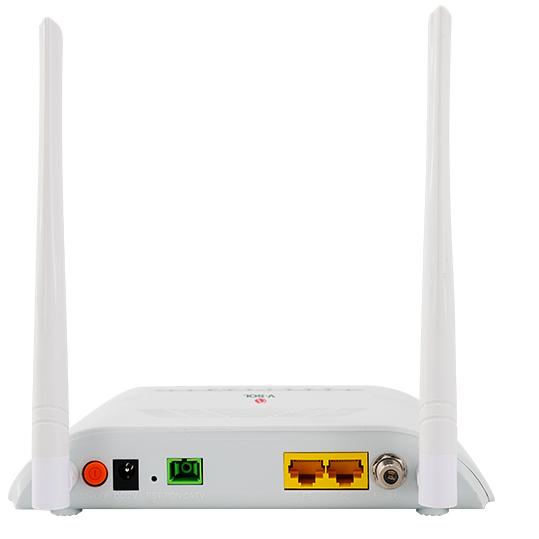

Fiber Optical Terminal Dual Mode ONU HGU 1GE 1FE CATV WiFi ONU
Dual Mode ONU Fiber Optic Modem Network Wifi 1GE 1FE Ftth Router Gpon Epon Onu Ont
Product Description
G/EPON 1GE+1FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.
Key Features
- Functions like transceiver diagnostic monitoring, transmitter disable, etc.
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
- Support NAT, Firewall function
- Dual Mode( can access gpon/epon olts ).
- Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
- Integrated OAM remote configuration and maintenance function.
- Support rich QinQ VLAN functions and IGMP Snooping multicast features..
Specifications
| Port Type | Function |
| PON | V2802W: SC/UPC type, single mode optical fiber cable V2802WT: SC/APC type, single mode optical fiber cable with WDM |
| GE,FE | Connect device with ethernet port by RJ-45 cat5 cable. |
| RST | Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings. |
| DC12V | Connect with power adapter. |
| CATV | RF connector. |
| Power On/OFF | Power turn on/off. |
| Parameter Name | Software Parameters |
| Basic |
Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support authentication SN/Psw/Loid/Loid+Psw |
| Alarm |
Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
| LAN |
Support Loop Detection Support Storm Control |
| VLAN |
Support 4K VLAN Support VLAN Tag/untag Support VLAN Translation Support VLAN Bound Support Auto VLAN Detection |
| Multicast |
Support IGMPv1/v2 Support IGMP Snooping Support MLD Max Multicast Group 64 |
| QoS |
Support 4 queues Support SP and WRR Support 802.1P |
| L3 |
Support DHCP/PPPOE/Static IP Support NAT Support DHCPv6 Server Support IPv4/IPv6 Static route Support IPv4/IPv6 dual stack |
| WiFi |
IEEE802.11b/g/n (TX power:17dBm/16dBm/15dBm),Up to 300Mbps Support Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Support multiple SSID and SSID conceal Support Wireless channel selection |
| CATV | Support CATV management |
Application
