5G 2.4G GPON ONU FTTH XPON IPTV 2GE WIFI POTS AC Dual Band ONT HG323DAC
GPON ONU 5G / 2.4G FTTH Xpon IPTV 2GE+WIFI+POTS AC Dual Band ONT HG323DAC
Product Description
HG323DAC dual bands xPON wifi router is based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high-quality VoIP as well. HG323DAC with 2GE+ 1 POTS+ WiFi HGU GPON/EPON terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. Support full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.
High Gain 4 Antenna, Wide Signal Coverage
4 x 5dBi high gain antennas with Realtek high performance CPU, stronger wireless signal

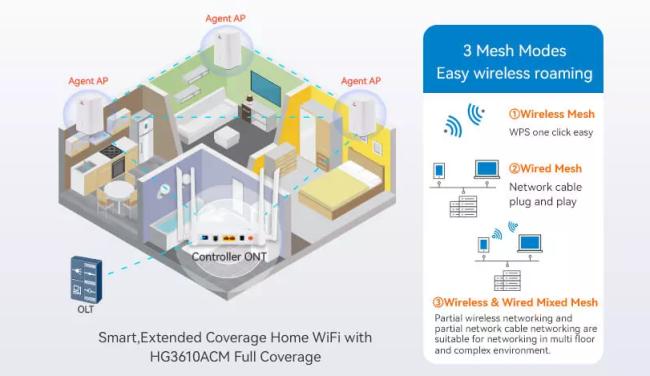

EasyMesh : Smart, Extended Coverage Home WiFi
Key Features
- Support full management of HGU functions by VSOL OLT
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
- Support 802.11n/ac Wi-Fi(4T4R) function
- Support NAT, Firewall function
- Support IPv4 and IPv6 dual stack
- Plug and play, features auto-detecting, auto[1]configuration, and auto firmware upgrade, etc.
- Integrated OAM/OMCI remote configuration and maintenance function
- Support rich QinQ VLAN functions and IGMP Snooping multicast features
- Support SIP protocol
Application
FTTH, fixed network operators or cable operators. and others
Specifications
| LED | ON | Blink | OFF |
| PWR | The device is powered up | — | The device is powered down |
| PON | Green is registered to the PON system | Green is registering to the PON system | Green is not registered to the PON system |
| LOS | Device does not receive optical signals | — | Device have received optical signals |
| WAN | Route WAN connect to internet. | — | Router WAN do not connect to internet. |
| WiFi(2.4/5.0G) | WiFi turned on | WiFi turn on and with ongoing data transmission | Device is power off or WiFi turned off |
| PHONE | Device has registered to the soft-switch, but without ongoing data transmission | Phone hooks off or the port is with ongoing data transmission | Device is power off or not registered to the soft-switch |
| LAN1～LAN2 | Port is connected properly | Port is sending or/and receiving data | Port connection exception or not connected NA User is accessing User is logged in Userhas no access |
