1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps
Dual Mode ONU 1GE + 3FE + 2POTS + WiFi + USB HGU 2.4G Wireless 300Mbps
Product Description
HG326N can ideal for usage of telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband access, SOHO broadband access, video surveillance and other requirements by GPON/EPON Gigabit Ethernet products. The HG326N is based on the innovative Gigabit GPON/EPON technology, highly reliable and easy to deploy, with guaranteed QoS for different services. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

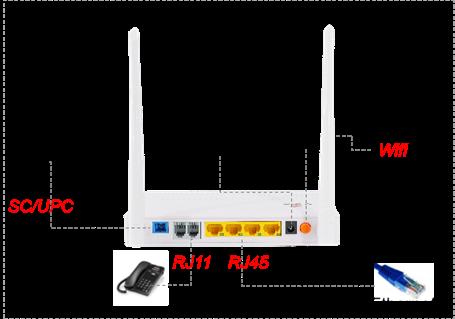

HG326N G/EPON is a GPON ONT device which support 1x1000Mbps and 3x10/100Mbps fast ethernet ports, 2x POTS voice ports and WiFi access for laptop. It can also be applied to a wide temperature environment, and also built-in a powerful firewall in it.
GPON/EPON 1GE+3FE+2POTS+WiFi+USB ONU
Application
SMEs, Enterprise, FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance
Indicators
| LED | Mark | Status | Description |
| Power | PWR | On | The device is powered up. |
| Off | The device is powered down. | ||
| Registration | PON | On | The device is registered to the GPON system. |
| Off | Device is not registered to the GPON system. | ||
| Blink | Device is registering. | ||
| Optical signal | LOS | Blink | Device does not receive optical signals. |
| Off | Device has received optical signals. | ||
| WAN | WAN | On | WAN is effective. |
| Off | WAN is ineffective. | ||
| POTS | FXS | On | Device has registered to the soft-switch, but without ongoing data transmission. |
| Off | Device is power off or not registered to the soft-switch. | ||
| Blink | Phone hooks off or the port is with ongoing data transmission. | ||
| Ethernet |
ETH1~ ETH4 |
On | Port is connected properly. |
| Off | Port connection exception or not connected. | ||
| Blink | Port is sending or/and receiving data. | ||
| Pair | WPS | On | WPS client is connected. ( LED turn off after 5 minutes of successful connection) |
| Off | Does not use WPS or WPS client is connected.( LED turn off after 5 minutes of successful connection) | ||
| Blink | WPS client is connecting. |
| Technical item | HG326N |
| 1GE+3FE+2POTS+WIFI4 | |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 4×10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless |
Compliant with IEEE802.11b/g/n 2.4GHz Operating frequency: 2.400-2.483GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| POTS interface |
1×FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 |
| LED | 11, For Status of PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS. |
| Operating condition |
Temperature: 0℃～+50℃ Humidity: 5%～90%(non-condensing) |
|
Storing condition |
Temperature : -30℃～+75℃ Humidity :5%～90%(non-condensing) |
Order Information
| Product model | Product specification | Chipset | RAM |
| HG326N | 1xG/EPON+1GE+3FE+2xPOTS+WiFi+USB | Realtek | 128MB |
