HG3221D Gigabit GPON ONU 4GE 2POTS 1USB Dual Band WiFi 5
HG3221D GPON ONU 4GE+2POTS+1USB Dual-Band Gigabit WiFi 5 Router
Product Description
HG3221D-4G2S2NAC 4GE+2POTS+1USB Dual-Band Gigabit WiFi 5 Router is designed for fulfilling FTTH and triple play service demand of fixed network operators. TThese boxes are based on the mature Chipset (ZTE+MTK) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

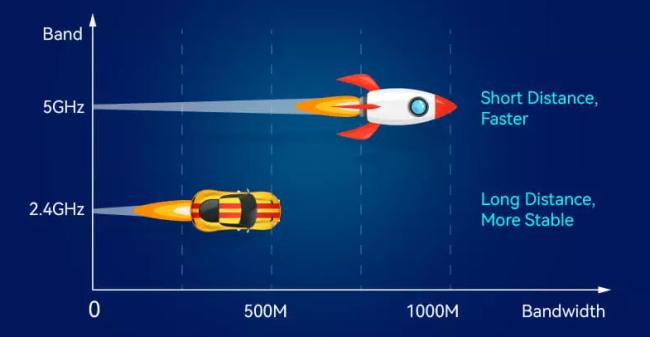

Dual-band Concurrency WiFi 5
HG3221D support 2.4GHz/5GHz dual-band concurrency, speed can reach up to 1.2Gbps (866Mbps on 5GHz band and 300Mbps on 2.4GHz band) Intelligently select the best band signal, Faster speed is the best advantage of 5GHz band at short distance. On the contrary, maintaining stable signal is the best advantage of 2.4GHz band at long distance.
Key Features
- XPON Dual Mode
- Plug and play,auto-detecting, auto-configuration
- 802.11n/ac dual band WiFi
- Support full management of HGU devices
- Support guaranteed QoS
- Support IPv4/IPv6
Application
High speed internet, FTTH, fixed and wireless internet, SOHO, small office etc.
Specifications
| UNI |
•1×SC/UPC for XPON
•4×RJ45 for GE interface
•1×RJ11 for VoIP(2×RJ11 for VoIP)
|
| PON Interface |
•1 XPON port(EPON PX20+ and GPON Class B+)
•SC Single Mode,Receiving sensitivity: ≤ -28dBm
•TX optical power: 0～+4dBm
•RX optical power: -8 to -25 dBm
•Transmission distance: 20KM
•RX 2.488Gbps, TX 1.2488Gbps
|
| Wavelength | Tx-1310nm, Rx-1490nm |
| Antenna | 4 ×5dBi external antennas |
| USB | 1×USB 3.0 for Shared Storage/Printer |
| Dimension | 205mm×140mm×37mm(L×W×H) |
| Net weight | 0.32Kg |
| Operating condition |
Operating temp:0 ~ +55°C Operating humidity:5 ~ 90% (non-condensed) |
| Storing condition |
Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V,1.5A, external AC-DC power adaptor |
| Power supply | ≤10W |
| Interface | 4GE+1POTS+USB3.0+WiFi5 |
| 4GE+2POTS+USB3.0+WiFi5 | |
| Indicators |
PWR,PON ,LOS,WAN,WiFi,FXS, ETH1~4,WPS,USB |
