Indoor 5G CPE Router Wifi Internal Antennas 802.11 a / B / G / N / Ac / Ax
5g cpe router 5g indoor cpe internal antennas 802.11a/b/g/n wifi router
Product Description
5G/4G/Wired Broadband Internet, more stable and faster. 5G/4G Global Communication, supports Qualcomm snapdragon x55, covers the global mainstream frequency band, is stable and does not drop the line, can support 4K video playback without jamming.
Fashion Industrial Design
Connect Anywhere More Freely
lightweight and portable designed makes it possible to enjoy
ultra-fast broadband connections for SME and smart home.
5G Super Uplink. Leading-Edge Upload Technology, Revolutionary Experience.
Thanks to the innovative smilembb 5G Super Uplink, merging TDD with FDD,
5G CPE Router will offer incredibly fast upload speed.
It allows you to upload videos in an instant,
livestream in 8K/4K high-definition graphics and unlock the full potential of AR/VR.
Embrace fresh, new experiences with faster upload speed.
Specifications
| Technical parameter | |
| chipset | Qualcomm SDX55+QCA6391 |
| Network Modes | NSA&SA |
| Frequency bands | 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n66/n71/n77/n78/n79 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B25/B26/B30/B32/B66/B71 TDD-LTE: B34/B38/B39/B40/B41/B42/B46/B48 WCDMA: B1/2/4/5/6/8 |
| Protocol Version | 3GPP Release 15 |
| MIMO for wireless | 5G SUB6G+LTE Support 4*4MIMO |
| LTE+5G EN-DC Peak Data Rate | 5G Sub6G DL Peak Data Rate :100MHZ+256QAM+4*4MIMO: 1.43Gbps LTE FDD CAT20 DL Peak Data Rate:256QAM+5CA+4*4MIMO:2.0Gbps LTE+5G EN-DC can up to 3.43Gbps |
| WLAN | 802.11a/b/g/n/ac/ax 2.4GHz 2*2MIMO 802.11ax :575Mbps 5GHz 2*2MIMO 802.11ax : 1.2Gbps DBS can up to 1.775Gbps |
| Dimension | 190*124*70mm |
| Power supply | 12V/1.5A |

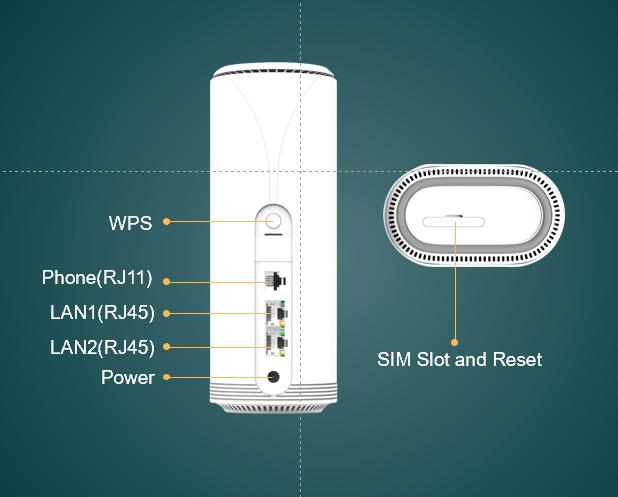

| Physical | 1*1Gibabit WAN/LAN RJ45 Port 1*1Gibabit LAN RJ45 Port 1*RJ11 Port 1*1.8V&3V 4FF (U)SIM 1*DC Input Port |
| LED | Power,WIFI, Network, Signal*3 |
| Button | Reset, WPS |
| VPN | VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall, Local & Remote management |
Application
