CPE Outdoor 5G Wifi Router SUB6G + LTE 802.11 a / b / g/ n
5G CPE Router 5G Outdoor CPE Full compliance to 3GPP Wifi Router
Product Description
XGC5552 is a new 5G outdoor CPE, which supports high-performance 5G technology. It supports POE power supply, has waterproof and lightning protection design.
Key Features
- Qualcomm Snapdragon™ X55
- Full compliance to 3GPP Rel15
- G Outdoor CPE Comply with ESD/lightning/water
- •POE Power supply:48V/0.5A
- Support 2.5Gigabit LAN Port
Fashion Industrial Design
Connect Anywhere More Freely
lightweight and portable designed makes it possible to enjoy
ultra-fast broadband connections for SME and smart home.
5G Super Uplink. Leading-Edge Upload Technology, Revolutionary Experience.
Thanks to the innovative smilembb 5G Super Uplink, merging TDD with FDD,
5G CPE Router will offer incredibly fast upload speed.
It allows you to upload videos in an instant,
livestream in 8K/4K high-definition graphics and unlock the full potential of AR/VR.
Embrace fresh, new experiences with faster upload speed.
Specifications
| Technical parameter | |
| chip platform | Qualcomm SDX55 |
| Network Mode | Support 5G SA/NSA, ENDC , DL 4*4 MIMO |
| Frequent band |
5G Sub-6: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, B20, B25, B28, B32 LTE TDD: B34, B38, B39, B40, B41, B42,B43 WCDMA: B1, B2, B5, B8 |
| Protocol Version | 3GPP Release 15 |
| MIMO for wireless | 5G SUB6G+LTE Support 4*4MIMO |
|
5G+LTE EN-DC Peak Data Rate |
5G Sub6G DL Peak Data Rate :100MHZ+256QAM+4*4MIMO: 1.43Gbps LTE FDD CAT20 DL Peak Data Rate:256QAM+5CA+4*4MIMO:2.0Gbps LTE+5G EN-DC can up to 3.43Gbps |
| Wi-Fi Standard |
802.11a/b/g/n 2.4GHz 1*1MIMO :150Mbps |
| Size | 204*99.5*56mm |
| Weight | 810g |
| Power supply | POE (48V/0.5A) |
| Physical interface |

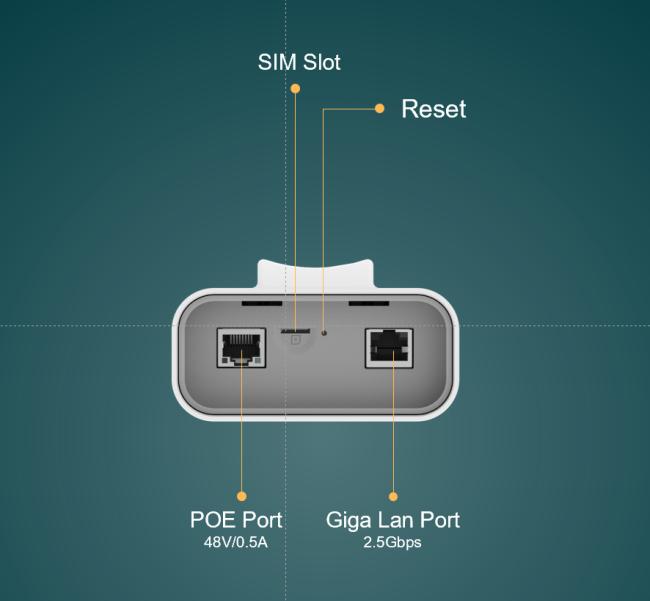

1*2.5Gibabit WAN/LAN RJ45 Port 1*1.8V&3V 4FF (U)SIM 1*POE RJ45 Port |
| LED | 5G Network,4G Network, WIFI, |
| Button | Power,Reset |
| Characteristic |
VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall, Local & Remote management |
Application
