Outdoor 4G CPE Router LTE IP65 Waterproof Signal strength LED
4G CPE Router LTE 4G Outdoor CPE Router with IP65 Water and Dust Proof
Product Description
XKC7243 is a highly advanced 4G outdoor CPE Router, it provides a high throughput data transmission network for residential, business and enterprise users, Customers enjoy an easy plug & play broadband access solution.
Highlights
- 3GPP R10/11 CAT6
- 4G Outdoor CPE
- IP65 proof
- PoE Power Supply

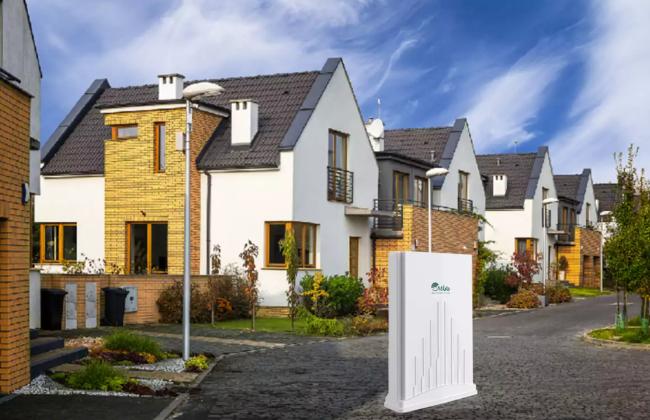

- Usage scenario: Outdoor, Home, office, etc.
4G Outdoor CPE Router
3GPP R10/11 CAT6 | CBRS Supported | PoE Power Supply
Adopting 4×4 MIMO, XKC7243 4G outdoor CPE Router doubles the peak LTE speed to 300 Mbps.
The newly designed LTE antennas receive more signals, thus further enhance the speed
especially in 4G weak signal area.

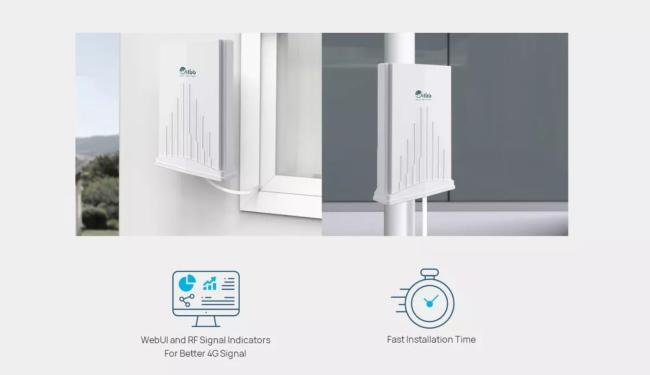

Flexible installation: wall and pole mounted.
Specifications
| Technical parameter | |
| Chip platform | GCT GDM7243QT |
| Frequency band |
FDD 1/3/7/8/20/28 TDD 38/40/41/42/43/48 |
| Protocol version | 3GPP Release 10/11 CAT6 |
| LTE Speed |
TDD DL 220Mbps/UL 15Mbps (Config 2:7) FDD DL 300Mbps/UL 75Mbps |
| Water and Dust proof | IP65 |
| Size | 250mm x 168mm x 58.5mm |
| Power Supply |
24V non-standard POE default IEEE 802.3at compatible POE customized |
| Power adapter |
Input: AC 90~240V Output: DC 24V/0.5A |
| Physical interface | 1 x RJ45 10/100/1000Mb/s POE, 1 x SIM Slot (1.8V/3.0V 2FF) |
| LED | 4 LED Indicators (PWR, NET, SIM, RF Signal) |
| Button | Reset(Pin Hole) |
| Characteristic | VPN Support (IPsec, L2TP over IPsec, GRE over IPsec, L2TP V2/V3, GRE L2/L3, PPTP), Firewall, Local & Remote management |
