FTTH FTTX Fiber Optic GPON OLT 8 PON Port L3 10G Mini V1600G1
GPON OLT 8 PON Port Ftth Fttx Fiber Optic L3 10g Mini OLT GPON V1600G1
Overview

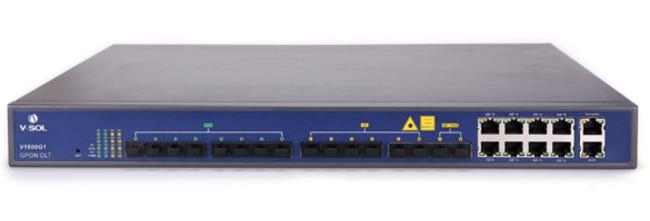

V1600G1 8 ports GPON OLT product are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.
Functional characteristics
| Item | V1600G0 GPON OLT |
| Satisfactory standard |
Ø Meet ITU-T G984/G.988 standards Ø Meet China's relevant GPON standards |
| Easy to Manage | Ø Open to any brand of ONT |
| Fully open platform |
Ø Support static route, Ø Optional Support Dynamic route RIP v1/v2,OSPF v2 |
| High performance cost |
Ø 1U height compact design Ø Adopt mainstream chip scheme |
Software Feature
| Item | V1600G1 GPON OLT |
| Layer 2 |
Ø 16K Mac address; Ø Support 4096 VLANs; Ø Support port VLAN and protocol VLAN; Ø Support VLAN tag/Un-tag ,VLAN transparent transmission; Ø Support VLAN translation and QinQ; Ø Support storm control based on port; Ø Support port isolation; Ø Support port rate limitation; Ø Support 802.1D and 802.1W; Ø Support static LACP,Dynamic LACP; Ø QoS based on port, VID, TOS and MAC address; Ø Access control list; Ø IEEE802.x flow control; Ø Port stability statistic and monitoring; |
| Multicast |
Ø IGMP snooping; Ø 256 IP Multicast Groups |
| DHCP |
Ø DHCP server,DHCP relay,DHCP snooping; Ø DHCP option82; |
| Layer 3 |
Ø ARP proxy,1024 hardware Host Routes,512 hardware Subnet Routes; Ø Support 802.1X,Radius,Tacacs+; Ø Support IP source guard; Ø Support static route; Ø Optional Support Dynamic route RIP v1/v2,RIPng; Ø Optional Support OSPF v2/v3; |
| License Management | ONT limit | Limit the number of ONT registration, 64-1024, step 64. When the number of ONT reach the max number permit, add new ONT to system will be refused. |
| Time limit | Limit system used time, 31days. Equipment trial license, after 31days of running time, all ONTs be set offline. | |
| PON Mac Table | A MAC table of PON, including MAC address, VLAN id, PON id, ONT id, gemport id for easier services checking, troubleshooting. | |
| ONT Management | Profile | Including ONT, DBA, TRAFFIC, LINE, SERVICE, ALARM, PRIVATE profiles. All ONT features can be configured by profiles. |
| Auto learn | ONT automatically discovery, register, online. | |
| Auto configure | All features can be automatically configured by profiles when ONT auto online—plug and play. | |
| Auto upgrade | The ONT firmware can be auto upgraded. Download ONT firmware to OLT from web/tftp/ftp. | |
| Remote config | The powerful private OMCI protocol provides remote HGU configuration including WAN, WiFi, POTS, etc. | |
