MH Type Single Girder Gantry Crane Trussed Type 32 Ton
MH Type Single Beam Gantry Crane(Trussed Type)
MH Type Single Girder Gantry Crane Introduction
Truss crane in our group is of light dead weight, small loading capacity, and strong wind-resistant ability. With its simple structure, its construction cost is relatively low compared with ordinary box-shaped gantry crane.
MH Type Single Girder Gantry Crane Technical Parameter
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground |
ZDY21-4/0.82 ZDY21-4/1.52 |
YZY22-4/1.52 YZR132M2-6/3.72 |
YZR22-4/1.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
||
| Cabin |
ZDR100-4/1.52 ZDR112-4/2.12 |
YZR112L1-4/2.12 YZR160M1-6/2.12 |
YZR112L1-4/2.12 YZR160M2 |
YZR160M2-6/8.52 YZR160L2-6/112 |
YZR160M2-6/8.52 YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Safe features of Truss type single beam gantry crane
✔ Crane traveling limit switch
✔ Weight overload protection device
✔ Lifting height limit device
✔ Voltage lower protection function
✔ Phase sequence protection function
✔ Emergency stop function
✔ Rain cover for outside hoist, driving units, electrical cubicle.
✔ Warning indicator: flashing lights and warning sound.
✔ Wireless infra-detector for anti-collusion
1. Lifting capacity is 3.2ton to 32ton;
2. Span is 12-30m;
3. Lifting height is 9m;
4. Working duty is A5;
5. Working temperature is -20°C to + 50°C.
Truss Gantry Crane application
1. material stocks area
2. cement plant
3. granite industry
4. engineering industry
5. construction industry
6. shipping yards
7. road sides
8. mines plant
9. steel plant
10. concrete girder yard, etc
MH Type Single Girder Gantry Crane Advantage
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenance.

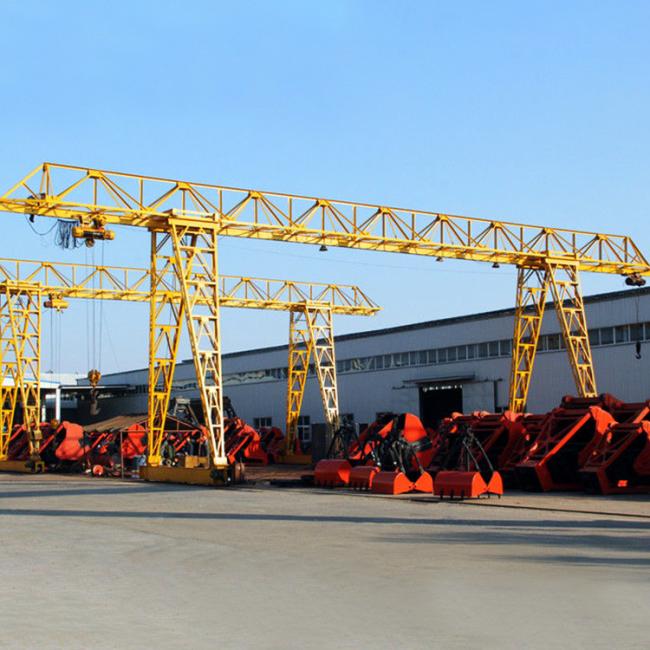

MH Type Single Girder Gantry Crane Image
