Workshop LDA 5 Ton Single Girder Eot Crane 380VAC Three Phase

5 Ton Overhead Crane Single Girder With Electric Hoist For Workshop

Overhead Crane Description:

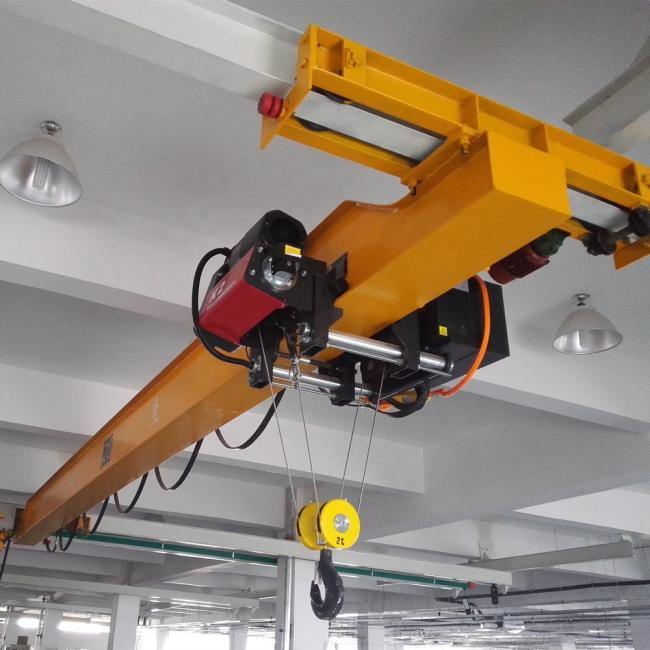

The single-girder bridge crane is a lifting device installed horizontally above the factory building, warehouse, and stockyard for material hoisting. It is shaped like a bridge since its ends rest on tall concrete columns or metal supports.

The bridge frame of the single-girder bridge crane runs longitudinally along the rails laid on the elevated sides on both sides. It can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and the most numerous hoisting machinery.

General characteristics of single girder overhead cranes:

1. Crane steel material: Q235B, Q345B/Q345D

2. The box structure makes it firm and stable, independent handle operation, and can also be equipped with wireless remote control, with powerful functions and reasonable appearance.

3. Wheels: All wheels are vacuum forged, (or according to customer requirements), and medium frequency quenching, made by our factory.

4. The wheels, wire ropes, gears, and couplings are produced and casted by CNC machine tools.

5. Motors: Nanjing Special Motors or Nanjing General Factory Motors, the quality is leading domestically.

6. Brand of main Electrical part: Schneider or Siemens brand.

7. Control method: Pendant line with pressing button control, remote control, operator cabin control.

Technical Data Sheetof single girder overhead cranes:

Safety protection of single girder overhead cranes:

1. Weight overload protection device

2. High-quality, long-term use, impact-resistant polyurethane buffer

3. Crane limit switch

4. Loss of pressure protection

5. Emergency stop system

6. Lifting limiter
