7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
7.5 - 31.5m Span Single Girder Overhead Cranes Wireless Remote Controlled
Single Girder Overhead Crane Description
The single-girder bridge crane is a lifting device installed horizontally above the factory building, warehouse, and stockyard for material hoisting. It is shaped like a bridge since its ends rest on tall concrete columns or metal supports.
The bridge frame of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated sides on both sides. It can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of lifting machinery.
Single Girder Overhead Crane Technical parameter
|
The general details of single beam suspension overhead crane |
|
|
Capacity |
0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton |
|
Span(rail to rail center) |
3m~16m |
|
Lifting height |
6m, 9m, 12m, 18m, 24m, 30m |
|
Lifting speed(m/min) |
8(or 8/0.8), 7(or 7/0.7) |
|
Cross travelling speed(m/min) |
10, 20, 30 |
|
Long travelling speed(m/min) |
10, 20, 30 |
|
Duty Class |
A3/A4 |
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
|
Working temperature |
-20~40℃ |
|
Control model |
Pendant pushbutton or remote control |
Single Girder Overhead Crane Features
1. The structure: hoist, single girder, end girders, electric control system, low height, small size, light weight, small pressing wheels;
2. The operation mode: cable operation, wireless remote control;
3. Advanced design concept the crane with outstanding distribution and performance, also at the maximum level of narrowing the lifting hook the operating limit of interval, effectively improves the space utilization, also make the customer may reduce the plant investment costs.
4. High performance braking system with anti-dust device can be automatically adjusted, safe service life more than 1000000 times.

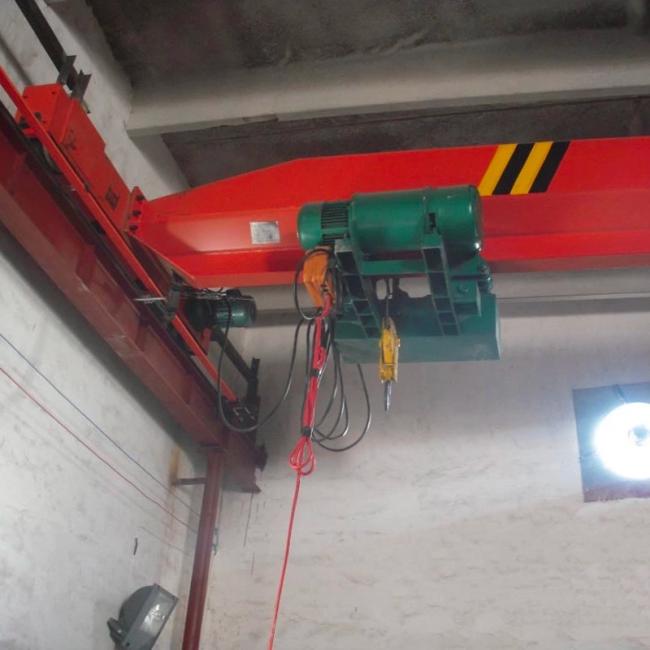

Single Girder Overhead Crane Image
