5t Working Duty A3 Single Girder Overhead Crane With Remote Control 20m/Min
5t Working Duty A3 Single Girder Bridge Crane With Remote Control
Single Girder Bridge Crane Introduction:
The single-girder bridge crane is a lifting device installed horizontally above the factory building, warehouse, and stockyard for material hoisting. It is shaped like a bridge since its ends rest on tall concrete columns or metal supports.
The bridge frame of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated sides on both sides. It can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of lifting machinery.
Single Girder Bridge Crane Technical Parameter:
| Lifting Capacity | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
| Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
| CD1 hoist | 8 (7) | 3.5 | ||||||||
| Traveling of electric hoist | 20 | 20 | ||||||||
| Traveling of crane | 20/30 | 20/30 | ||||||||
| Wheel diameter | Φ270 | Φ370 | ||||||||
| Width of trail | 37~70mm | 37~70mm | ||||||||
| Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
| Working Duty | A3 | |||||||||
| Power Supply | According to your demands | According to your demands | ||||||||
Single Girder Bridge Crane Advantage:
1) Light structure,easy installation and maintenance
2) Reasonable structure,strong bearing capacity
3) Low noise, soft starting and stopping
4) Safe and reliable operation
5) Low cost maintenance, long working life
6) Motor soft start,High protection level IP44,IP54,IP55

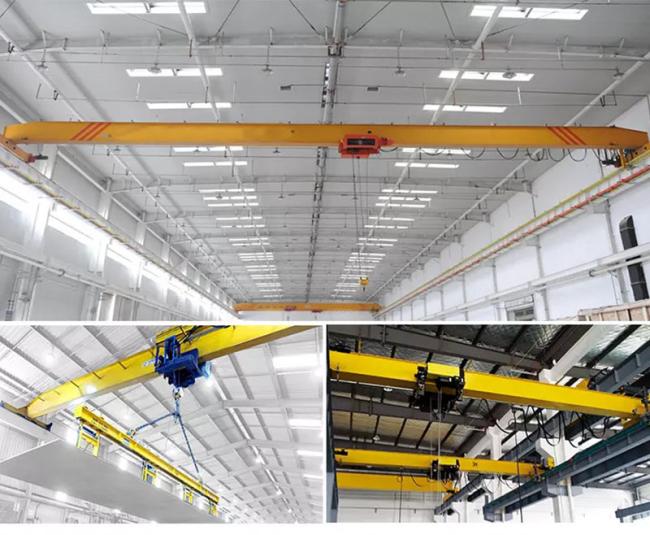

Single Girder Bridge Crane Details:
