QZ Model Double Beam Bridge Crane With Grab CE Certification

QZ Model Double Beam Bridge Crane Description

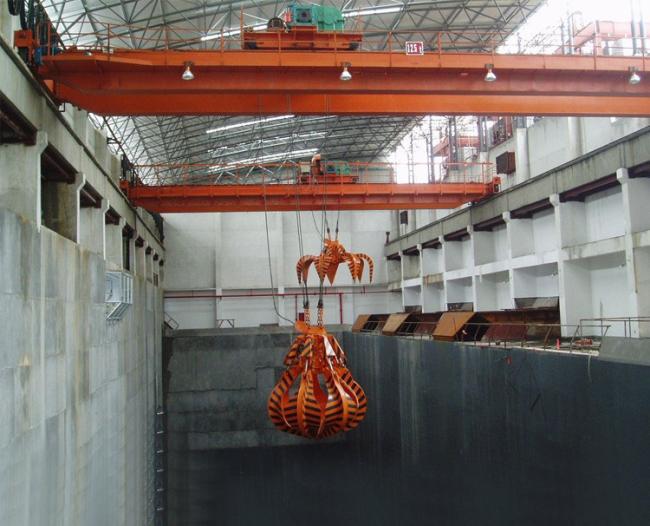

QZ type double girder grab bridge crane is widely used in power plants, freight yards, workshops, wharfs, etc., for bulk material loading and unloading transportation.
The rated lifting weight includes the dead weight of the grab. The opening direction of the grab has two types: parallel or vertical to main beams. The fetching device is a four-rope grab with double drums. The structure is simple and reliable.

When the bucket mouth is closed, the hoisting mechanism is started immediately, so that the four steel wire ropes are evenly loaded for hoisting work. . When unloading, only the opening and closing mechanism is activated, and the bucket mouth is opened immediately to tilt the material. . The structure of the grab bridge crane is basically the same as that of the hook bridge crane except that the lifting mechanism is different. In order to ensure the safety of the crane, railings and handrails are set up. The height of the railings is 1050mm, the spacing is 350mm, two horizontal bars are set, the bottom is set with a height of 70mm. Each transmission component is provided with a protective cover, each railing door is also provided with a safety switch, the end of the stroke is provided with a stop, and the sliding line is provided with a hook frame.

QZ Model Double Beam Bridge Crane Technical parameter
