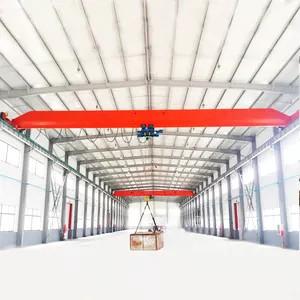

LDA Single Girder Overhead Crane Instruction

LDA model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole.

* Used together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 1 ton ~ 32 tons. The span is 7.5m~ 31.5m. Working grade is A3~A4.
* This product is widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
* This product has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation.
* And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.

LDA Single Girder Overhead Crane Technical Parameter

LDA Single Girder Overhead Crane Features

1. Heavy Duty and High Efficient;
2. Long Life Span: 30-50years;
3. Easy for Installation and maintenance;
4. Reasonable structure and strong rigidity;
5. Control method is cabin control or remote control;
6. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
7. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

LDA Single Girder Overhead Crane configuration

1. Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
2. Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
running.
3. Schneider main electric parts are used for durable and safe operation.

LDA Single Girder Overhead Crane Safety device

1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Lifting limit switch and traveling limit switch.
4. Emergency stop system.
5. Zero voltage protection.
6. Phases protection device and so on.

LDA Single Girder Overhead Crane Detailed Images
