Insulation Type Double Girder Overhead Crane QY Model
QY Model Insulation Type Double Girder Overhead Crane
QY Model Double Girder Overhead Crane Introduction
QY type insulated double-girder bridge crane is suitable for factory workshops for smelting aluminum, magnesium and other electrolytic non-ferrous metal materials. The crane consists of a box-shaped bridge, a cart operating mechanism, a trolley, and electrical equipment.
In order to prevent the current on the live equipment from being transmitted to the crane through the hoisted components during the working process, endangering the life and equipment of the driver, several insulating devices are installed at the appropriate parts of the crane. The cranes are all heavy duty. To ensure lifting, the main lifting mechanism is equipped with double brakes. All mechanisms are operated in the driver's cab.
QY Model Double Girder Overhead Crane Technical Parameter
|
Lifting weight(t) |
5 |
10 |
|
16/3.2 |
20/5 |
|||
|
Span(m) |
10.5~31.5 |
|||||||
|
Max Lifting height(m) |
16 |
16 |
Main hook |
16 |
12 |
|||
|
Auxiliary hook |
18 |
14 |
||||||
|
Working class |
A6 |
|||||||
|
Speed (m/min) |
Hoisting |
15.5 |
10.4 |
Main |
10.7 |
9.8 |
||
|
Auxiliary |
14.6 |
15.5 |
||||||
|
Traveling of crab |
37.2 |
43.8 |
|
44.6 |
44.6 |
|||
|
Traveling of trolley |
92. 7 93.7 |
92. 7 93.7 86.5 |
|
76/89 |
76/89 |
|||
|
Motor (type/kw) |
Hoisting |
15 |
22 |
Main hook |
37 |
45 |
||
|
Auxiliary |
11 |
15 |
||||||
|
Traveling of crab |
1.5 |
2.2 |
|
3.7 |
3.7 |
|||
|
Traveling of trolley |
2*5.5 2*7.5 |
2*5.5 2*7.5 |
|
2*7.5/2*11 |
2*7.52*11 |
|||
|
Steel track recommended |
trolley |
18kg/m |
24kg/m |
|||||
|
crane |
43kg/m |
43kg/m or QU70 |
||||||
|
Power source |
3P A.C 50Hz 380V |
|||||||
QY Model Double Girder Overhead Crane Specifications
(1) The bridge frame adopts box-shaped main beam, which is automatically welded by submerged arc welding.
(2) The electric conduction of the trolley adopts a new I-beam track cable conduction device, which is reliable.
(3) The hoisting mechanism can also be provided with another set of devices as required. Increase reliability.
(4) Standardization, serialization and generalization of parts and components.
(5) The operating room has a wide field of vision, and all the mechanisms are operated in the operating room, and the work operation is flexible.
QY Model Double Girder Overhead Crane Main Features
1. Overhead traveling on the steel structure, normally used in workshop, heavy working duty A7
2. Strong box type steel structure of crane.
3. Soft start, 3-5 speeds to operate, very stable to lift and running.
4. Six direction action, to make sure the enough wide working area.
5. Insulation function
6. Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection
Phase sequence protection
Zero position protection
Voltage loss protection
Limit switch and stopper for crane long traveling and cross traveling
Lifting overhigh and overlow limit switch
QY Model Double Girder Overhead Crane Safety Feature
1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch, Voltage lower protection function,
4. Emergency stop system,
5. Current overload protection system and so on!

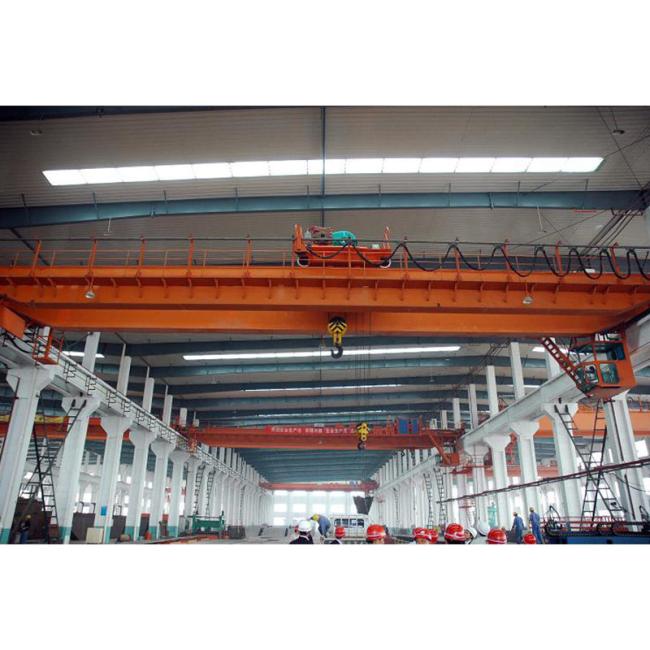

QY Model Double Girder Overhead Crane Detailed Images
