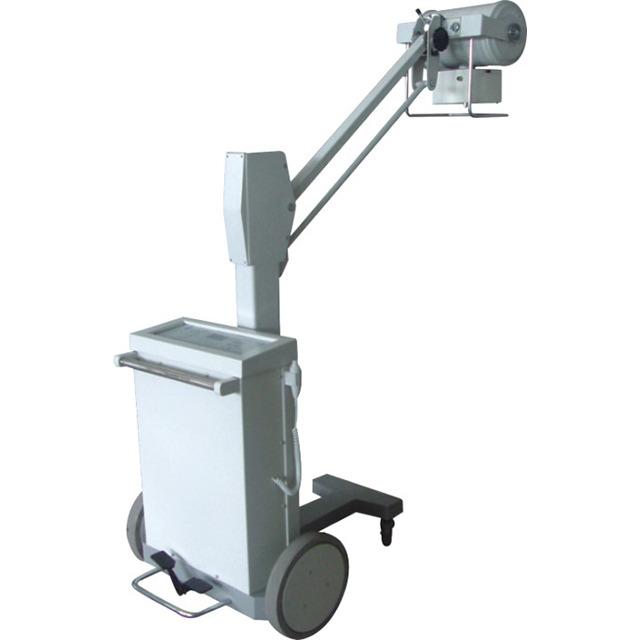

X Ray Portable Radiography Machine100ma Mobile High Frequency
Price:
$2,500.00 - $2,850.00/Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Logermay
Product Description
Product Description
Portable x-ray machine 100ma mobile high frequency digital fluoroscopy
x-ray takes X-ray photography of the head, extremities, chest cavity and other parts of human in the ward, operation room oroutdoors.
1.Two devices of standard & optional configuration, analog & digital display separately.
2.Human-computer interaction interface friendly; control unit is simple and easy to operate.
3.Moves flexible, safe and stable, independent and efficient, convenient maintenance.
4.Single focus, full-wave rectifier, combined x-ray generator.
5.Optional configuration digital machine with CLD back light display, microprocessor of control circuit, automatic testing and tracking system of supply voltage.
6.Premier high voltage with SCR zero passage control circuit, tube assembly temperature protection, load chains exposure time control, auto alarm, preheat filament, over-voltage & under voltage protection.
7.Wireless remote control exposure, radiation exposure acousto-optic indication and overload
indication
8. Adopt cantilever framework, third gear safe lock protection device, fixed or rotary column for
choice
Main features:
2.Human-computer interaction interface friendly; control unit is simple and easy to operate.
3.Moves flexible, safe and stable, independent and efficient, convenient maintenance.
4.Single focus, full-wave rectifier, combined x-ray generator.
5.Optional configuration digital machine with CLD back light display, microprocessor of control circuit, automatic testing and tracking system of supply voltage.
6.Premier high voltage with SCR zero passage control circuit, tube assembly temperature protection, load chains exposure time control, auto alarm, preheat filament, over-voltage & under voltage protection.
7.Wireless remote control exposure, radiation exposure acousto-optic indication and overload
indication
8. Adopt cantilever framework, third gear safe lock protection device, fixed or rotary column for
choice
Specification
|
Power Supply
|
Single phase AC three-wire system, voltage 180V ~ 250V;
Frequency 50Hz; source resistance ≤ 0.22Ω; Capacity 8kW; max current 37A ( instant ) |
|
|
Radiography |
Voltage: 50-90KV
|
|
|
|
Current: 16mA, 32mA, 63mA, 100mA
|
|
|
|
Time: 0.08-6.3s
|
|
|
X-ray tube focus
|
4.3 * 4.3 mm
|
|
|
Max. Photography scope
|
40cm * 40 cm ( when focus-skin distance is 1m )
|
|
|
Max. distance from focus of x-ray tube assembly to ground ( window downward ):
rotary column ≥ 177.5cm; Fixed column ≥ 172.5cm Min. distance from focus of x-ray tube assembly to ground ( window downward ): rotary column ≤ 53.5cm; Fixed column ≤ 48cm |
|
|
|
Width of tube assembly rotate around the axis of cantilever > 90°;
Width of tube assembly rotate forth around the axis of supporting stand: > 90° |
|
|
|
Dimensions of the complete unit moves ( L * W * H ):
a) 136cm * 69cm * 125cm ( for fixed column ) b) 136cm * 69cm * 134cm ( for rotary column ) |
|
|
|
Control distance of remote switch exposure: about 7m
|
|
|
|
X ray tube
|
Focus:0.6/1.5mm;Anode heating capacity:76kHU
|
|
|
Digital detector
|
Limited resolution:3.6lp/mm; A/D conversion:14bit
|
|
|
Anatomy program
|
24 kinds of memory choices
|
|
|
Size
|
290×260×230 mm
|
|
|
Weight
|
18.8kg
|
|
|
Accessories
|
Standard: the switch, cables.7
|
|
