Precision Motorized Goniometer Stage Optical Radian Tilt Slide Platform PT-GD313

The precision heavy-load motorized goniometer stage PT-GD313 is specially designed to solve the problems of medium and long travel, high load, high reuse frequency, etc. The main material is high-strength hard aluminum alloy, with black anodized surface, good wear resistance, generous and beautiful appearance. The precise worm gear and worm drive with high reduction ratio is used for precise positioning, and the arc V-shaped guide rail is guided, with high strength, strong load capacity and good durability. Two-phase stepping motor is equipped as standard, which can provide high resolution and positioning accuracy. This series of products are widely used in precision micro assembly, metrology, photon, optical alignment and other fields.

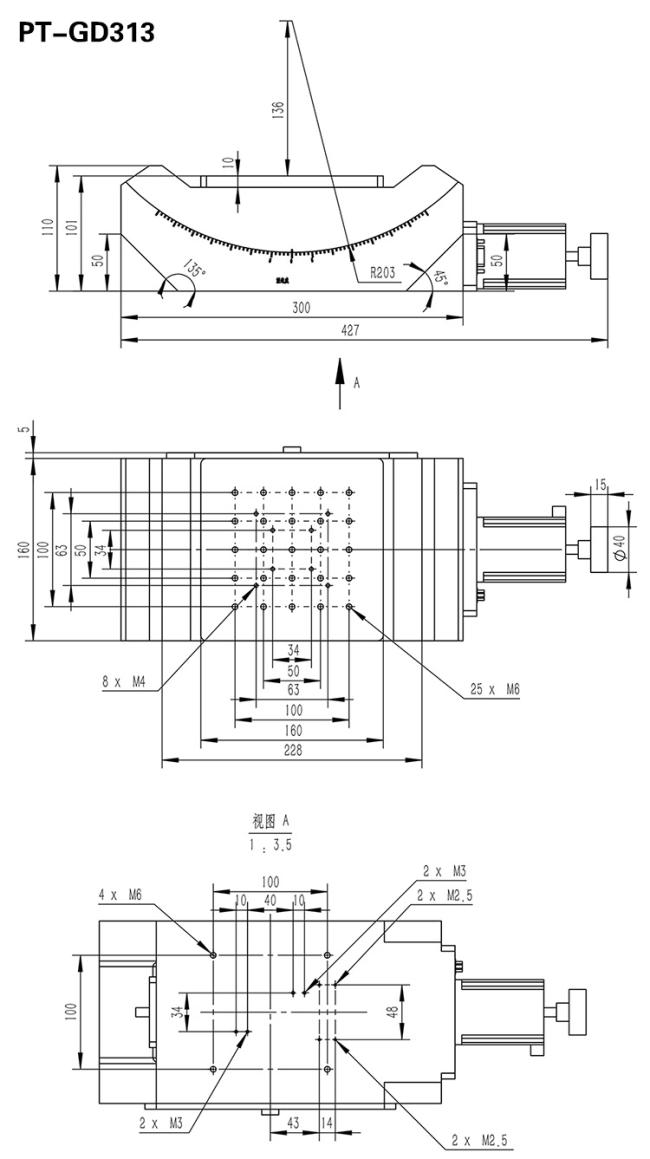

PT-GD313 motorized goniometer stage product specification:

Product features of heavy-load motorized goniometer stage:

The rotating shaft system is made by precision machining of multiple processes, with high matching accuracy, large bearing capacity and long service life.

The precision grinding worm drive is adopted, with high positioning accuracy and comfortable movement. It can rotate in any direction and in reverse direction with minimal air return.

Adopt high-precision arc V-shaped guide rail, with high strength, strong load capacity and good durability.

Stepping motor is equipped as standard to realize automatic tilt adjustment and automatic control.

Standard installation hole position, which can be used alone or matched with other products of our company to form a multi-dimensional motion system.

It has limit function, initial zero function, and can be replaced with servo motor and rotary encoder to accept product modification and customization.
