Small Motorized Electric Hydraulic Scissor Lift Lab Scissor Lift 6mm Stroke
Small Motorized Lab Jack Electric Elevator Lifting Platform PT-GD40
Characteristic:
The main material of high-strength aluminum alloy, with black oxide treatment on the surface, has good durability, uniform color and exquisite appearance. High strength, large load capacity and compact structure.
It adopts precise research and matching lead screw transmission, with smooth movement and strong durability.
Precise linear guide rail is adopted to ensure smooth movement.
It has limit function and initial zero function.
The connection between the table top and the bottom is convenient, and the applicability is strong.
It can be combined with other types of tables to form a multi-dimensional electric adjustment table, and can also be replaced with servo motors to accept product restructuring and customization.
Product specification
|
Model |
PT-GD40 |
|
Platform Size |
40×40mm |
|
Lifting stroke |
6mm |
|
Transmission mode |
1/2 wedge, grinding screw, pitch 1 mm |
|
Guide form |
Precision cross roller guide |
|
Main material |
High Strength Aviation Aluminum (6061) |
|
Surface treatment of main materials |
Black Anodic Oxidation |
|
Instrument weight |
0.3Kg |
|
Center load |
2.5Kg |
|
Resolution 8 subdivision/step |
0.000625mm/0.005mm |
|
Mix speed |
5mm/sec |
|
Accuracy of one-way positioning |
≤50μm |
|
Repeated positioning accuracy |
≤20μm |
|
Gap clearance |
≤10μm |
|
Surface runout |
≤30μm |
|
Motor type |
Double Out Shaft 20 Stepper Motor |
|
Stepping angle of motor |
1.8° |
|
Rated working current |
1A |
|
supply voltage |
24V±10% |
|
Joint |
DB9 needle connector |
|
Limit switch |
Photoelectric switch |

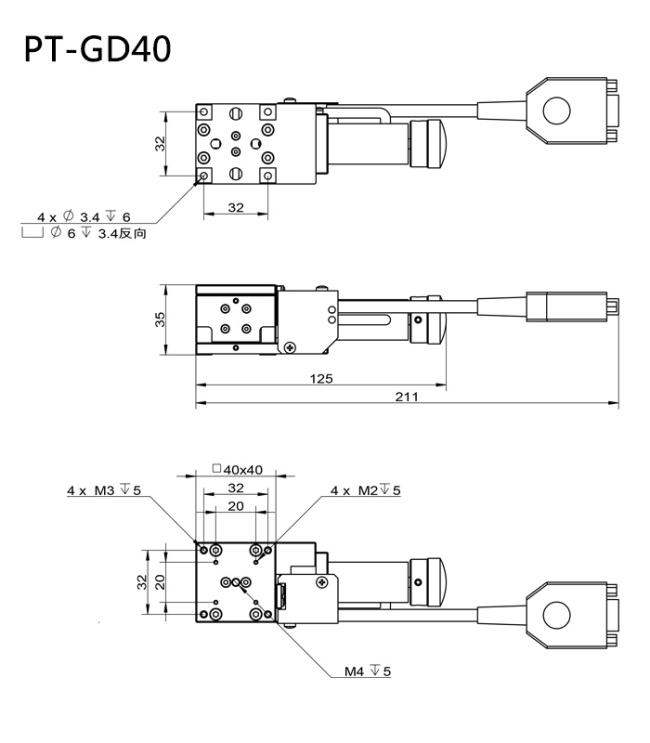

Product Dimension Map
