Platform 40*40 / 60*60mm , High Precision Motorized Linear Stage , Electric Translating Platform PP110-10

Product features

The main material is hard aluminum alloy, with black anodizing treatment on the surface, good wear resistance and beautiful appearance.

Imported cross roller guide rail is adopted, which has high strength, strong load capacity and good durability.

The guide rail mounting surface adopts precision machining technology, so that the product has high motion accuracy.

Cross roller guide rail is adopted and 28 stepping motor is equipped as standard, which can provide high resolution and positioning accuracy.

Product specification

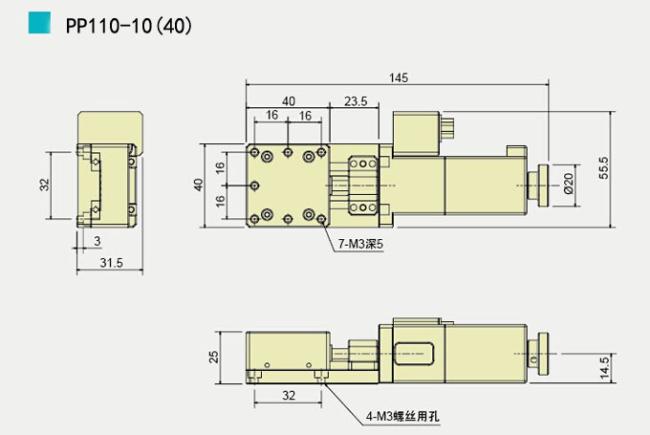

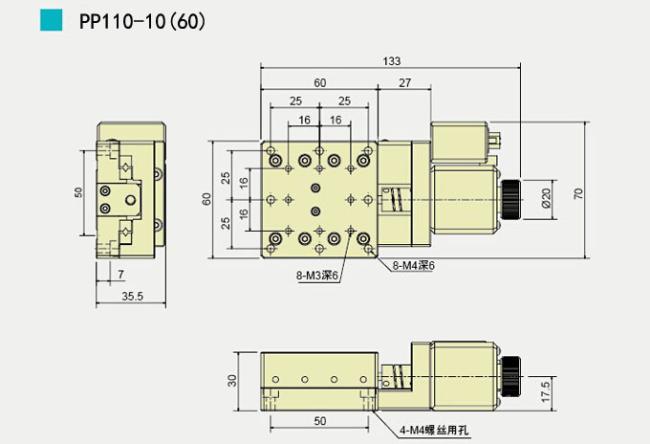

Product diagram

Motorized linear stage is widely used in scientific research, laser application, automatic measurement and detection instruments and equipment, industrial automation and other fields because of its high precision, high speed, large load-bearing, large stroke and automation; And realize automatic displacement control in vacuum, pollution, sterility, radiation and other environments.

Motorized linear stage system basically consists of three parts: displacement table; Drive motor; controller. The driving motor and controller mainly determine the driving torque, resolution, acceleration, signal processing, use functions (such as scanning, arc interpolation) and other performance parameters. The electric translation table is the heart of the system. The main technical indexes such as displacement accuracy, stroke, load, stability, applicable environment and shape length are determined by it.

Motorized linear stage is divided into various series according to the shape, length, stroke, rotation angle, guide rail form and driving mode, and can be combined arbitrarily to meet the requirements of space length, bearing size, adjustable number of degrees of freedom, manual and automatic.
