Electric Optical Precision Rotation Stage With 300mm Platform
Precision Rotary Desk Motorized Rotation Stage Electric Optical Rotating Platform
Precision electric rotary table (worm gear): PT-GD205
Product features
1. Driven by stepping motor to realize the automation of angle adjustment.
2. The worm gear and worm are made of wear-resistant materials and treated with special technology, so they have high wear resistance and high precision and reliability of the rotating table.
3. The imported high precision and high rigidity shaft system makes the rotation precision high, the bearing large and the operation stable.
4. The outer ring of the rotating table has scale, which is intuitive and convenient, and has physical zero position.
5. Standard interface to facilitate signal transmission.
This product adopts new structure and new technology. After strict testing, the key indicators have reached the level of similar products. The product is mainly used in laser precision machining, three-dimensional scanning measurement system and other application fields.
Product specification
|
Item Number |
PT-GD205 |
|
|
Structure Specifications |
Rotation Range |
360° of Continuous Rotation |
|
Diameter of Platform |
Ø300mm |
|
|
Drive Mechanism |
Worm Gear |
|
|
Worm Gear Ratio |
288 : 1 |
|
|
Stepper Motor (1.8°) |
57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle |
|
|
Material – Finish |
Aluminum Alloy - Black-Anodized |
|
|
Load Capacity |
55 kg |
|
|
Weight |
7.9 kg |
|
|
Accuracy Specifications |
Design Resolution |
0.01°=36”, Non-MS Driver 0.0005°=1.8”, 20MS Driver |
|
Rotational Velocity (Max) |
25°/sec |
|
|
Repeatability |
0.005°=18” |
|
|
Absolute On-Axis Accuracy |
0.01°=36” |
|
|
Run-Out of Top Plate |
10μm |
|
|
Backlash |
0.005°=18” |
|
|
Eccentricity |
20μm |
|
|
Lost Motion |
0.005°=18″ |
|
|
Parallelization |
100μm |
|

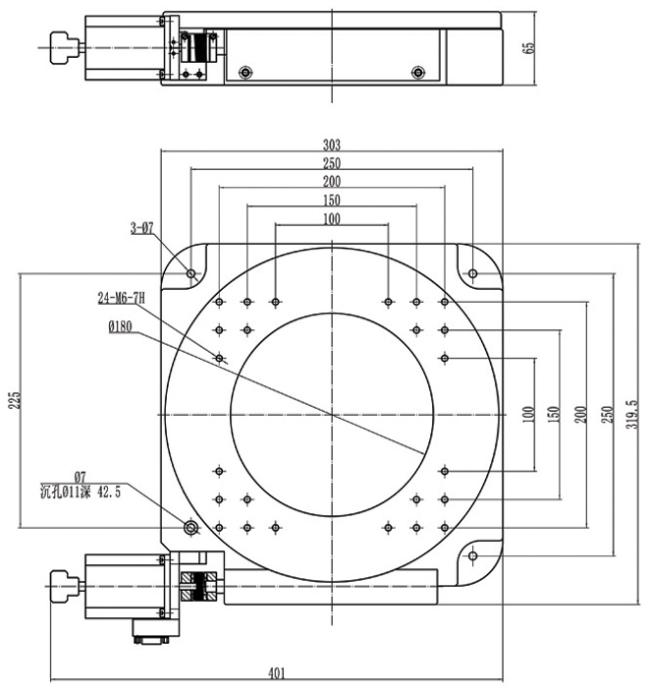

Product diagram
