360 Degree Continuous Rotation Worm Gear And Worm Motorized Rotation Stage

Precision electric rotary table (worm gear): PX110-60

The electric rotary table is a device used on the microscope to make the object can be observed in multiple directions and angles. It is mainly used in microscope and other equipment with extremely strict precision requirements, so its precision requirements are more strict than ordinary equipment. At the same time, it is also to achieve the measurement value and avoid the loss and impact caused by measurement errors, so as to avoid accidents to a certain extent.

Product features:

The stepping motor is equipped as standard, and the motion controller can realize automatic control.

The rotating shaft system is precision machined by multi-channel technology, with high matching accuracy, large bearing capacity and long service life.

The worm gear and worm structure with precise research and matching is adopted, which has comfortable movement, can rotate in any forward and reverse direction, and has small empty return.

The scale circle on the periphery of the table is a laser marking scale, which can rotate relative to the table to facilitate initial positioning and reading.

The stepping motor and worm are connected through high-quality elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces the eccentric disturbance and low noise.

It can be combined with other types of tables to form a multi-dimensional electric adjustment table.

Optional configuration can increase the limit function, increase the initial zero position, replace the servo motor, install the rotary encoder, and accept the product restructuring and customization.

The servo motor can be replaced to increase the speed and torque of the rotary table.


Product specification

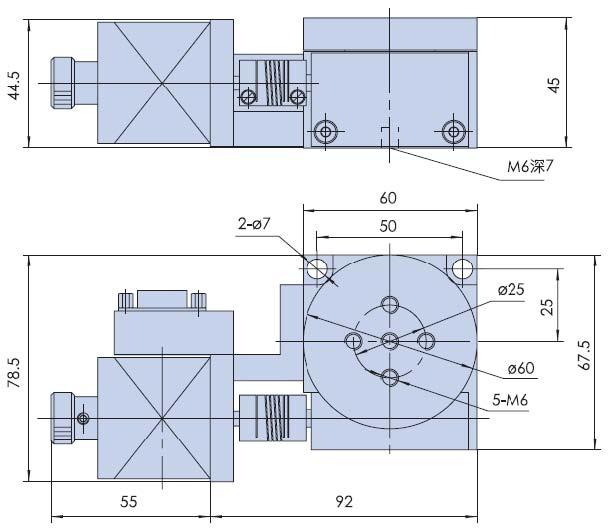

Product diagram
