Optical Sliding Lift Laboratory Scissor Lift Motorized Electric Lab Jack 30mm Travel
Electric Lifting Platform , Motorized Lab Jack , Elevator , Optical Sliding Lift
Precision electric lifting platform (direct operation) : PS20-30
Product features
Standard step motor 9 pin interface, the company's motion controller can realize automatic control.
The lifting platform adopts orthogonal reversing mechanism and multi-axis support to ensure smooth movement, large load bearing and long life.
Precision grinding with screw drive, comfortable movement, can be arbitrary lifting and small return.
Stepper motor and screw are connected by high quality elastic coupling, synchronous transmission, good depolarization performance, reduce eccentric disturbance and low noise.
The electric lifting platform is flat and can be used with other kinds of platforms to form a multi-dimensional electric adjustment platform.
With limit function, optional: initial zero function, replace servo motor, add rotary encoder, accept product restructuring and customization.
Product specification
| Item Number | PS20-30 | |
| Structure Specifications | Travel Range | 30 mm |
| Dimension of Platform | 500mm x 300mm | |
| Drive Mechanism | Gear Motor with Grinding Screw | |
| Travel Guide | Slide Rail | |
| Stepper Motor (1.8°) | 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle | |
| Material – Finish | Aluminum Alloy - Black-Anodized | |
| Load Capacity | 100kg | |
| Weight | 35kg | |
| Accuracy Specifications | Minimum Adjust Distance | 0.2μm Non-MS Driver |
| Max Velocity | 10mm/sec | |
| Repeatability | 15μm | |
| Backlash | 4μm | |
| Lost Motion | 3μm | |

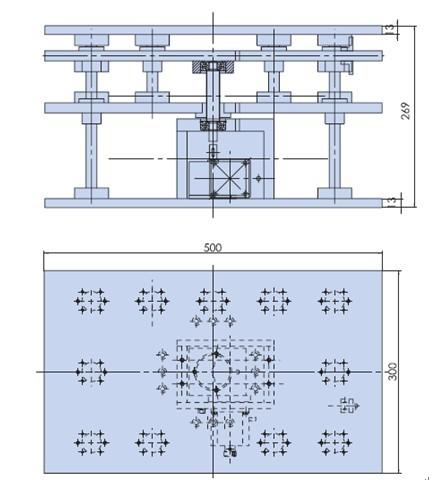

Product Dimension Map
