Precision Electric Corner Stage (Worm and Worm): PJ110-10

The electric angle stage can adjust the inclination of the optical device fixed on it, wear-resistant arc ball guide rail, finish-machined worm gear transmission, high precision and large driving force. Can be used horizontally or vertically.

Product features

1. The rotation center is high, suitable for installing large-sized objects;

2. The two products are designed together, and the rotation centers overlap, which is very suitable for multi-dimensional angle adjustment;

3. Adopt fine grinding worm gear and worm drive mechanism, with high positioning accuracy;

4. The arc-shaped cross roller guide rail is adopted, which can effectively control the deviation of the space center when the angular displacement table rotates;

5. Strict assembly process and inspection methods ensure the consistency of product performance;

6. Standard stepper motor and DB9 interface, you can flexibly choose various controllers of our company.

Product specification

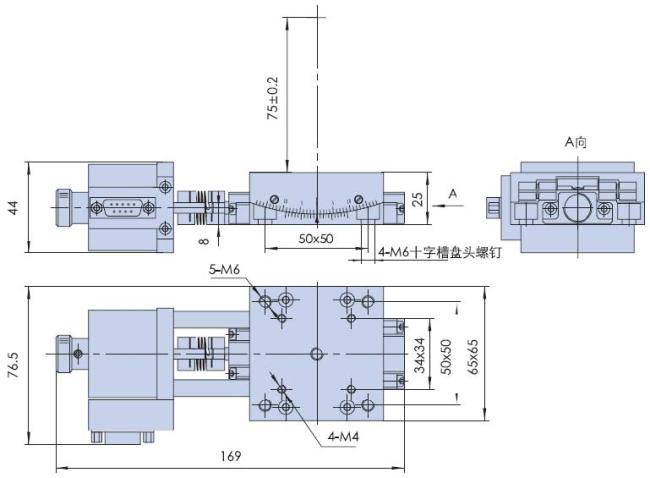

Product diagram

Technical advantages

1. Advanced structure: creative use of curved V-shaped guide rails to ensure comfort and precision during movement;

2. Precise adjustment: It adopts precise worm gear and worm drive, with high sensitivity, good flexibility and self-locking;

3. Strong matching: it can be used in combination with translation table, rotary table, lifting table, etc.;

4. Pair design: The upper and lower angular displacement stages are designed in pairs, which can be used independently or in pairs.
