50mm Travel Motorized Xy Microscope Stage Electric Aluminium Alloy
Electric XY Integral Combinating Platform , 50mm Travel , Motorized XY Stage
Precision electric integral translation stage : PT-XY50
Product description
The XY movement as a whole can be linked with two axes, and the XY stroke is 50MM.
It can be used with the corner of the rotary table and the lifting table.
The electric translation stage basically consists of three parts: the displacement stage, the drive motor, and the controller. The drive motor and controller mainly determine the performance parameters such as drive torque, resolution, acceleration, signal processing, and use functions (such as scanning, circular interpolation). The displacement stage is the heart of the system, and the main technical indicators such as displacement accuracy, stroke, load, stability, applicable environment, and external dimensions are determined by it.
The displacement stage series products are mainly used to adjust the six spatial degrees of freedom such as translation and rotation of the object. Our products include translation table, lift table, rotary table, tilt table, angular position table, electronically controlled translation table, electric rotary table, etc.
The products are divided into many types according to the shape size, stroke, rotation angle, guide rail form, drive mode, etc. Various series, and can be combined arbitrarily, to meet the requirements of space size, bearing size, adjustable number of degrees of freedom, manual and automatic, etc.
Product specification
| Item Number | PT-XY50 | |
| Structure | Travel Range | 50mm |
| Platform | 150mm × 150mm | |
| Screw Specifications | Self-processing screw pair | |
| Travel Guide | H Class Crossed Roller Bearinge | |
| Stepper Motor (step angle) | Domestic 28(1.8°) Motor | |
| Material | Aluminum Alloy - Black-Anodized | |
| Load Capacity | 10Kgs | |
| Weight | 3.2Kgs | |
| Accuracy | Design Resolution |
5μm(Non MS), 0.625μm(8 MS), |
| Max Velocity | 6mm/sec | |
| Repeatability | 40μm | |
| Absolute Accuracy | 50μm | |
| Straightness | 5μm | |
| Moving Parallelism | 15μm | |
| Pitching | 50" | |
| Yawing | 25" | |
| Backlash | 2μm | |
| Lost Motion | 2μm | |
| Others | Scales (-G), Servo Motor (-D) | |

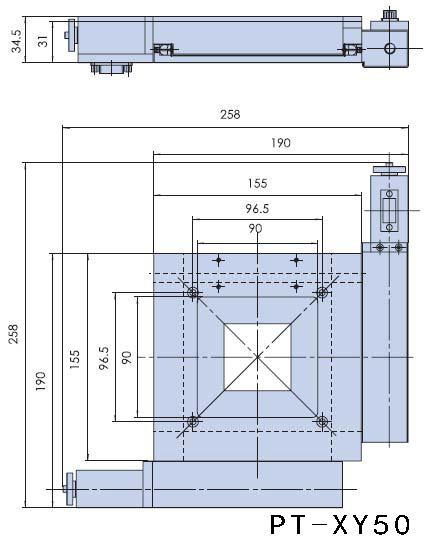

Product Dimension Map
Application field
The precision electric integral translation stage is widely used in scientific research, laser application, automatic measurement and testing equipment, industrial automation and other fields because of its high precision, high speed, large load, large stroke and automation; Automatic displacement control in bacteria, radiation and other environments.
