Microscope Integral Combination Table , 100mm Travel , Motorized XY Stage

Electric integral combination table: PT-XY100G

Product description:

The electric transfer table is propelled by a precision ball screw and driven by a micro stepping motor. The standard electric platform is an open-loop system, and a grating ruler can be added to realize closed-loop feedback control. Adopting the cross ball introduction structure, the bearing capacity is larger, and the stability and smoothness of the movement are better. It is conducive to more precise movement of the sample under the microscope.

Applications:

microscope mounts, ultra-thin two-dimensional translation, and other places where two-dimensional movement is required.

Product specification

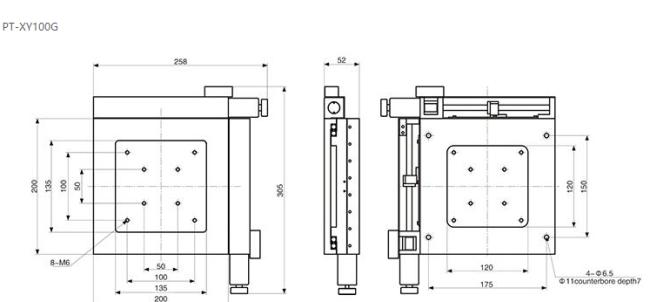

Product Dimension Map

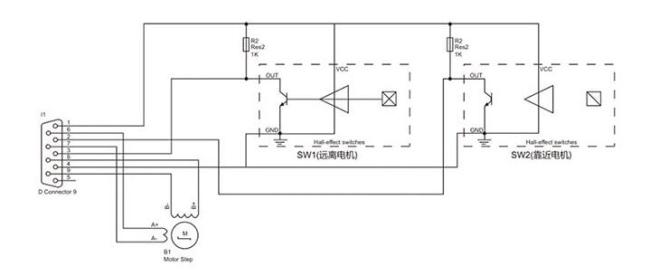

Wiring diagram

Precautions

Pay attention to the inspection during normal use, as well as the regular maintenance. When using the electric translation table, you should have a basic understanding of it before use and power on. After checking some parts that may have problems, make sure that the product is normal, and then you can use it with power. In addition, after use, pay attention to check whether there are any remaining problems. And after a period of time, it is necessary to carry out maintenance in time. Even if there is no problem in the use of the equipment during the usual use, it should be repaired regularly.

PDV is a professional manufacturer of optoelectronic instruments integrating optics, precision instruments and electronic numerical control technology. The company's main business scope is manual and electric displacement stage, lifting stage, angle stage, electrorotation stage, electric multi-dimensional combination stage, precision optical adjustment frame, optical fiber adjustment coupling, optical bracket base, optical table, spectrometer, optical lens and other series of products. R&D, production, sales and after-sales service.
