Product description
The sliding table and base are made of aluminum alloy, with high rigidity, high precision, low price, small volume, light weight, aluminum alloy structure and modular design. The sliding table and base are installed into linear guide rail after passing through the anode. The base is matched with the sliding table to realize high rigidity and load capacity. The displacement of load is small, and it can still maintain high stability for the purpose of carrying quality or external load change. The manual module adopts rolling structure, with small friction and high positioning accuracy, which can be used for a long time.
Product specification
Specifications | PT120 |
texture of material | Aviation aluminum 6061 |
Screw rod | 1605(16 diameter；05 Lead) |
guide | 16mm |
bearing | Horizontal ≤ 150kg, vertical 75kg (the longer the stroke, the smaller the load) |
Repeat positioning accuracy | ±0.03mm |
Available styles | Electric and manual (consult customer service for details) |
Applicable motor | Stepper motor, closed-loop motor, servo motor |
Applicable accessories | Electronic scale, photoelectric switch, proximity switch, grating ruler, dustproof plate, locking device, hand wheel |
Collocation | Cross, T-shaped, three axis, gantry |

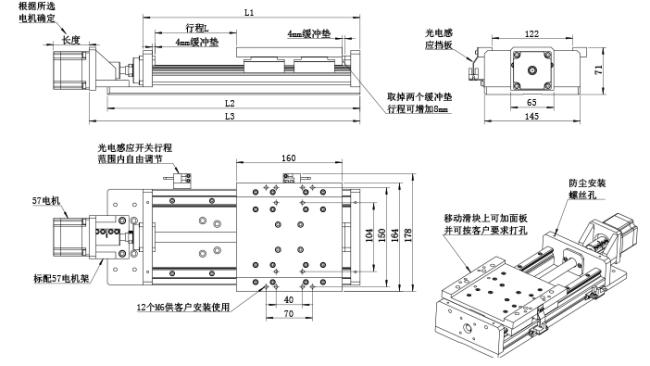

Product Dimension Map
Trip | 123 | 223 | 323 | 423 | 523 | 623 | 723 | 823 | 923 | 1123 |
L1 | 328 | 428 | 528 | 628 | 728 | 828 | 928 | 1028 | 1128 | 1228 |
L2 | 382 | 482 | 582 | 682 | 782 | 882 | 982 | 1082 | 1182 | 1282 |
L3 | 412 | 512 | 612 | 712 | 812 | 912 | 1012 | 1112 | 1212 | 1312 |
