High Strength Aluminum Alloy Manual Linear Stage Black Anodizing
Simple Linear Guide For X Axis Feed Screw Of Manual Slider , Manual Linear Stage PT-80
PT80 manual linear slide table, the main material of the product is made of high-strength aluminum alloy, the surface is black anodized, and the guide bearing is made of high-carbon chromium bearing steel, which has a strong load capacity. 304 stainless steel feed screw to ensure more stable operation. With scales on the side, data reading is very convenient. The table top and base are distributed with installation holes with standard hole spacing, which is convenient for installation and combination. It can be used alone, or can be used as an XY two-dimensional mobile stage, or an XYZ three-dimensional mobile stage.
Product parameters:
|
Subject |
Guide axle |
Handwheel |
Feed screw |
||||
|
material quality |
surface treatment |
material quality |
hardness |
surface treatment |
Texture of material |
surface treatment |
material quality |
|
AI6063 |
black anodizing |
GCr15(Bearing steel) |
HRC56 |
Hardness chromium |
AI6063 |
clear anodizing |
0Cr18Ni9(304) Stainless steel |
Product model details:
|
Model |
Slide table (mm) |
Max travel (mm) |
Z(mm) |
A(mm) |
B(mm) |
Load tolerance level (N) |
weight(g) |
|
PT80-50 |
80*80 |
50 |
25 |
100 |
170 |
196 |
2.2 |
|
PT80-100 |
100 |
50 |
150 |
220 |
196 |
2.4 |
|
|
PT80-150 |
150 |
75 |
200 |
270 |
196 |
2.8 |

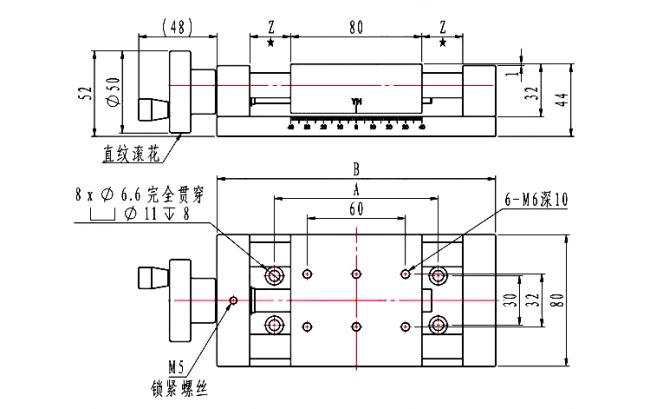

Product Dimension Map
Manual Linear Stage , Simple Linear Guide For X Axis Feed Screw Of Manual Slider PT-80
The daily maintenance of the manual linear slide table is very important. After each use of the manual linear slide table, if minor changes are found, timely coordinate and communicate with the technical department of the manufacturer to make a correct and reasonable plan. , so that the life of the manual linear slide table will decrease.
Product features:
• the main material is high-strength road alloy, with high stability and good corrosion resistance.
• high precision feed screw ensures that the sensitivity, straightness and other key indicators of the product reach the domestic leading level.
• strong load capacity, 50mm, 100mm and 150mm travel options, moderate size, suitable for most application environments.
Application areas:
The manual linear slide table can provide customers with ordinary translation adjustment, and can also provide fine adjustment to micron level and nanometer level. It can be applied to optical fiber adjustment, optical engine adjustment system, biological engineering, microelectronics and other fields.
