Two-Axis Translation Stage Precision Aluminum XY Axis Slide Manual Linear Stage

Product description

X,Y two dimensional adjustment, stroke 12.5mm, table size 125mm*125mm, the use of high precision cross roller guide rail, comfortable movement, smooth, high precision, compact structure design, ultra-thin, easy to use, in a small space to achieve two axis translation adjustment.

Product features

■ Compact structure design, easy to use, two axis translation adjustment in a small space.

■ The integrity of the structure, more easily through processing to ensure the parallelism and perpendicularity of the two axis movement.

■ The left and right hand are designed in pairs, and the micrometer head of the two horizontal axes is installed on the same horizontal plane, which is convenient for operation.

■ Cross roller guide rail, comfortable movement, stable, high precision, to ensure small straightness, yaw, pitch of each axis

■ Micrometer head drive, spring reset, quantitative reading, eliminate null loop, to achieve high adjustment accuracy.

Product specification

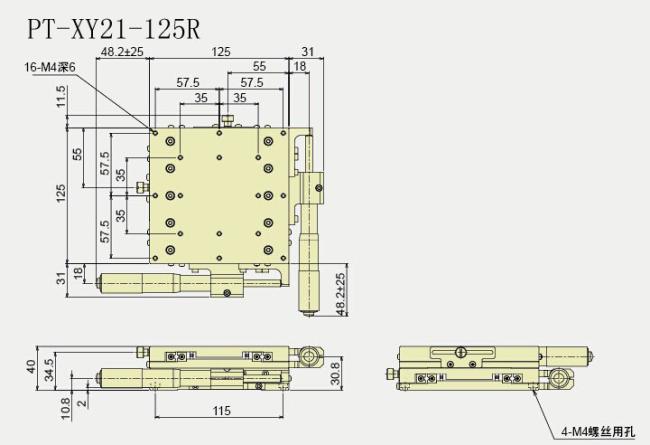

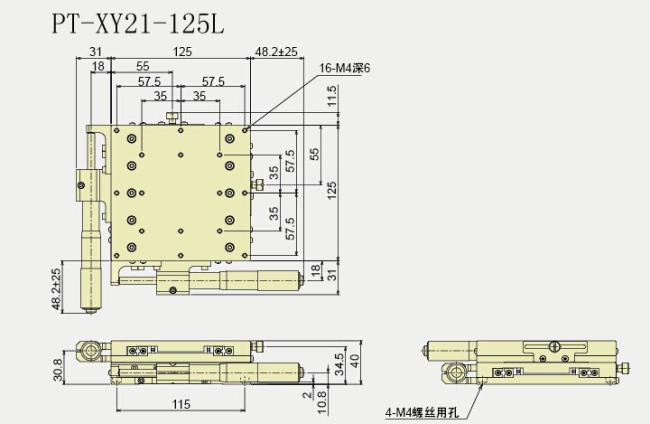

Product Dimension Map

Application area

Microelectronics, optical communication, colleges and universities, fiber laser and other fields.
