X Axis Manual Linear Stage , Manual Displacement Statio PT - SD104P
X Axis Manual Linear Stage , Manual Displacement Statio PT-SD104P
Product features
• Cross roller guide rail, strong load capacity, good durability.
• The mounting surface of guide rail adopts precision grinding process, which makes the product have high sensitivity and high motion precision.
• The main material is hard aluminum alloy, with oxidized black surface treatment, high strength, good wear resistance and beautiful appearance.
• Short lead time, good matching and high cost performance.
• Can be used in a single or multi-dimensional combination.
Product parameters:
|
Item Number: |
PT-SD104P |
|
Travel Range |
13mm |
|
Actuator Type |
Fine Adjustment Screws in Center |
|
Travel Guide |
Ball Bearings |
|
Platform |
34mm × 34mm |
|
Parallelism |
30μm |
|
Straightness |
20μm |
|
Driving Parallelism |
30μm |
|
Minimum Scale |
10μm/0.5μm |
|
Positional Accuracy |
3μm/1.5μm |
|
Minimum Adjust Distance |
2μm/0.1μm |
|
Pitching |
80” |
|
Yawing |
60″ |
|
Material – Finish |
Aluminum Alloy - Black-Anodized |
|
Load capacity |
2Kgs |
|
Weight |
0.05kg |

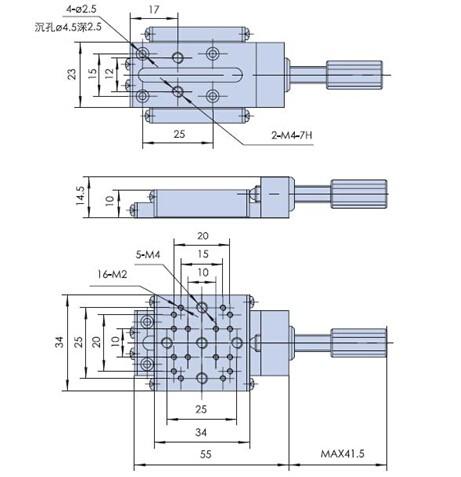

Product Dimension Map
Selection factors of manual slide table:
(1) Confirm the use environment of the slide: the use environment is generally divided into general environment and dust-free environment, therefore, in the selection process, you can choose semi-sealed or fully sealed type according to the environment and so on.
(2) Confirm the speed of the slide table: the speed of the slide table is also affected by the material and type, such as belt type, ball screw type, different speed requirements, different accuracy.
(3) Confirm the effective stroke of the slide table: for example, the belt type module is suitable for long stroke, and the screw type module is suitable for short stroke.
(4) confirm the load condition of the slide table: the load capacity of the slide table directly affects the selection of the slide table, and the service life of the slide table, friction and so on.
(5)Confirm the installation mode of the slide platform: follow up the installation mode of the module and select the suitable model.
