X Axis Manual Linear Stage, Optical Displacement Platform PT-SD102P

Precision manual translation table: PT-SD102P

PT-SD102PS with locking function

Low-Profile Dovetail Linear Stages, 50mm/100mm Travel

Product Description

Precision manual translation table PT-SD102P is a screw nut type manual translation table withdrawn by PDV. The main material of the product is aluminum alloy, the surface is oxidized and blackened, and the dovetail auxiliary guide rail is used for guidance, with strong load capacity. It is driven by grinding lead screw. The grinding lead screw has small pitch, high sensitivity, scale on the side and locking function. It has complete functions and easy to use.

Product Features

■ Guide rail for dovetail pair.

■ Displacement adjustment is driven by fine grinding screw.

■ Fine grinding screw is placed in the center of the translation table, easy to operate.

■ Mounting holes with standard spacing on the table and base for easy installation and combination.

■ It can be composed of multi-dimensional adjustment rack or multi-dimensional adjustment with other series products.

This product is used in optical instruments, measuring devices, inspection devices, semiconductor manufacturing devices, testing machines, microscopes, handling machines, processing machines, medical machines, printing machines and others.

Product parameters:

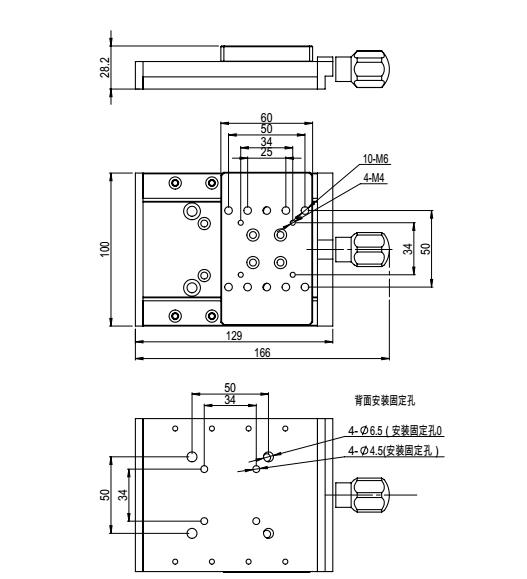

PT-SD102P(50mm) Product Dimension Map

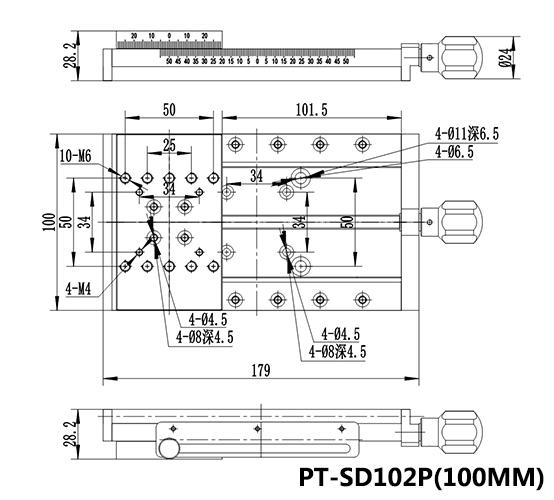

PT-SD102P(100mm) Product Dimension Map
