X Axis Manual Linear Stage , Manual Displacement Station , Manual Platform PT110-50-100H

PT110-50-100H manual displacement slide table is a light weight high-precision linear movement displacement table using cross roller guide rail on aluminum alloy body. The platform surface is square (100*100mm). At the same time, the differential head used for fine tuning can be adjusted.

Product features:

■ Hard aluminum material precision machining, anodized surface dyed black.

■ High precision cross roller guide rail, higher precision, larger load bearing, long life.

■ High precision base and table ensure the straightness, yaw, pitch and movement parallelism of the platform.

■ Displacement adjustment is driven by micrometer head or differential micrometer head.

■ High precision and small resolution micrometer, micro displacement adjustment at nanometer level.

■ The micrometer head is placed on the side of the translation platform, and the structure is more compact.

■ The use of spring return, with the elimination of axial clearance.

■ Mounting holes with standard spacing on the table and base for easy installation and combination.

■ It can be composed of multi-dimensional adjustment table with other series of displacement table.

■ It is optional to add grating ruler to display tiny displacement.

Product parameters:

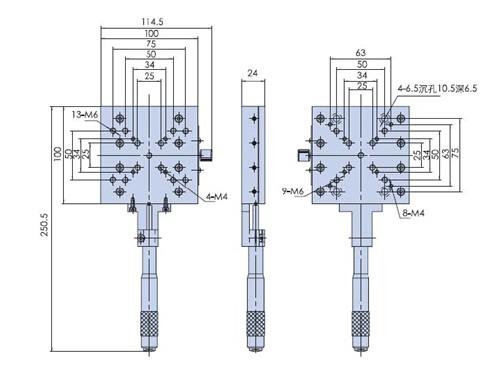

Product Dimension Map

Application scope:

The products are used in optical apparatus, measuring apparatus, inspection apparatus, semiconductor manufacturing apparatus, testing machine, microscope, conveyor, processing machine, medical machine, printing machine and others.
